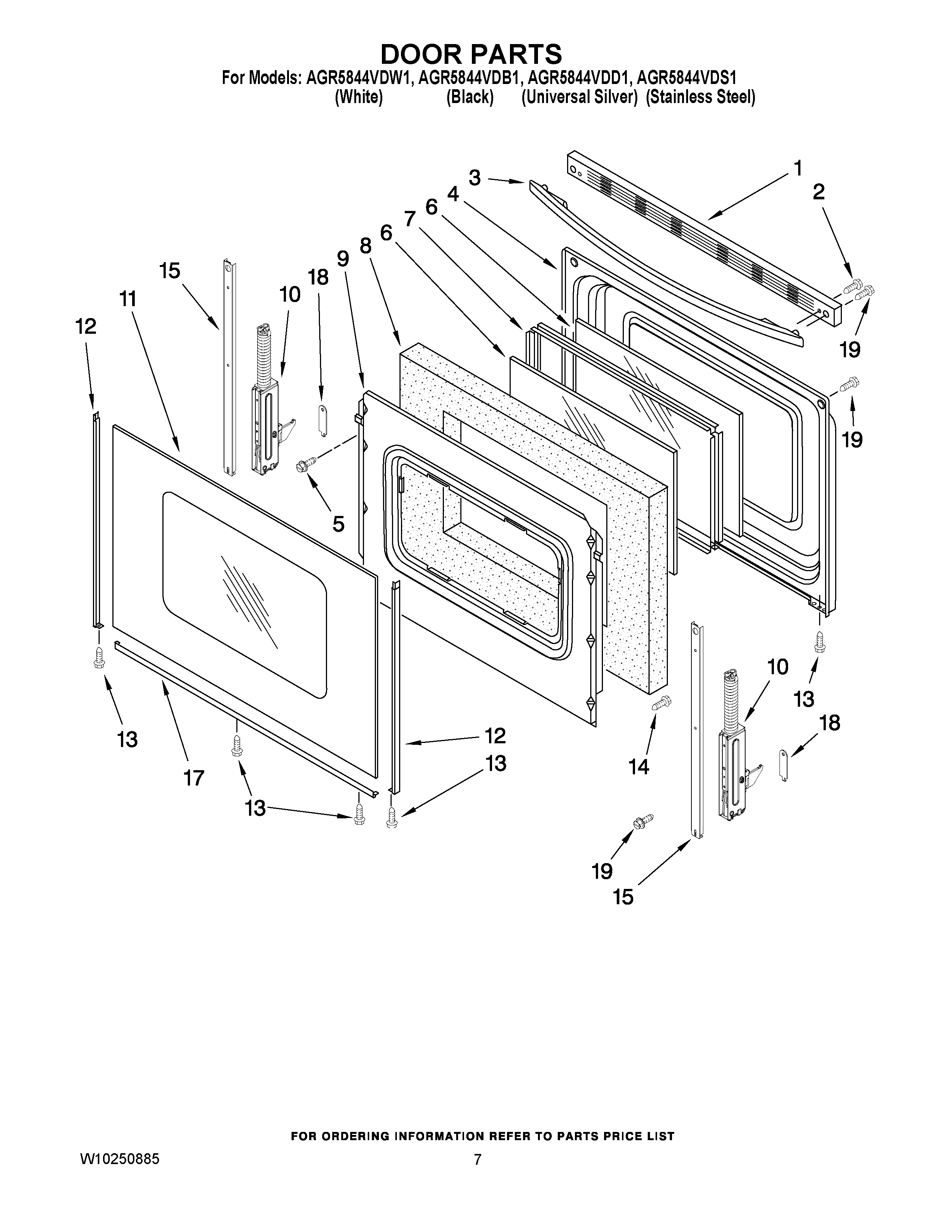

AGR5844VDB1 05 – DOOR PARTSadmin2025-04-26T12:26:39+00:00AGR5844VDB1 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10144869 |
| 1 | Trim, Top (Black) |
| 2 | SCREW |
| 3 | MAY W10144889 |
| 3 | MAY W10144888 |
| 3 | MAY W10144890 |
| 4 | LINER, DOOR |
| 5 | SCREW |
| 6 | GLASS, INNER |
| 7 | MAY 3186289 |
| 8 | MAY 8272618 |
| 9 | RETAINER, INSULATION |
| 10 | Hinge, Door |
| 11 | Glass, Outer (White) |
| 11 | Glass, Outer (Black) |
| 12 | TRIM SIDE (STAINLESS LH) |
| 12 | TRIM SIDE (STAINLESS RH) |
| 12 | TRIM, SIDE (WHITE (LEFT)) |
| 12 | TRIM, SIDE (WHITE (RIGHT)) |
| 12 | TRIM, SIDE (BLACK, RIGHT HAND) |
| 12 | TRIM, SIDE (BLACK, LEFT HAND) |
| 13 | MAY 3196160 |
| 14 | SCREW |
| 15 | STRAP, DOOR |
| 17 | TRIM, LOWER (BLACK) |
| 17 | TRIM, LOWER (WHITE) |
| 17 | TRIM, LOWER (UNIVERSAL SILVER) |
| 18 | Clip,Door Mntg(2) |
| 19 | MAY W10031780 |
