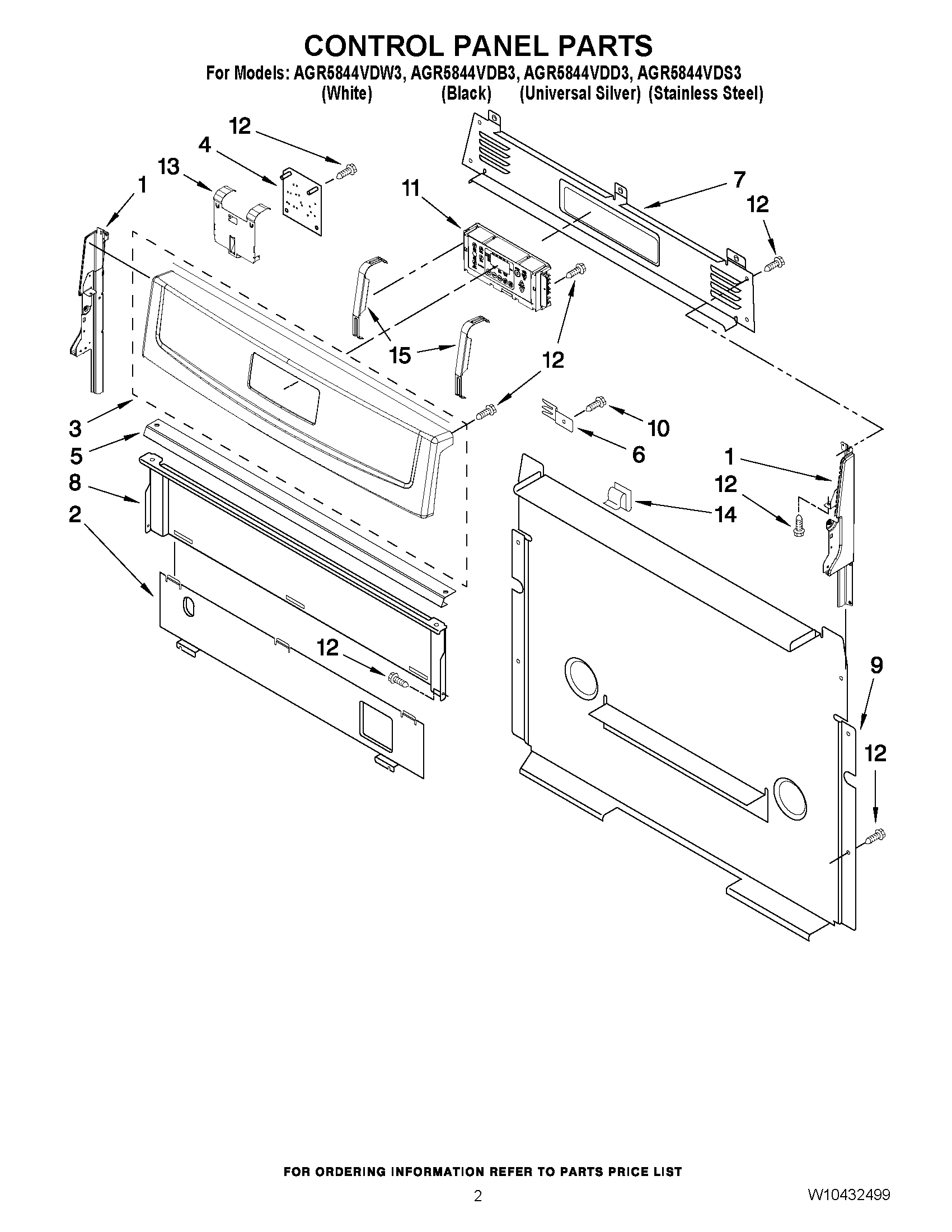

AGR5844VDB3 02 – CONTROL PANEL PARTS

AGR5844VDB3 02 – CONTROL PANEL PARTS

Written by

in

AGR5844VDB3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2SHIELD, HEAT
3MAY W10170023
3Panel, Console (Stainless Model)
3MAY W10170024
3MAY W10170022
4MAY W10331686
5BRKT-MNTG,CONSOLE
6BRACKET, REAR COOKTOP
7COVER, UPPER
8SHIELD, HEAT
9COVER, BACK
10SCREW
11MAY W10271731
11MAY W10271732
12SCREW
13Brkt-Mntg, DSI
14MAY 8273564
15BRACKET, MOUNTING, EOC
