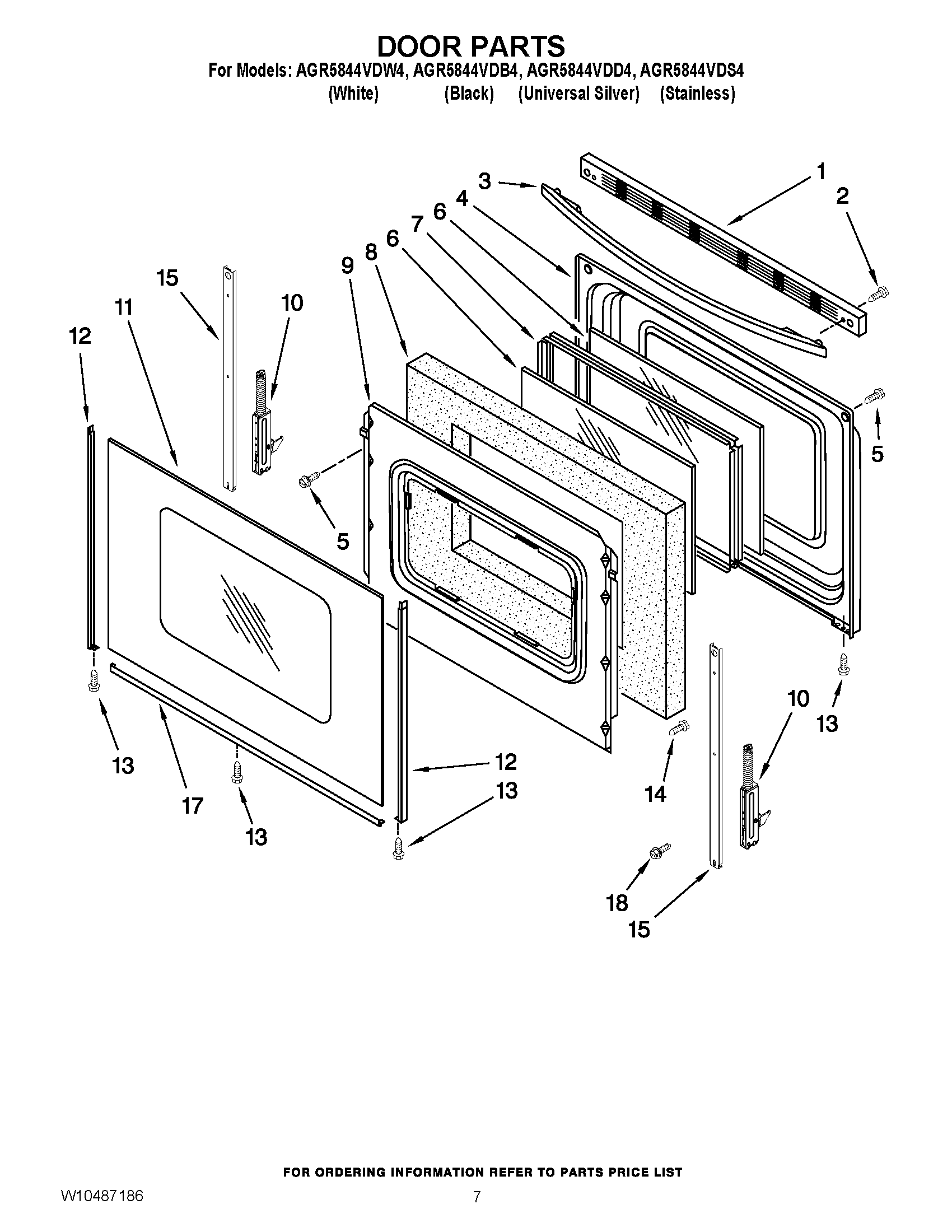

AGR5844VDB4 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (WHITE)
1TRIM, TOP (BLACK)
2SCREW
3MAY W10144888
3MAY W10144889
3MAY W10144890
4LINER, DOOR
5SCREW
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
10HINGE, DOOR (PASSIVE)
11Glass, Outer (Black)
11Glass, Outer (White)
11GLASS, OUTER (STAINLESS)
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (WHITE (RIGHT))
13MAY 3196160
14SCREW
15STRAP, DOOR
17TRIM, LOWER (BLACK)
17TRIM, LOWER (WHITE)
17TRIM, LOWER (UNIVERSAL SILVER)
18MAY W10031780
