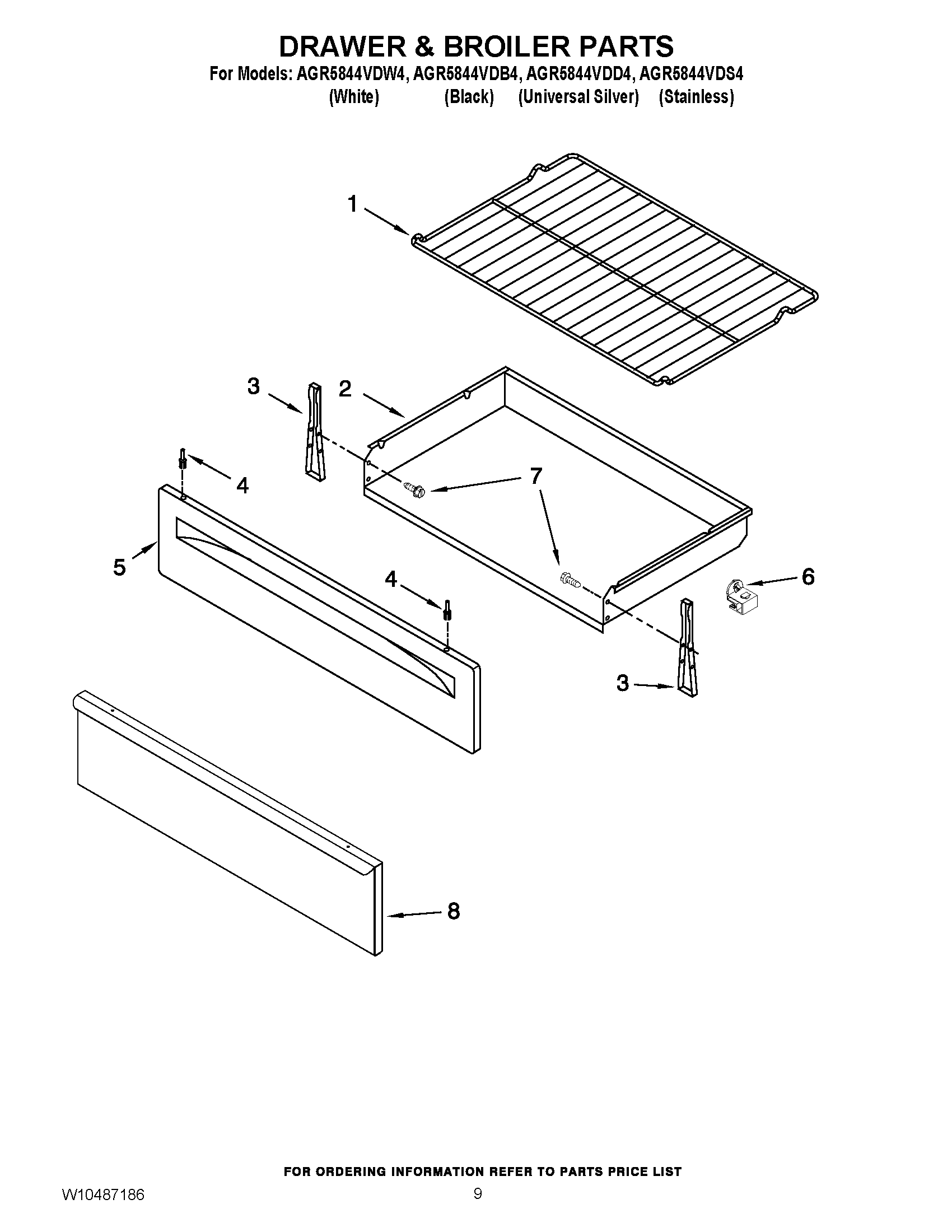

AGR5844VDB4 06 – DRAWER & BROILER PARTS

Written by

Products

Position	Product
1	RACK, OVEN
2	MAY W10300032
3	BRACKET, DRAWER MOUNTING (WHITE MODEL)
3	BRACKET, DRAWER MOUNTING (STAINLESS MODEL)
4	RIVET, PUSH (BLACK)
4	RIVET, PUSH (WHITE)
5	PANEL, DRAWER FRONT (WHITE)
5	PANEL, DRAWER (BLACK)
5	MAY 9761693
6	GLIDE, REAR DRAWER
6	GLIDE, DRAWER
7	SCREW
8	MAY W10244872
