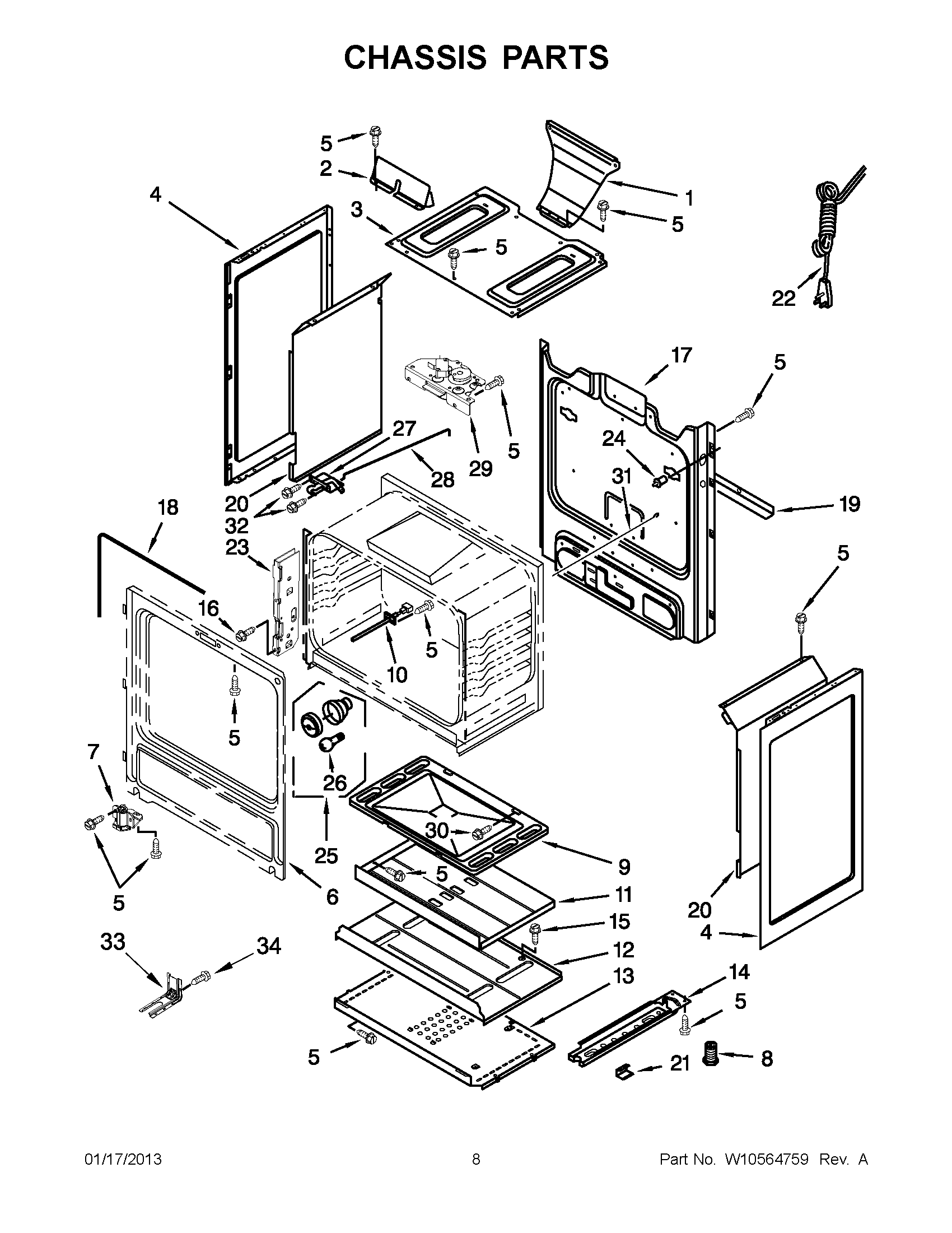

AGR5844VDB5 04 – CHASSIS PARTS

Products

Position	Product
NI	W11688737 Whirlpool Insulation
NI	W11684915 Whirlpool Insulation
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	W11379351 Whirlpool Burner Box
4	W11730303 Whirlpool Side Panel
4	WPW10575396 Whirlpool Side Panel
5	SCREW
6	CABINET (NOT A SERVICEABLE PART)
7	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
8	WPW10058460 Whirlpool Appliance Levelling Leg
9	WP3195097 Whirlpool Oven Bottom
10	WPW10181986 Whirlpool Oven Sensor
11	8053967 Whirlpool Oven Heat Baffle
12	8053969 Whirlpool Heat Shield
13	8053968 Whirlpool Oven Heat Shield
14	WPW10306546 Whirlpool Base Rail
15	WP7101P246-60 Whirlpool Screw
16	W10777162 Whirlpool Screw
17	BACK, MAIN
18	W11542153 Whirlpool Door Gasket
19	W10435470 Whirlpool Brace
20	9761448 Whirlpool Oven Retainer
20	9761449 Whirlpool Oven Retainer
21	W10137382 Whirlpool Clip
22	WP9757891 Whirlpool Power Cord
23	W10647259 Whirlpool Hinge Receiver
24	WP9757262 Whirlpool Light Switch
25	W11594027 Whirlpool Range Oven Light Socket
26	RANGE ONLY 40W 120V APPL BULB
27	WP9761013 Whirlpool Door Latch
28	W10078370 Whirlpool Latch Rod
29	WPW10107820 Whirlpool Door Latch
30	W10379120 Whirlpool Screw
31	9757239 Whirlpool Oven Door Rod
32	W11169708 Whirlpool Screw
33	W11447673 Whirlpool Range Tip Anchor
34	SCREW, ANTI-TIP KIT
