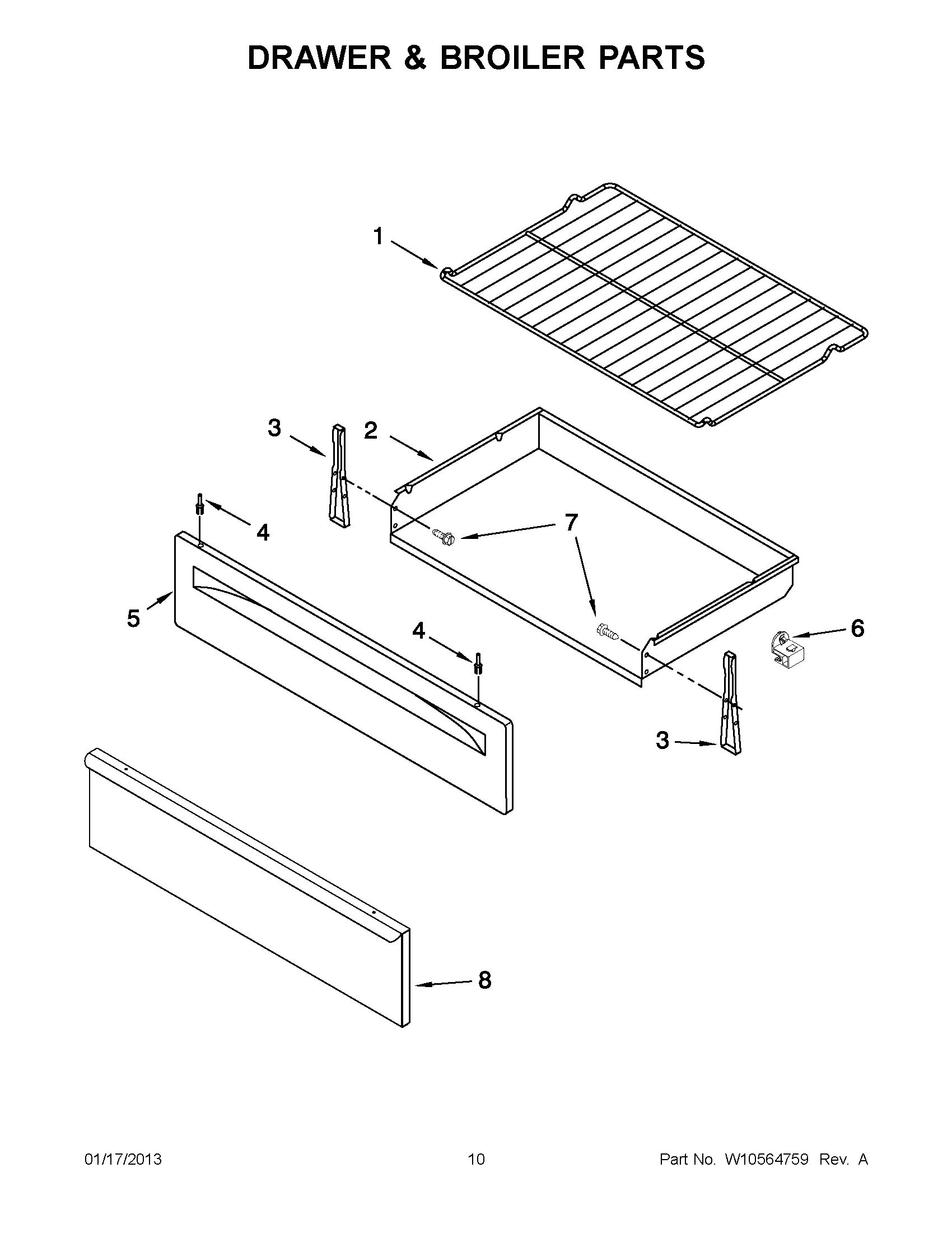

AGR5844VDB5 05 – DRAWER & BROILER PARTS

AGR5844VDB5 05 – DRAWER & BROILER PARTS

Written by

in

AGR5844VDB5 05 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2W10813962 Whirlpool Utility Drawer
3BRKT-MNTG
3W10462911 Whirlpool Bracket Mounting
4WP3196813 Whirlpool Rivet
4WP3196814 Whirlpool Rivet
5W11226776 Whirlpool Drawer Panel
5W11230486 Whirlpool Drawer Panel
5W11230490 Whirlpool Drawer Panel
6GLIDE-RANGE DRAWER KIT
7WP3196175 Whirlpool Screw
8PANEL, DRAWER (STAINLESS ONLY)
