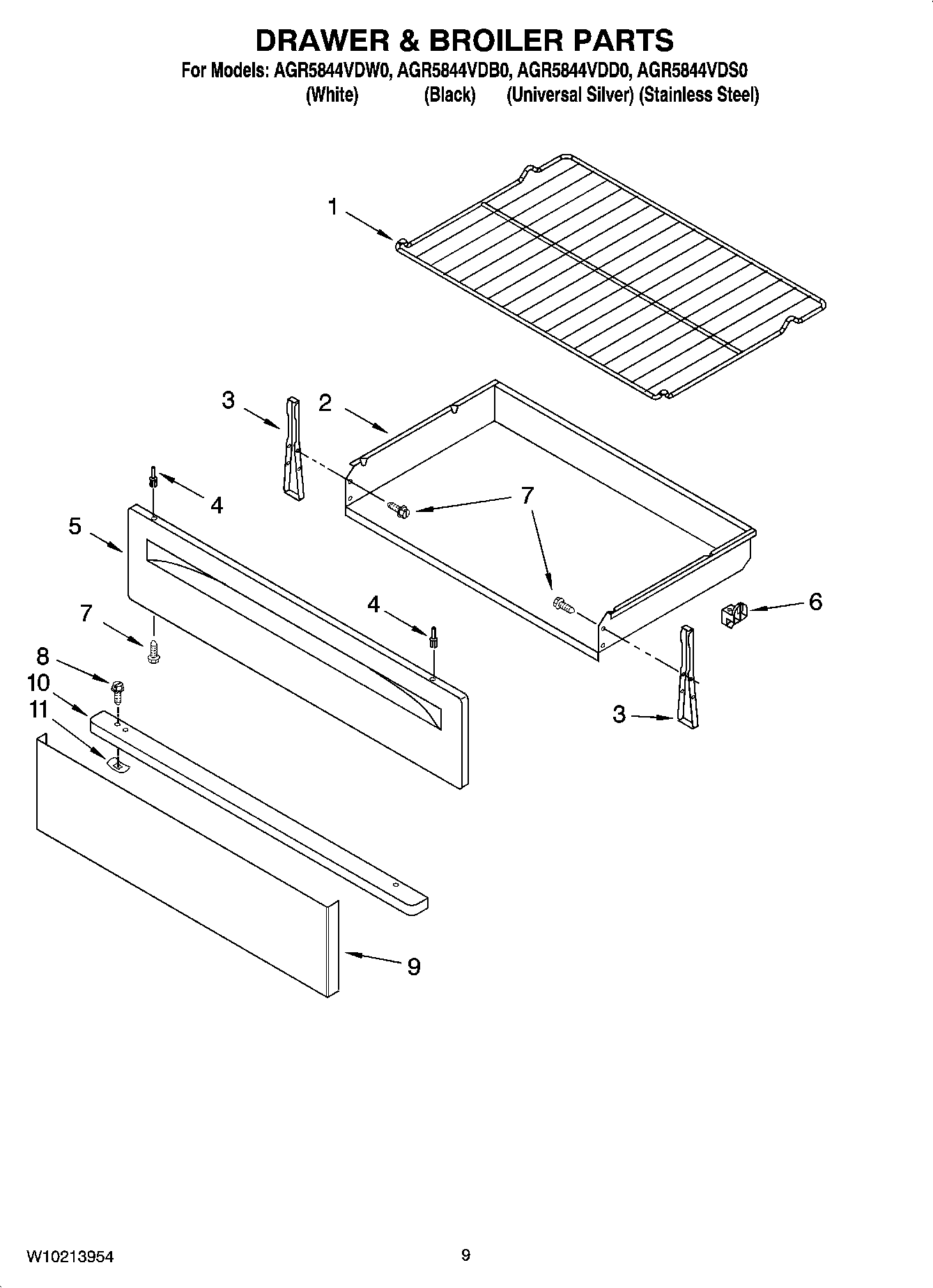

AGR5844VDD0 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

Position	Product
NI	CLIP, WIRE
NI	Harness, Main (EOC Pyro)
NI	SCREW
NI	MAY W10174458
NI	CLIP, WIRE
NI	CLIP, HARNESS
NI	Harness, Wire (Bake/Broil)
NI	Harness, Wire (Ground)
NI	CLIP, HARNESS
NI	REFINISHING MATERIAL (GREASE)
NI	MAY W10017440
NI	SCREW
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE))
NI	INSULATION (2-1/2" X 22" X 120")
NI	ACCESSORY PARTS, ALUMINUM FOIL
NI	REFINISHING MATERIAL, OVEN LINER TOUCH UP PAINT
NI	INSULATION (1-1/2" X 24" X 120")
NI	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	ACCESSORY PARTS, GRID, BROILER PAN AND
NI	PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	MAY W10179196
2	MAY 9761031
3	Bracket, Drawer(2)
4	RIVET, PUSH (BLACK)
4	RIVET, PUSH (WHITE)
5	MAY 9762180
5	MAY W10022090
5	MAY W10022100
6	GLIDE, DRAWER
7	Screw (Black)
8	SCREW
9	Panel(Stls. Model)
10	Handle(Stls.Model)
11	CLIP(STLS.MODEL)
