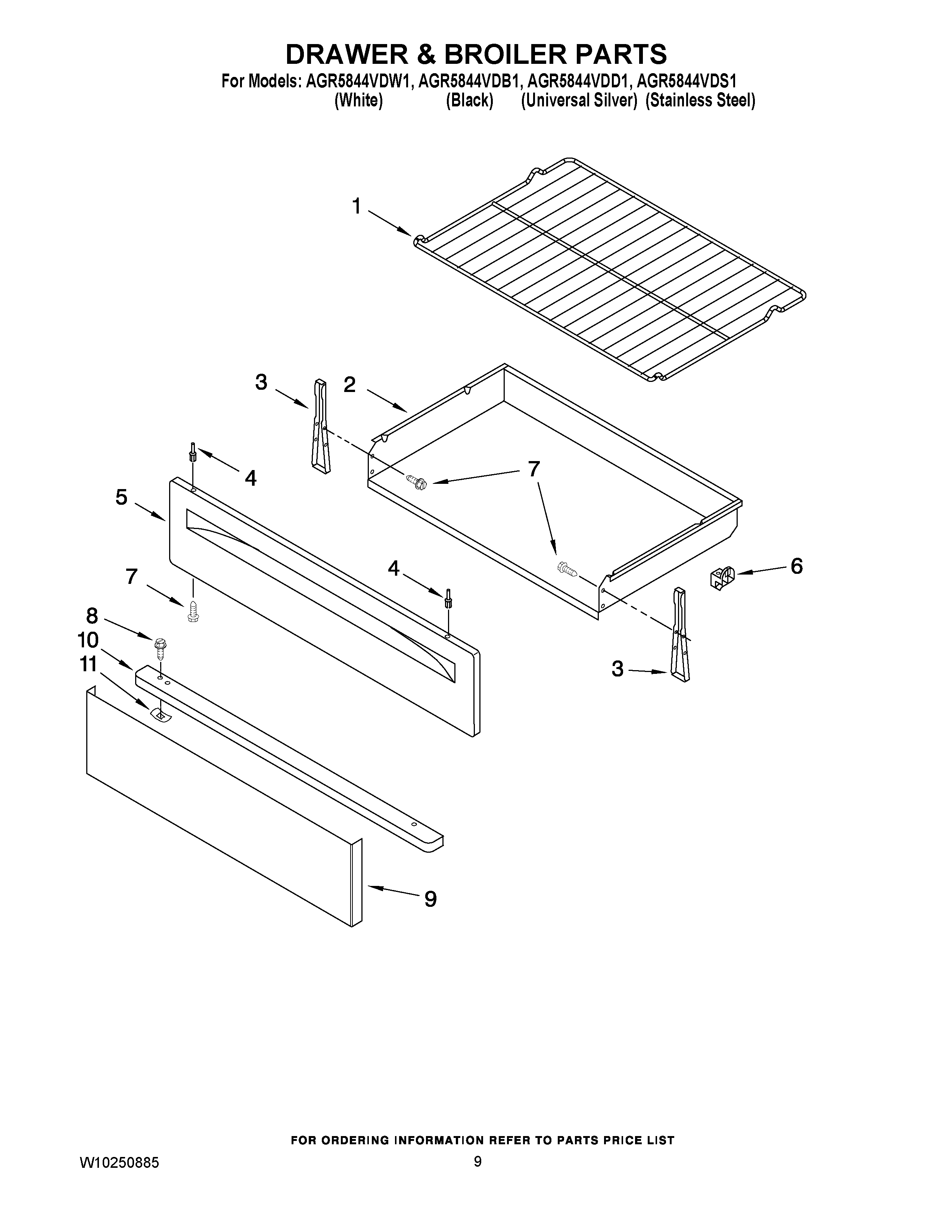

AGR5844VDD1 06 – DRAWER & BROILER PARTS

AGR5844VDD1 06 – DRAWER & BROILER PARTS

Written by

in

AGR5844VDD1 06 – DRAWER & BROILER PARTS

Products

PositionProduct
1MAY W10179196
2MAY 9761031
3Bracket, Drawer(2)
4RIVET, PUSH (WHITE)
4RIVET, PUSH (BLACK)
5MAY 9762180
5MAY W10022100
5MAY W10022090
6GLIDE, DRAWER
7Screw (Black)
8SCREW
9Panel(Stls. Model)
10Handle(Stls.Model)
11CLIP(STLS.MODEL)
