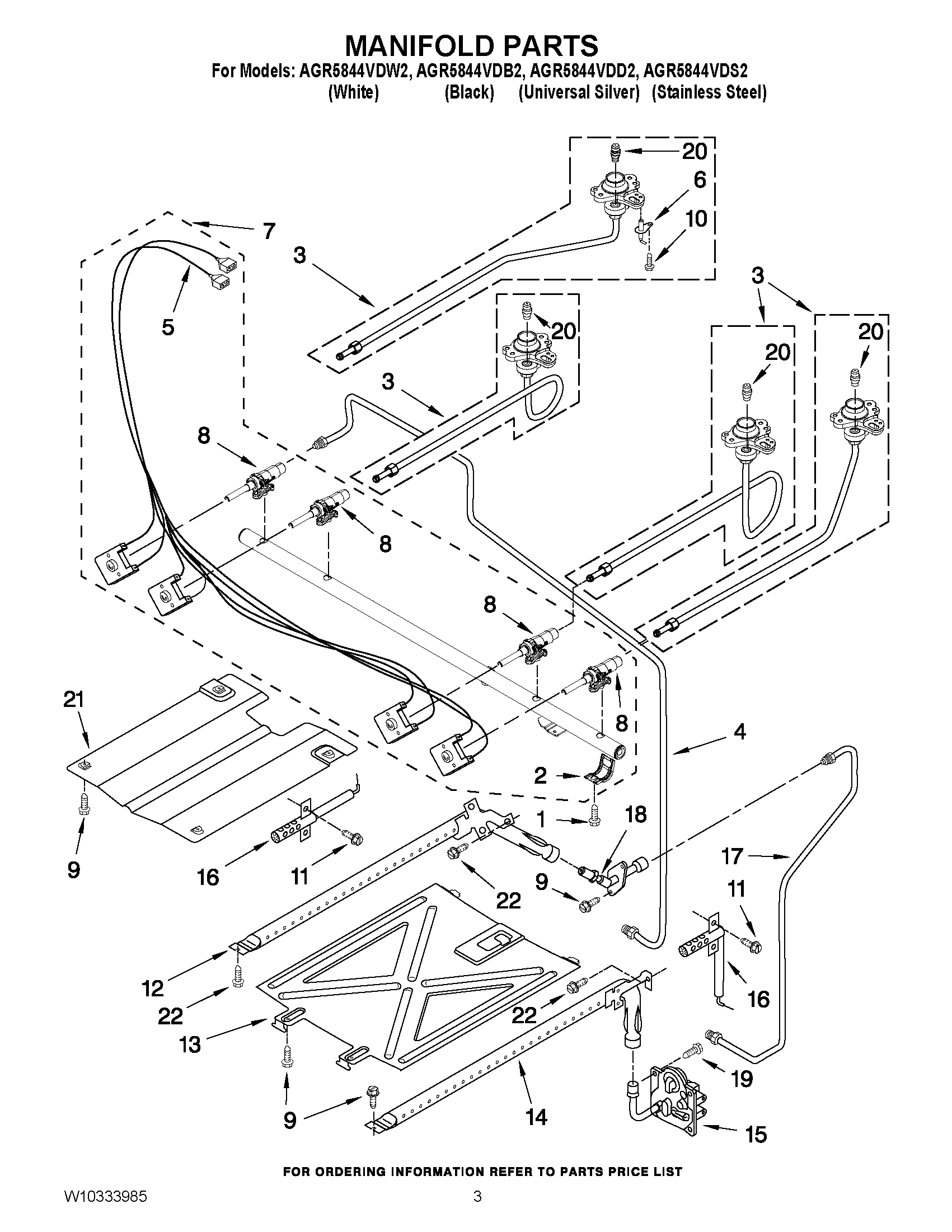

AGR5844VDS2 03 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (KIT OF 4)
1	SCREW, VALVE
2	BRACKET, SADDLE VALVE
3	MAY W10175219
3	TUBING, BURNER (W/ORIFICE (LEFT REAR))
3	TUBING, BURNER (W/ORIFICE (RIGHT REAR))
3	Tubing, Burner W/Orifice (Right Front)
4	TUBING (MANIFOLD TO REGULATOR)
5	MAY W10295998
6	Electrode (4)
7	MAY W10314242
8	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (RIGHT REAR)
9	Screw
10	MAY 8273062
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	Valve/Regulator
16	Igniter (Broil)
16	ELECTRODE, BAKE
17	MAY 8272222
18	MAY 3186489
19	SCREW
20	ORIFICE, BURNER (12K) (RIGHT FRONT)
20	ORIFICE, NATURAL (5K) (RIGHT REAR)
20	ORIFICE, NATURAL (9.5K) (LEFT REAR)
21	SPREADER, FLAME (BROILER)
22	SCREW
