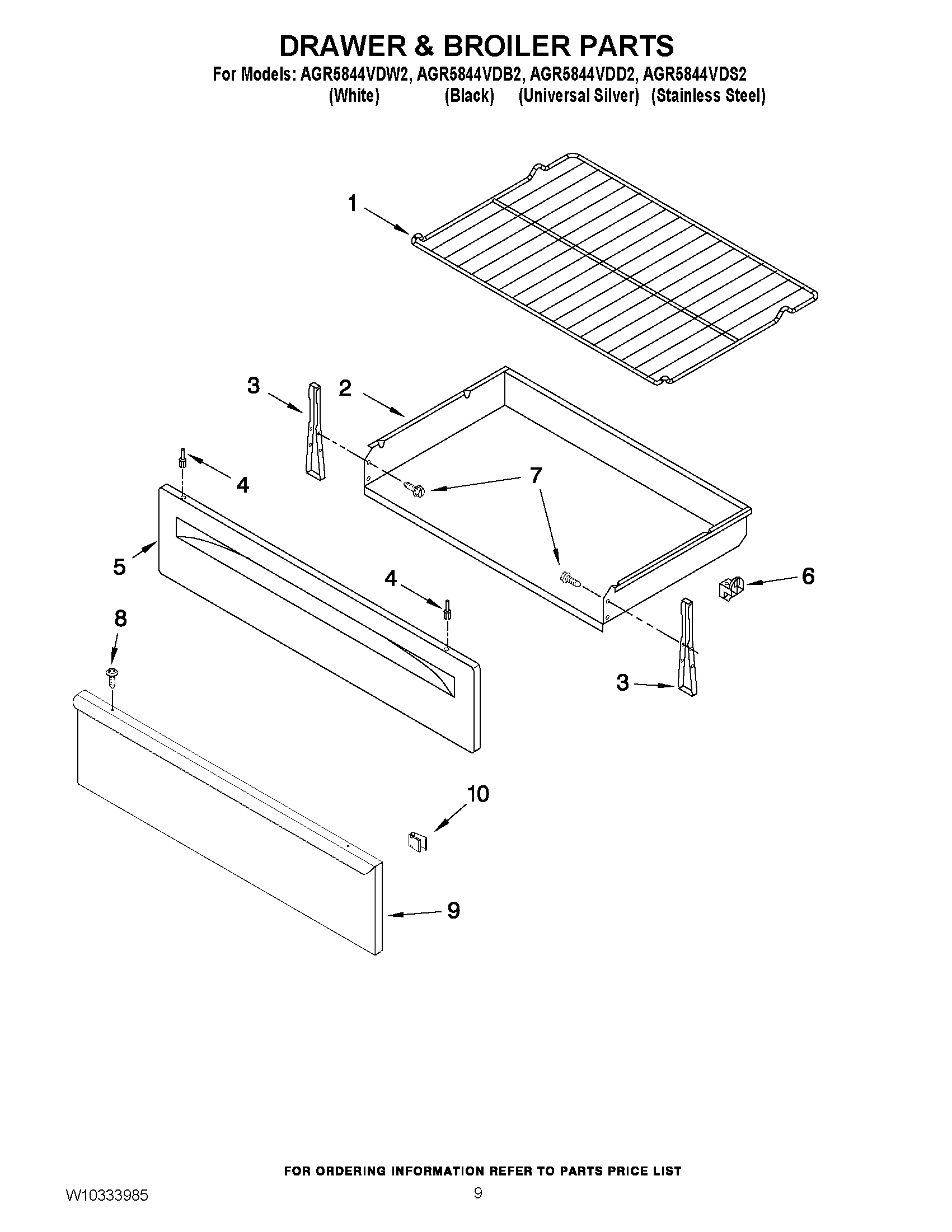

AGR5844VDS2 06 – DRAWER & BROILER PARTS

AGR5844VDS2 06 – DRAWER & BROILER PARTS

Written by

in

AGR5844VDS2 06 – DRAWER & BROILER PARTS

Products

Position	Product
1	RACK, OVEN
2	MAY W10296838
3	Bracket, Drawer(2)
3	BRACKET, DRAWER (SS ONLY)
4	RIVET, PUSH (BLACK)
4	RIVET, PUSH (WHITE)
5	PANEL, DRAWER FRONT (WHITE)
5	MAY 9761693
5	MAY W10022100
6	GLIDE, DRAWER
7	SCREW
8	SCREW
9	MAY W10244872
10	MAY W10292395
