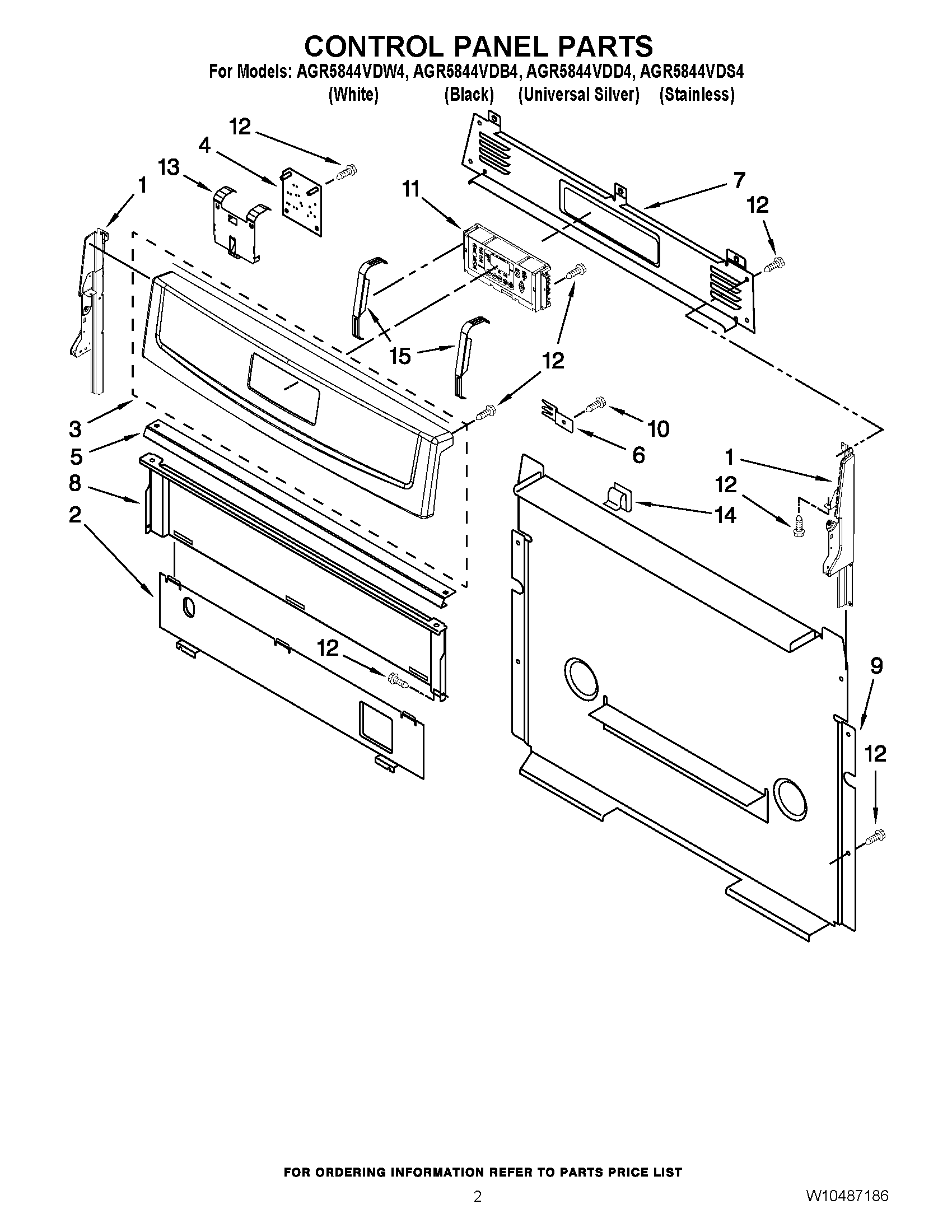

AGR5844VDS4 02 – CONTROL PANEL PARTSadmin2025-04-26T12:28:24+00:00AGR5844VDS4 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (BLACK (LEFT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 1 | ENDCAP (BLACK (RIGHT)) |
| 1 | ENDCAP (WHITE (RIGHT)) |
| 2 | SHIELD, HEAT |
| 3 | MAY W10170023 |
| 3 | Panel, Console (Stainless Model) |
| 3 | MAY W10170024 |
| 3 | MAY W10170022 |
| 4 | MAY W10331686 |
| 5 | BRKT-MNTG,CONSOLE |
| 6 | BRACKET, REAR COOKTOP |
| 7 | COVER, UPPER |
| 8 | SHIELD, HEAT |
| 9 | COVER, BACK |
| 10 | SCREW |
| 11 | MAY W10271731 |
| 11 | MAY W10271732 |
| 12 | SCREW |
| 13 | Brkt-Mntg, DSI |
| 14 | MAY 8273564 |
| 15 | BRACKET, MOUNTING, EOC |
