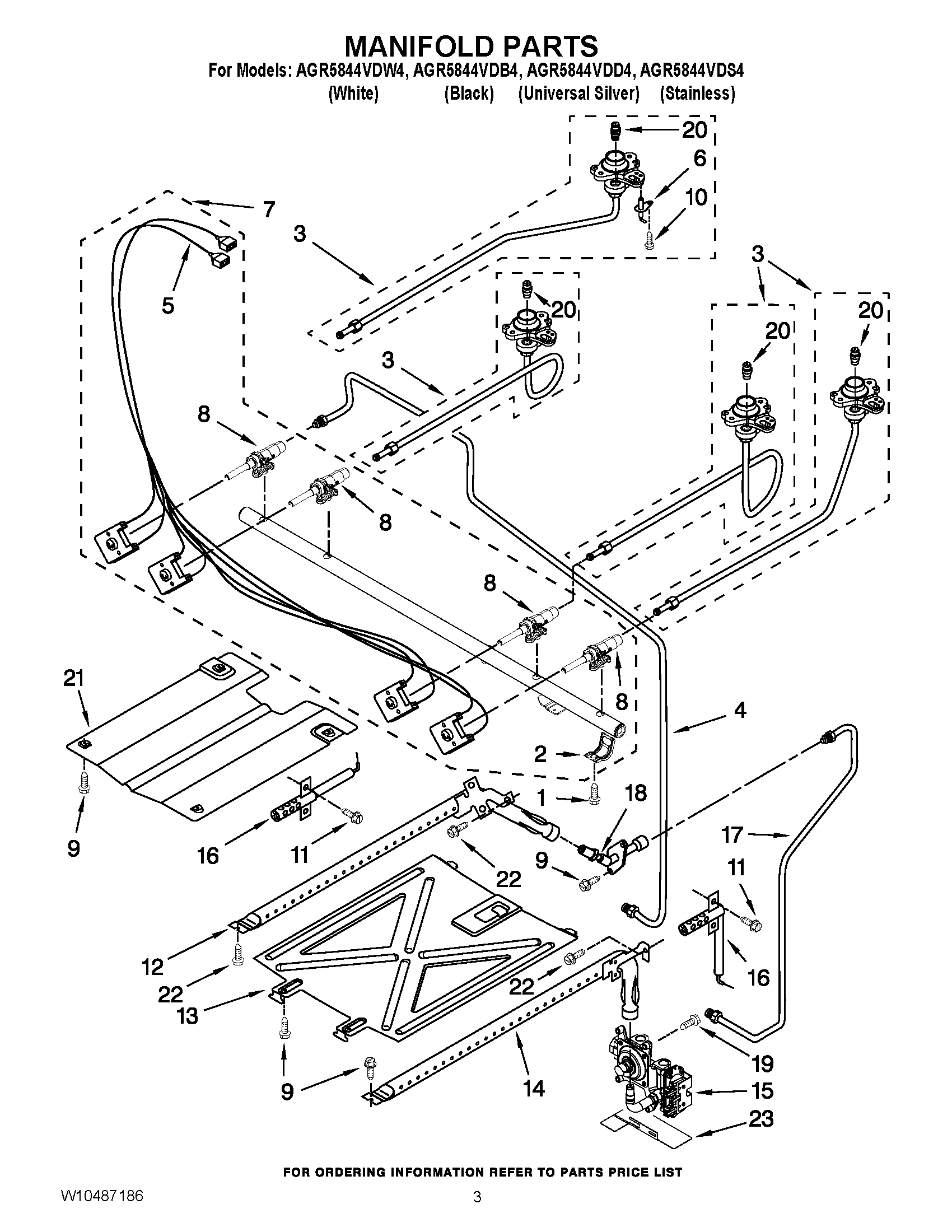

AGR5844VDS4 03 – MANIFOLD PARTS

Products

Position	Product
NI	ORIFICE, LP BAKE
NI	MAY W10400498
NI	SPUDS, LP GAS (KIT OF 4)
1	SCREW, VALVE
2	BRACKET, SADDLE VALVE
3	Tubing, Burner W/Orifice (Right Front)
3	TUBING, BURNER (W/ORIFICE (LEFT REAR))
3	MAY W10175219
3	TUBING, BURNER (W/ORIFICE (RIGHT REAR))
4	TUBING (MANIFOLD TO REGULATOR)
5	MAY W10295998
6	Electrode (4)
7	MAY W10314242
8	VALVE, GAS (RIGHT REAR)
8	VALVE, GAS (LEFT REAR)
9	Screw
10	MAY 8273062
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	MAY W10224914
16	Igniter (Broil)
16	ELECTRODE, BAKE
17	TUBE, BROILER SUPPLY
18	MAY W10340259
19	SCREW
20	ORIFICE, BURNER (12K) (RIGHT FRONT)
20	ORIFICE, NATURAL (5K) (RIGHT REAR)
20	ORIFICE, NATURAL (9.5K) (LEFT REAR)
21	SPREADER, FLAME (BROILER)
22	SCREW
23	BRACKET, AEGIS
