AGR5844VDS5 06 – DOOR PARTS

AGR5844VDS5 06 – DOOR PARTS

Written by

in

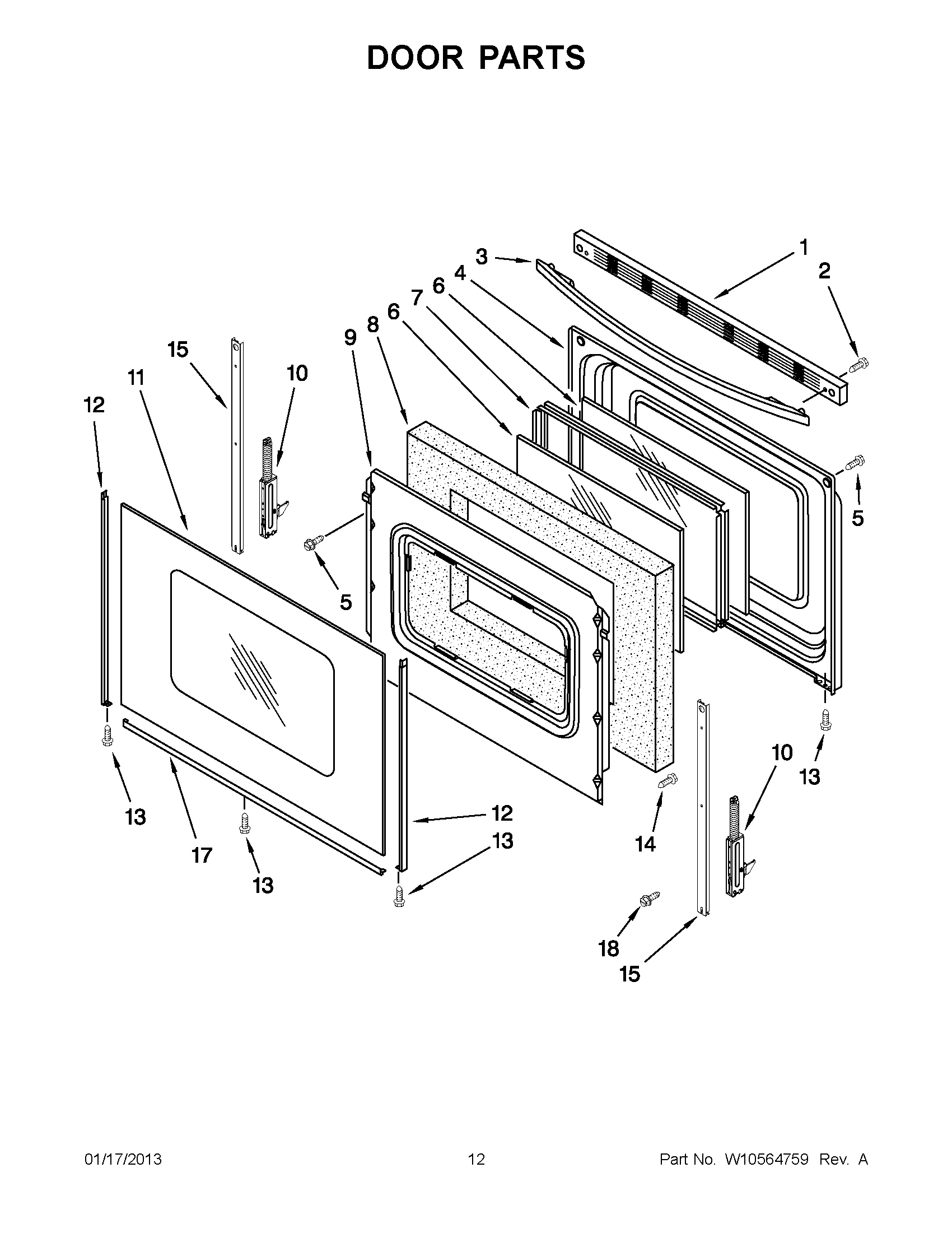

AGR5844VDS5 06 – DOOR PARTS

Products

PositionProduct
1W10817433 Whirlpool Vent Trim
1TRIM-VENT
2WPW10200660 Whirlpool Range Oven Door Handle Screw
3HANDLE, DOOR (STAINLESS)
3HANDLE, DOOR (WHITE)
3HANDLE, DOOR (BLACK)
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299227 Whirlpool Range Door Hinge
10WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10330077 Whirlpool Door Glass
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
13WP355214 Whirlpool Screw
14WP3196175 Whirlpool Screw
15W11502236 Whirlpool Door Trim
16W10777162 Whirlpool Screw
17WP8523177 Whirlpool Door Trim Assembly
17WP8523175 Whirlpool Door Trim Assembly
17Trim, Bottom (Universal Silver)
