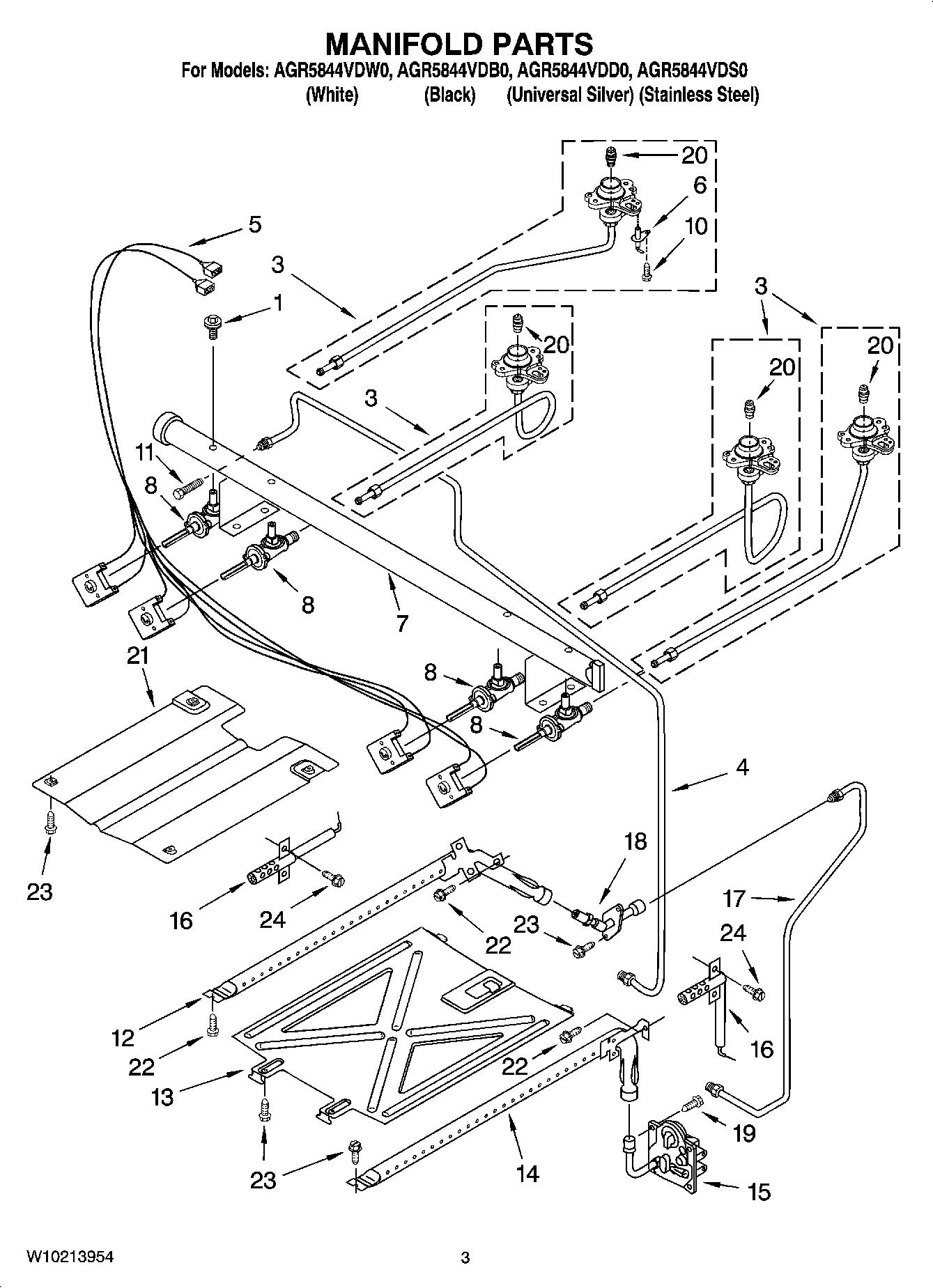

AGR5844VDW0 03 – MANIFOLD PARTS

Products

PositionProduct
NIMAY 8523418
1MAY 8273096
3MAY W10177323
3MAY W10177165
3MAY W10177163
3MAY W10177324
4Tubing (Manifold to Regulator)
5MAY 8523406
6Electrode (4)
7MAY W10169928
8Valve (LF – RF – LR)
8VALVE(RIGHT REAR)
10MAY 8273062
11BOLT
12BURNER, BROILER
13MAY 8053970
14BURNER, BAKE
15Valve/Regulator
16Igniter (Broil)
16ELECTRODE, BAKE
17MAY 8272222
18MAY 3186489
19SCREW
20ORIFICE, NATURAL (9.5K) (LEFT REAR)
20ORIFICE, NATURAL (5K) (RIGHT REAR)
20ORIFICE, BURNER (12K) (RIGHT FRONT)
21SPREADER, FLAME (BROILER)
22SCREW
23Screw
24SCREW
