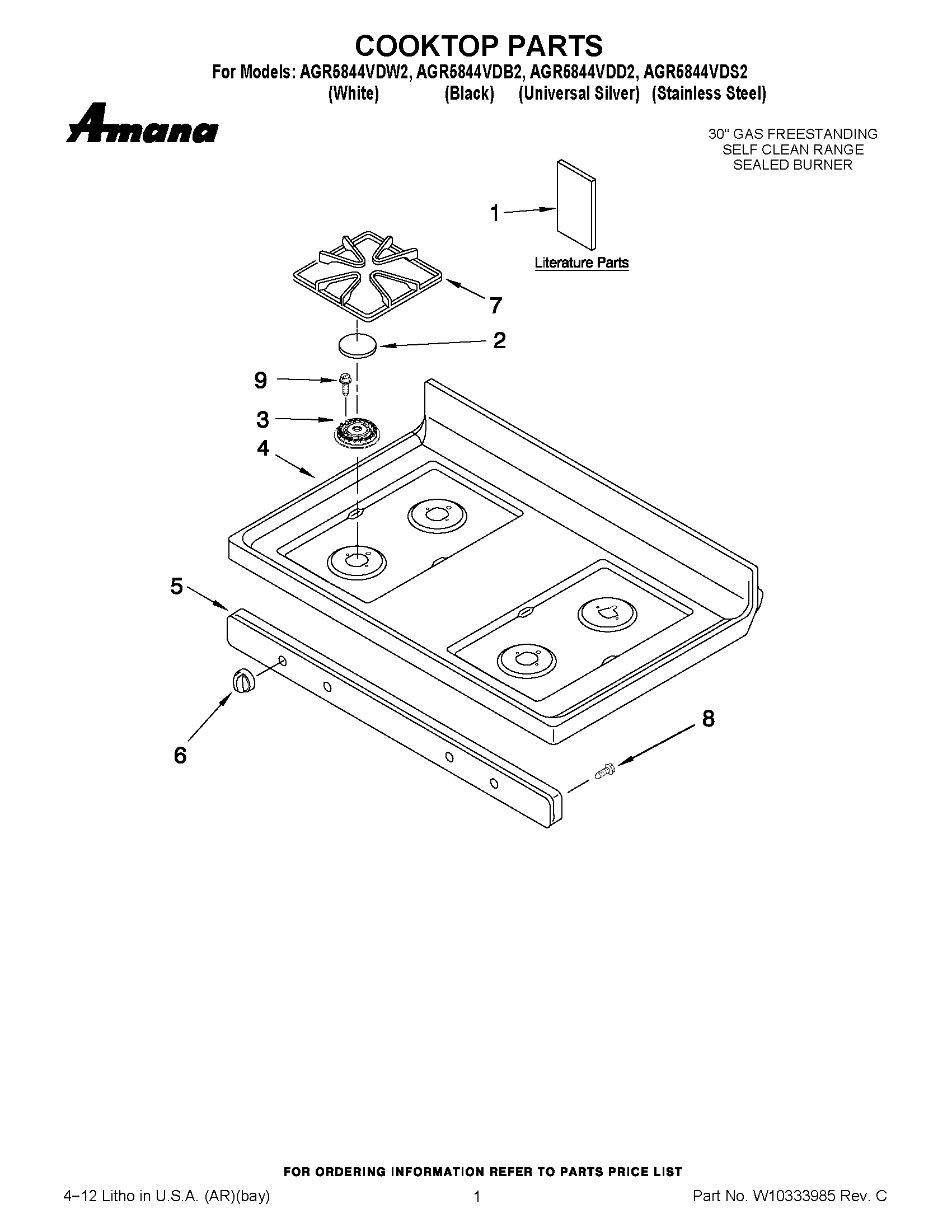

AGR5844VDW2 01 – COOKTOP PARTS

AGR5844VDW2 01 – COOKTOP PARTS

Written by

in

AGR5844VDW2 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10198635
1MAY W10196161
1MAY W10196156
1TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
1Template, Anti-Tip (English/French)
2CAP, BURNER (BLACK)
2CAP, BURNER (WETSTONE)
3HEAD, BURNER (6K) (LEFT REAR)
3HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
3MAY W10406283
4MAY 8272251
4MAY 8272253
5MAY 8523855
5MAY 8523854
6Knob, Control (4) (White)
6Knob, Control (4) (Black)
7KIT, GRATE (BLACK)
7GRATE, SET (WETSTONE)
8SCREW
9MAY 3196557
