AGR5844VDW2 05 – DOOR PARTS

AGR5844VDW2 05 – DOOR PARTS

Written by

in

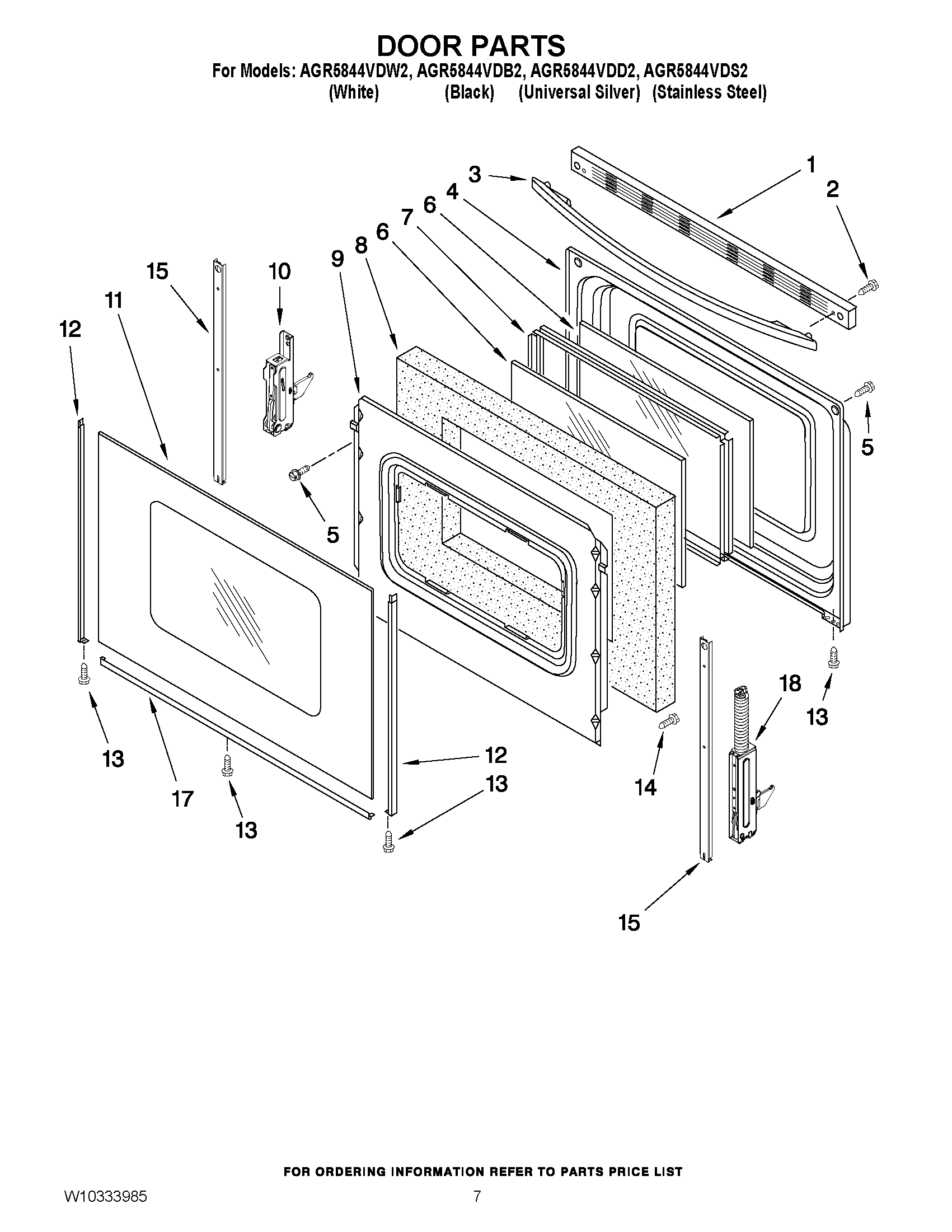

AGR5844VDW2 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
1	TRIM, TOP (BLACK)
2	SCREW
3	MAY W10144888
3	MAY W10144889
3	MAY W10144890
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, DOOR (PASSIVE)
11	Glass, Outer (Black)
11	Glass, Outer (White)
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (WHITE (RIGHT))
13	MAY 3196160
14	SCREW
15	STRAP, DOOR
17	TRIM, LOWER (BLACK)
17	TRIM, LOWER (WHITE)
17	TRIM, LOWER (UNIVERSAL SILVER)
18	HINGE, ACTIVE (WITH SPRING)
