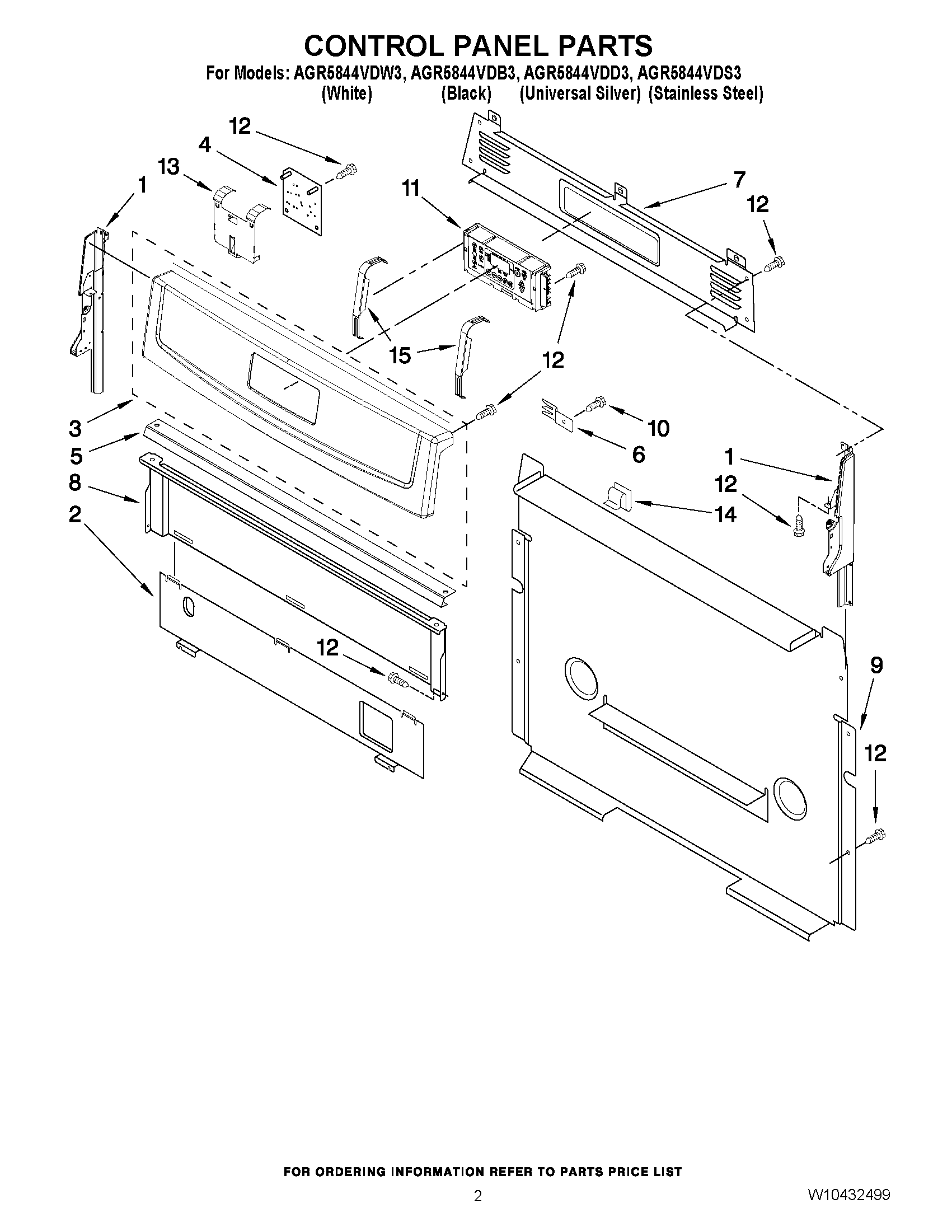

AGR5844VDW3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	SHIELD, HEAT
3	MAY W10170023
3	Panel, Console (Stainless Model)
3	MAY W10170024
3	MAY W10170022
4	MAY W10331686
5	BRKT-MNTG,CONSOLE
6	BRACKET, REAR COOKTOP
7	COVER, UPPER
8	SHIELD, HEAT
9	COVER, BACK
10	SCREW
11	MAY W10271731
11	MAY W10271732
12	SCREW
13	Brkt-Mntg, DSI
14	MAY 8273564
15	BRACKET, MOUNTING, EOC
