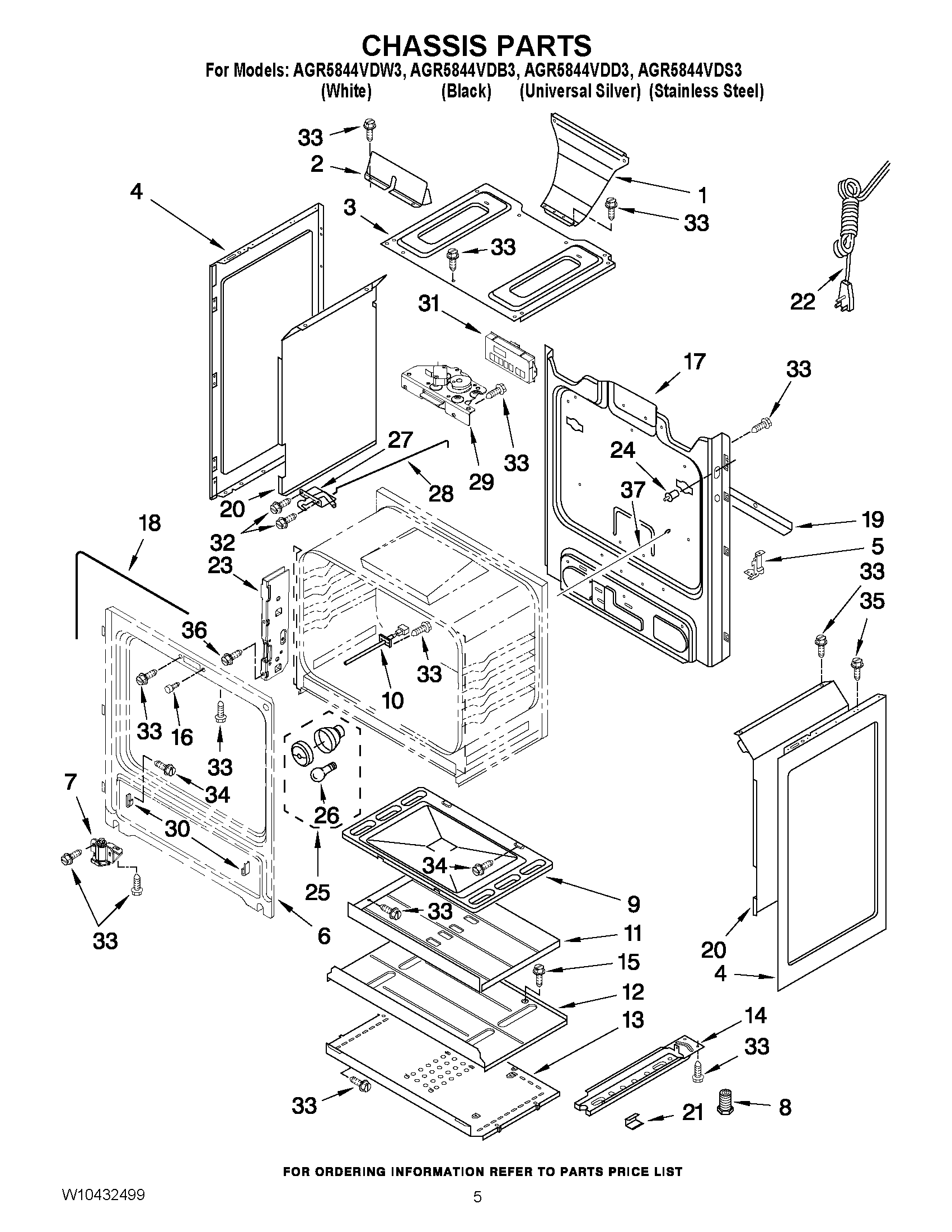

AGR5844VDW3 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	BOX, FLUE
2	SHIELD, FLUE
3	BOX-BURNER, GAS SEALED
4	MAY W10322770
4	MAY W10322769
5	BRACKET, MANIFOLD
6	LINER (NOT A SERVICEABLE PART)
7	ASSEMBLY, FRONT FOOT
8	FOOT, LEVELING
9	BOTTOM, OVEN
10	SENSOR, OVEN
11	BAFFLE, BURNER OVEN
12	SHIELD, HEAT
13	SHIELD, LOWER
14	RAIL, BASE
15	Screw
16	SPACER, DOOR
17	BACK, MAIN
18	MAY 8522416
19	MAY W10387695
20	MAY 9761448
20	MAY 9761449
21	CLIP, PANEL
22	Cord, Power
23	RECEIVER, HINGE
24	MAY 9757262
25	MAY 3196701
26	BULB, OVEN LIGHT
27	ASSEMBLY, DOOR LATCH (FRONT)
28	ROD, PUSH LATCH
29	ASSEMBLY, DOOR LATCH (REAR)
30	Glide, Drawer
31	CLIP, WIRE
32	SCREW
33	SCREW
34	SCREW
35	Screw (Black)
35	Screw (White)
36	MAY W10031780
37	ROD, DOOR SWITCH
