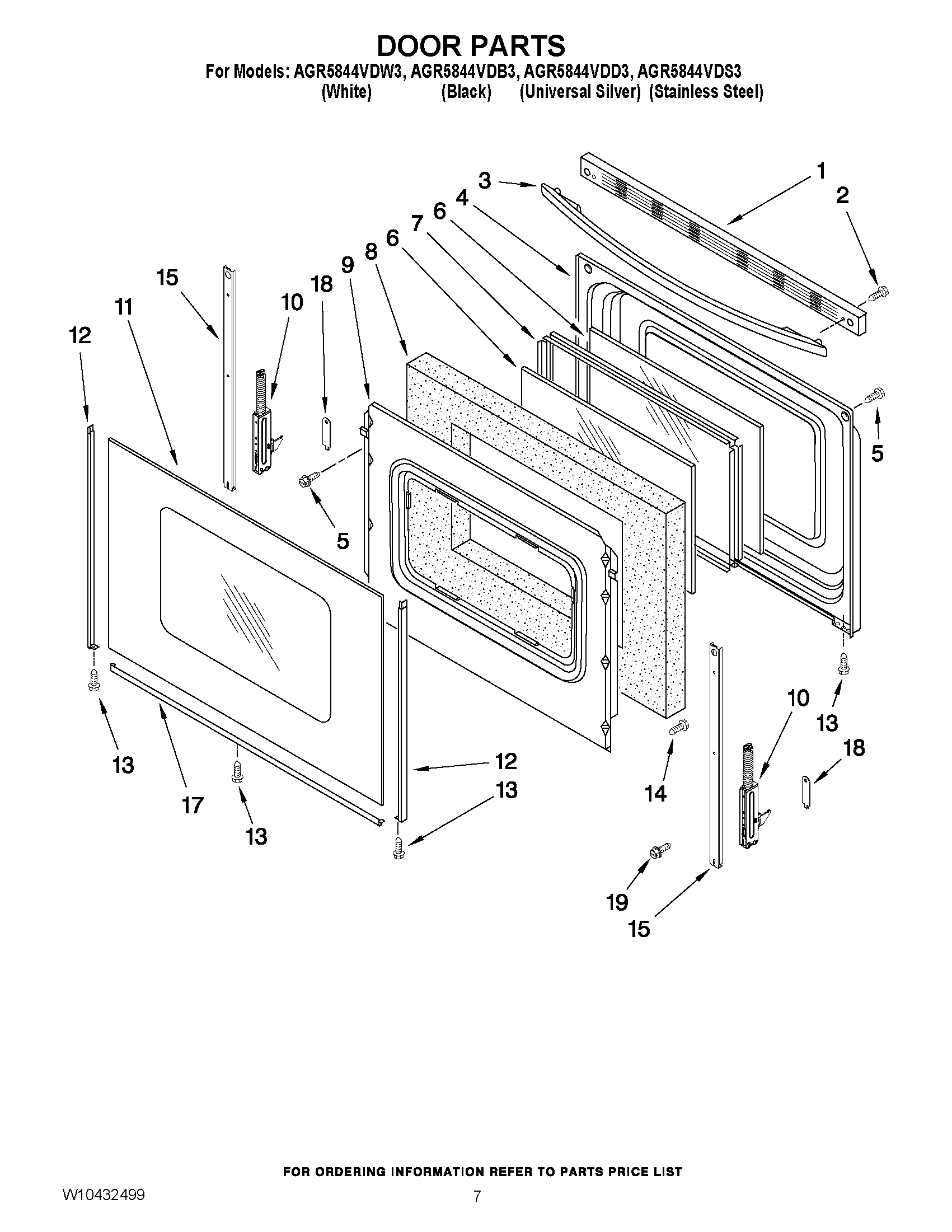

AGR5844VDW3 05 – DOOR PARTS

AGR5844VDW3 05 – DOOR PARTS

Written by

in

AGR5844VDW3 05 – DOOR PARTS

Products

Position	Product
1	Trim, Top (Black)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10144889
3	MAY W10144888
3	MAY W10144890
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE (WITH SPRING)
10	HINGE, DOOR (PASSIVE)
11	GLASS, OUTER (STAINLESS)
11	Glass, Outer (White)
11	Glass, Outer (Black)
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (WHITE (LEFT))
13	MAY 3196160
14	SCREW
15	STRAP, DOOR
17	TRIM, LOWER (BLACK)
17	TRIM, LOWER (WHITE)
17	TRIM, LOWER (UNIVERSAL SILVER)
18	Clip,Door Mntg(2)
19	MAY W10031780
