AGR5844VDW5 01 – COOKTOP PARTS

AGR5844VDW5 01 – COOKTOP PARTS

Written by

in

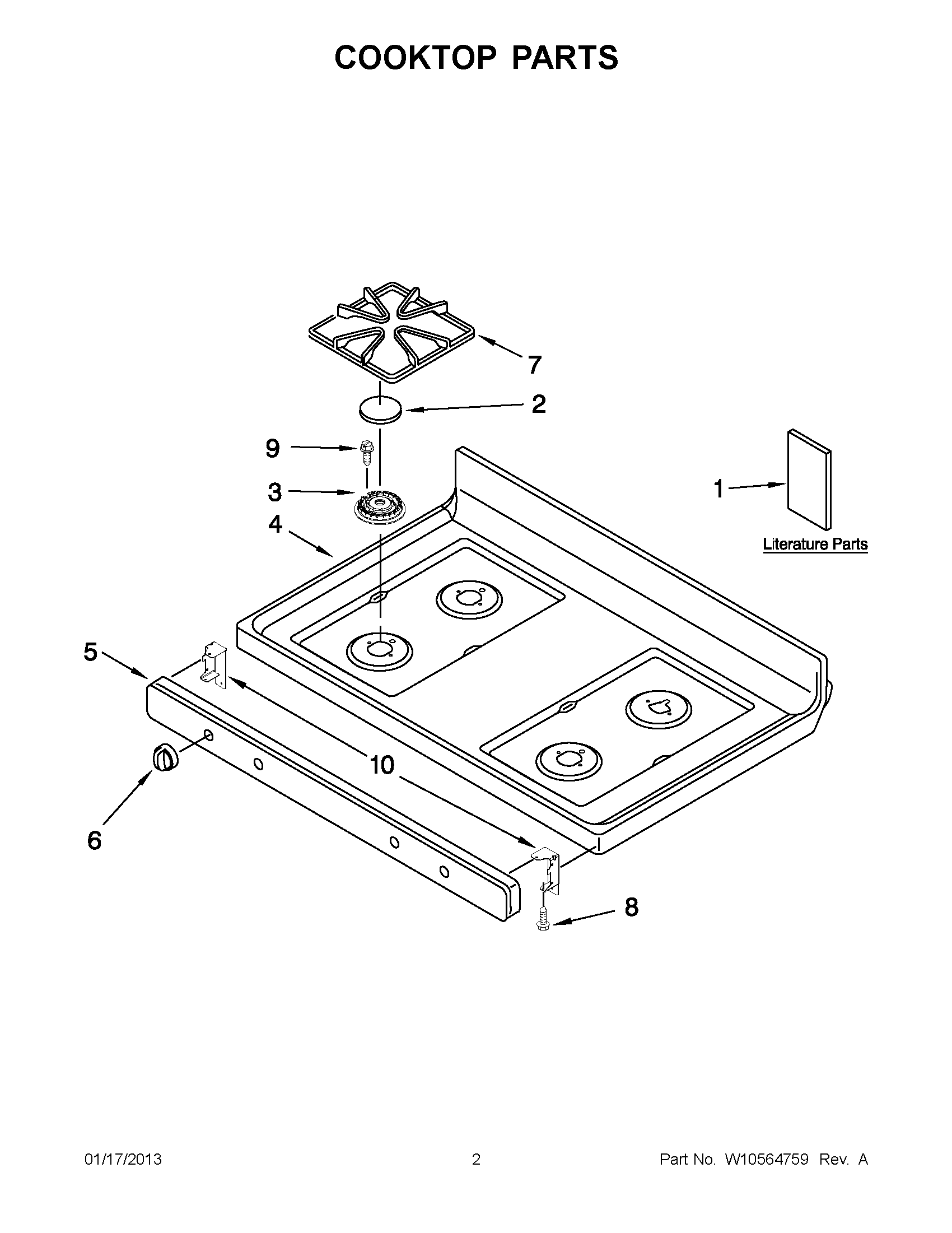

AGR5844VDW5 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET (ENGLISH)
1OWNERS MANUAL
1INSTALLATION INSTRUCTIONS
2WPW10165809 Whirlpool Burner Cap
2WPW10170554 Whirlpool Burner Cap
3WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
3WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
3WPW10406243 Whirlpool Burner Head Auxiliary 6K
4W11213958 Whirlpool Oven Cooktop
4W11213959 Whirlpool Cooktop
58523855 Whirlpool Oven Manifold Panel
5WP8523854 Whirlpool Manifold Panel
6WPW10163287 Whirlpool Knob
6W11190817 Whirlpool Knob Assembly
7W10837340 Whirlpool Grate Kit
7WPW10268483 Whirlpool Grate Kit
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
108523249 Whirlpool Oven Support Bracket
