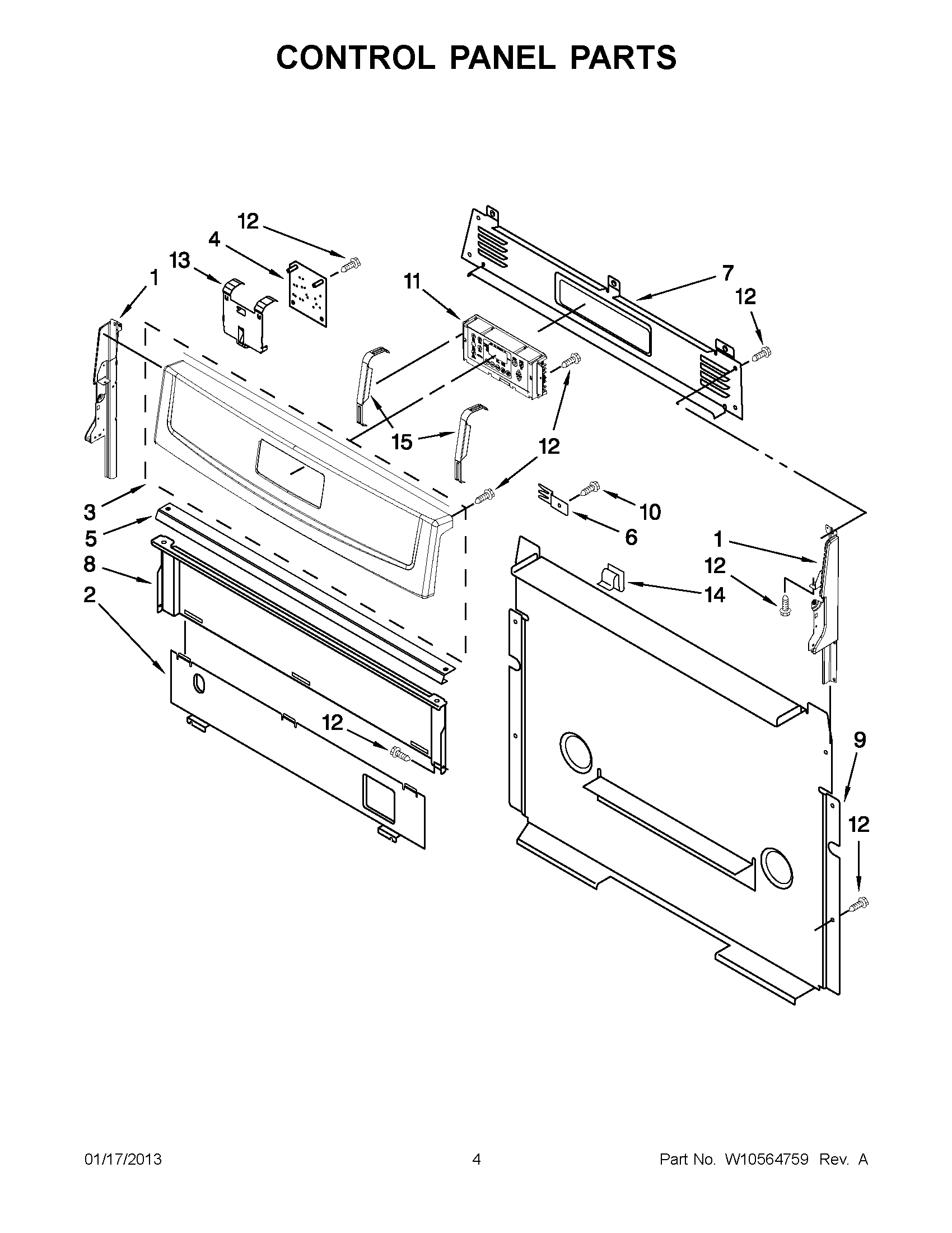

AGR5844VDW5 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
2	8053505 Whirlpool Oven Shield
3	PANEL, CONSOLE (STAINLESS)
3	PANEL, CONSOLE (WHITE)
3	PANEL, CONSOLE (UNIVERSAL SILVER)
3	PANEL, CONSOLE (BLACK)
4	WPW10331686 Whirlpool Oven Spark Module
5	BRACKET, CONSOLE MOUNTING
6	8523412 Whirlpool Mounting Bracket
7	W10198745 Whirlpool Rear Cover
8	W10192841 Whirlpool Heat Shield
9	COVER, BACK
10	WP3196557 Whirlpool Screw
11	W10824194 Whirlpool Range Control Board + Core
12	SCREW
13	W10516463 Whirlpool Mounting Bracket
14	W10334923 Whirlpool Clip
15	W11230932 Whirlpool Bracket Mounting
