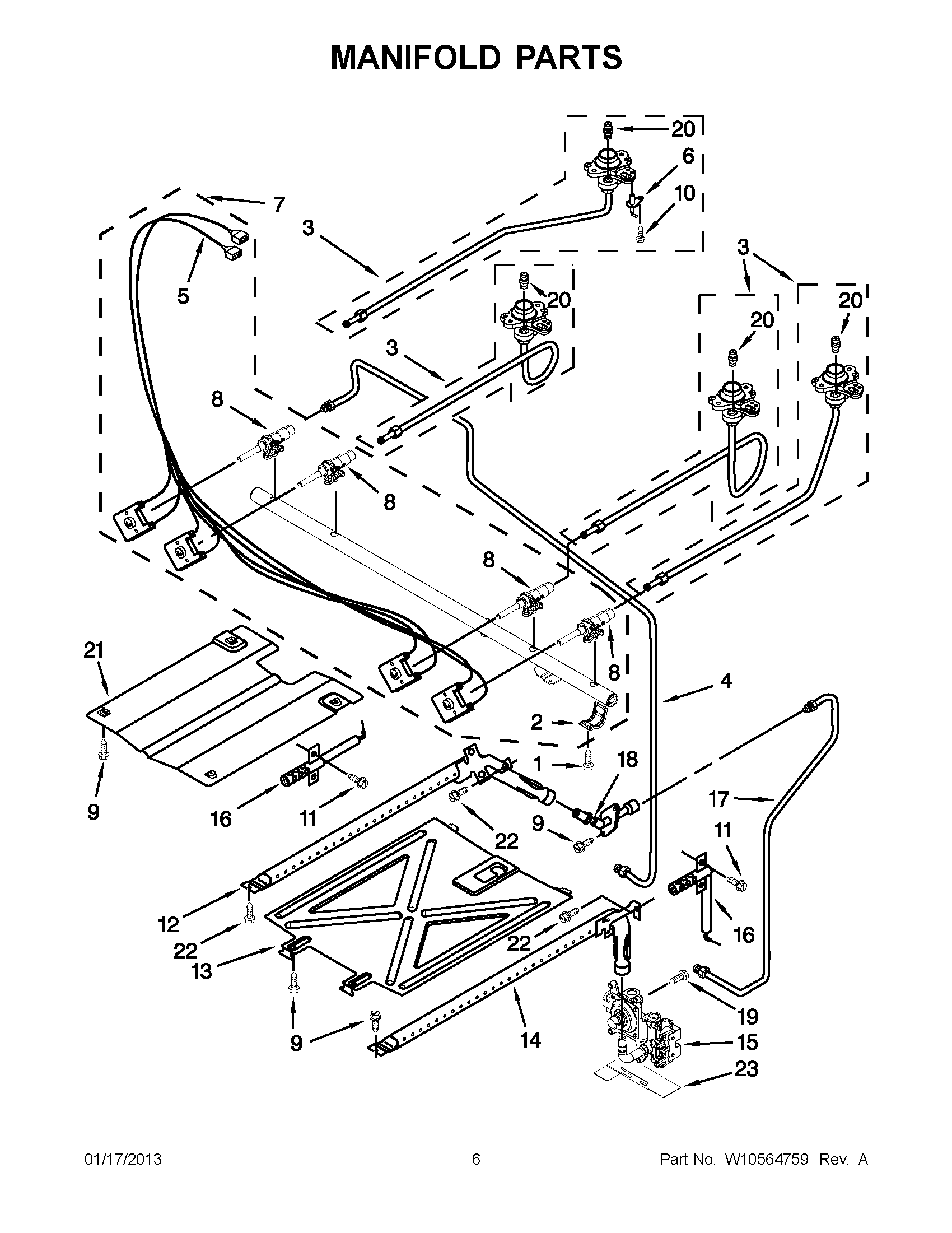

AGR5844VDW5 03 – MANIFOLD PARTS

Products

Position	Product
NI	WPW10400498 Whirlpool Orifice
NI	WPW10400495 Whirlpool Orifice Assembly
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10170531 Whirlpool Spud Orifice
1	W10295997 Whirlpool Screw
2	W10949105 Whirlpool Mounting Bracket
3	W10462945 Whirlpool Orifice Holder
3	W10462936 Whirlpool Orifice Holder
3	W10462928 Whirlpool Orifice Holder
3	W10462940 Whirlpool Orifice Holder
4	W11680399 Whirlpool Gas Tubing
5	WPW10295998 Whirlpool Wire Harness
6	WPW10216419 Whirlpool Surface Igniter
7	W10314242 Whirlpool Manifold Pipe
8	WPW10247744 Whirlpool Burner Valve
8	WPW10279614 Whirlpool Burner Valve
9	SCREW
10	WP8273062 Whirlpool Screw
11	W11684507 Whirlpool Screw
12	WP8054078 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	WPW10602001 Whirlpool Gas Valve
16	WP9758079 Whirlpool Oven Igniter
16	WP8054129 Whirlpool Oven Igniter
17	W10420040 Whirlpool Gas Tubing
18	FITTING, BROILER
19	WP3400016 Whirlpool Screw Assembly
20	W10178934 Whirlpool Orifice Assembly
20	WPW10170506 Whirlpool Orifice Spud
20	WPW10170508 Whirlpool Orifice Spud
21	W10137062 Whirlpool Burner Baffle
22	3196265 Whirlpool Oven Screw
23	W10224921 Whirlpool Bracket Mounting
