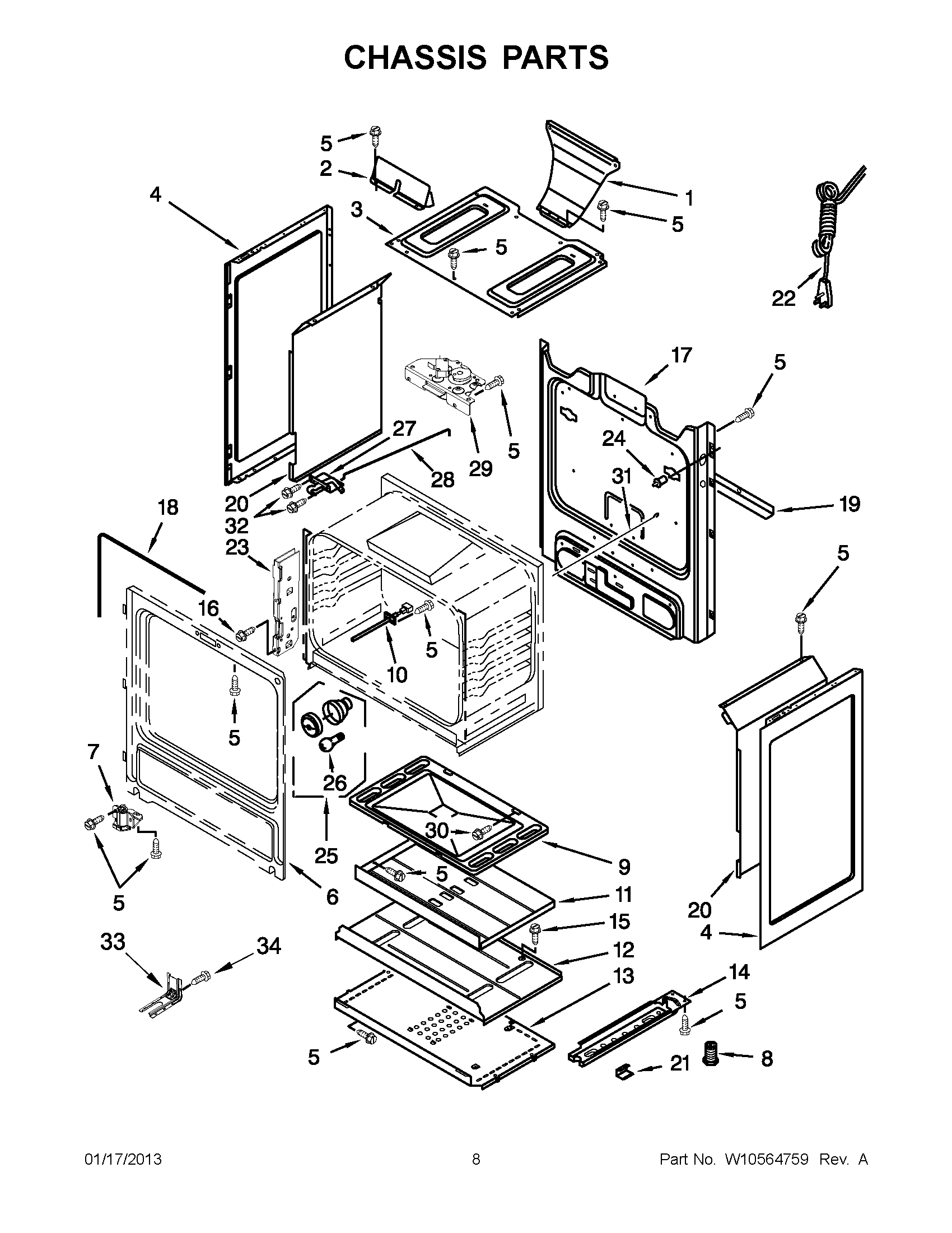

AGR5844VDW5 04 – CHASSIS PARTS

Products

PositionProduct
NIW11688737 Whirlpool Insulation
NIW11684915 Whirlpool Insulation
1W11457094 Whirlpool Oven Flue
2WP8272747 Whirlpool Heat Shield
3W11379351 Whirlpool Burner Box
4W11730303 Whirlpool Side Panel
4WPW10575396 Whirlpool Side Panel
5SCREW
6CABINET (NOT A SERVICEABLE PART)
7WPW10341186 Whirlpool Refrigerator Front Levelling Leg
8WPW10058460 Whirlpool Appliance Levelling Leg
9WP3195097 Whirlpool Oven Bottom
10WPW10181986 Whirlpool Oven Sensor
118053967 Whirlpool Oven Heat Baffle
128053969 Whirlpool Heat Shield
138053968 Whirlpool Oven Heat Shield
14WPW10306546 Whirlpool Base Rail
15WP7101P246-60 Whirlpool Screw
16W10777162 Whirlpool Screw
17BACK, MAIN
18W11542153 Whirlpool Door Gasket
19W10435470 Whirlpool Brace
209761448 Whirlpool Oven Retainer
209761449 Whirlpool Oven Retainer
21W10137382 Whirlpool Clip
22WP9757891 Whirlpool Power Cord
23W10647259 Whirlpool Hinge Receiver
24WP9757262 Whirlpool Light Switch
25W11594027 Whirlpool Range Oven Light Socket
26RANGE ONLY 40W 120V APPL BULB
27WP9761013 Whirlpool Door Latch
28W10078370 Whirlpool Latch Rod
29WPW10107820 Whirlpool Door Latch
30W10379120 Whirlpool Screw
319757239 Whirlpool Oven Door Rod
32W11169708 Whirlpool Screw
33W11447673 Whirlpool Range Tip Anchor
34SCREW, ANTI-TIP KIT
