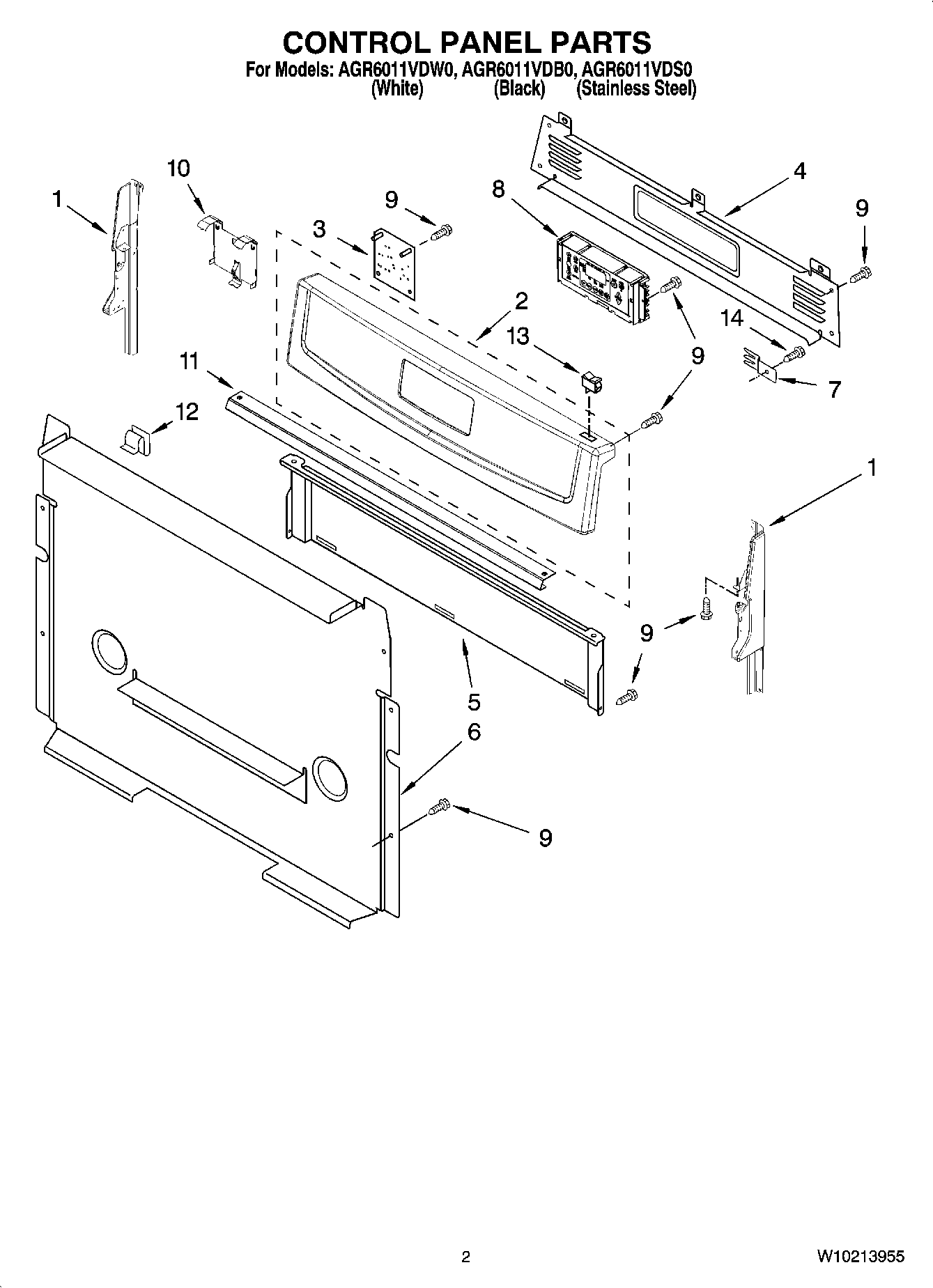

AGR6011VDB0 02 – CONTROL PANEL PARTS

AGR6011VDB0 02 – CONTROL PANEL PARTS

Written by

in

AGR6011VDB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	MAY W10170028
2	MAY W10170026
2	MAY W10170027
3	MAY 9758080
4	MAY 9756301
5	MAY W10184040
6	COVER, BACK
7	BRACKET, REAR COOKTOP
8	MAY W10173503
8	MAY W10173502
9	SCREW
10	Brkt-Mntg, DSI
11	Brkt-Mntg,Console
12	MAY 8273564
13	SWITCH, ROCKER (BLACK)
13	SWITCH, ROCKER (WHITE)
14	SCREW
