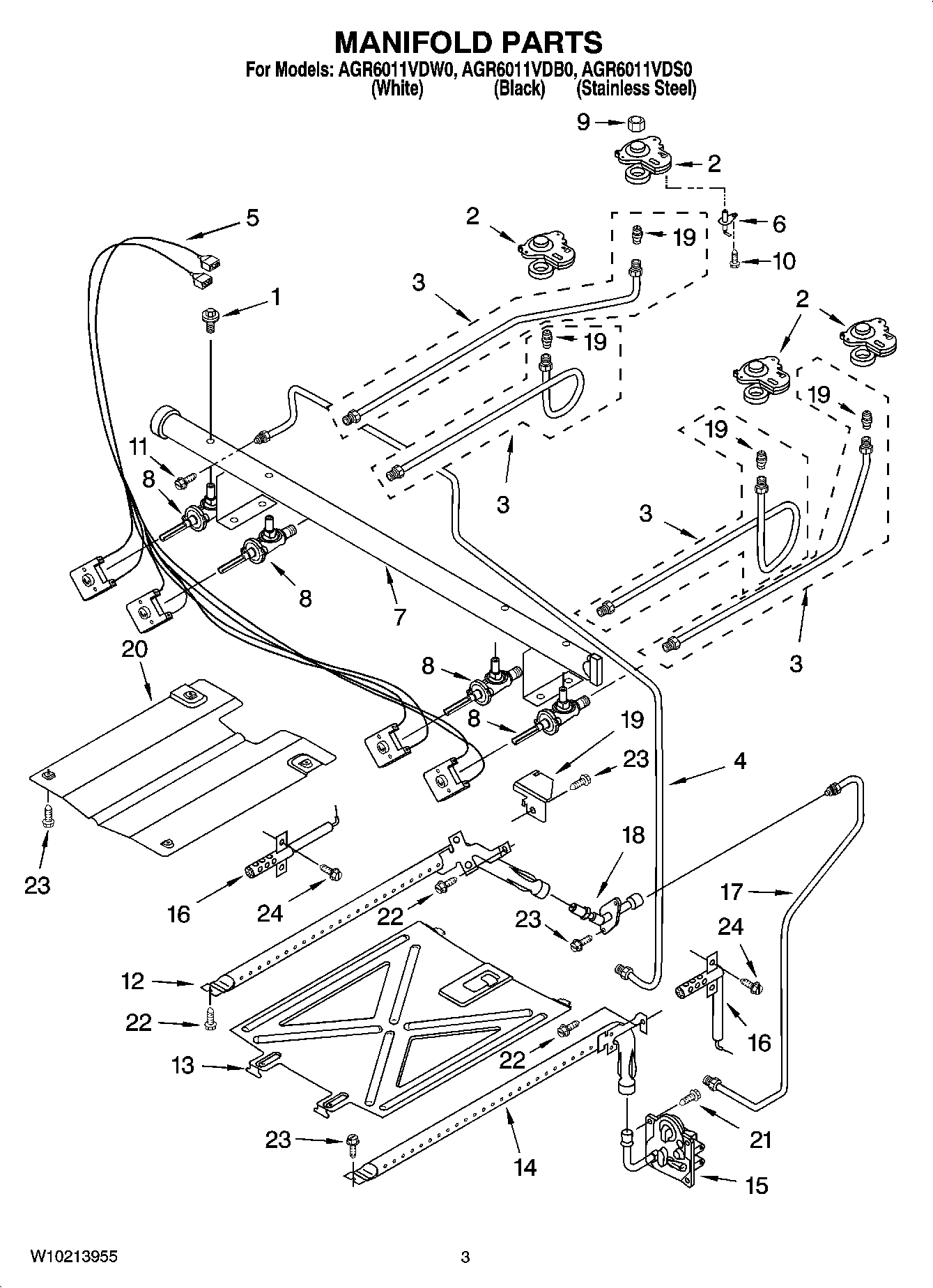

AGR6011VDB0 03 – MANIFOLD PARTS

AGR6011VDB0 03 – MANIFOLD PARTS

Written by

in

AGR6011VDB0 03 – MANIFOLD PARTS

Products

PositionProduct
NIMAY 8523420
1MAY 8273096
2MAY W10170843
2MAY W10170844
3MAY W10177161
3MAY W10177162
3MAY W10177160
3MAY W10177159
4Tubing (Manifold to Regulator)
5MAY 8523406
6ORIFICE, BURNER (RIGHT REAR)
7MAY W10169928
8VALVE(RIGHT REAR)
8Valve (LF – RF – LR)
9MAY 8273060
10MAY 8273062
11BOLT
12BURNER, BROILER
13MAY 8053970
14BURNER, BAKE
15Valve/Regulator
16Igniter (Broil)
16ELECTRODE, BAKE
17MAY 8272222
18MAY 3186489
19ORIFICE, BURNER (12K) (RIGHT FRONT)
19ORIFICE, NATURAL (9.5K) (LEFT REAR)
19ORIFICE, NATURAL (5K) (RIGHT REAR)
20SPREADER, FLAME (BROILER)
21SCREW
22SCREW
23Screw
24SCREW
