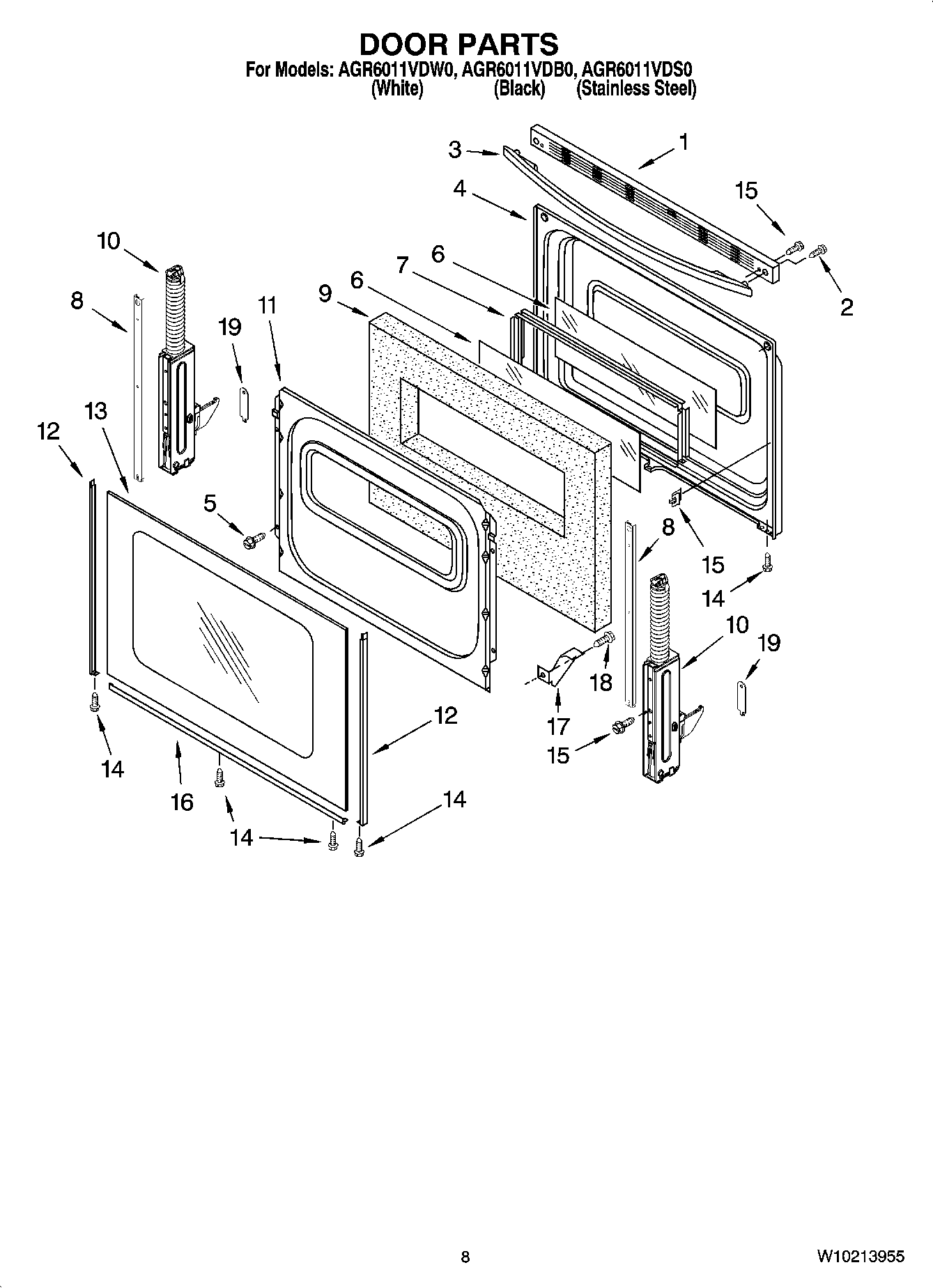

AGR6011VDB0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE))
NI	Wire, Tie
NI	MAY W10174441
NI	Harness, Wire (Bake/Broil)
NI	Harness, Wire (Ground)
NI	CLIP, HARNESS
NI	REFINISHING MATERIAL (GREASE)
NI	REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
NI	MAY W10017440
NI	CLIP, WIRE
NI	CLIP, HARNESS
NI	CLIP, WIRE
NI	SCREW
NI	SCREW
NI	INSULATION (2-1/2" X 22" X 120")
NI	ACCESSORY PARTS, ALUMINUM FOIL
NI	REFINISHING MATERIAL, OVEN LINER TOUCH UP PAINT
NI	INSULATION (1-1/2" X 24" X 120")
NI	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	ACCESSORY PARTS, GRID, BROILER PAN AND
NI	PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
NI	Harness, Wire (Cooktop Spark)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
1	Trim, Top (Black)
1	MAY W10144869
1	MAY 9762394
2	SCREW
3	MAY W10144888
3	MAY W10144889
3	MAY W10144890
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	MAY 3186289
8	STRAP, DOOR
9	MAY 8272618
10	Hinge, Door (2) (Stainless Model)
10	Hinge, Door
11	RETAINER, INSULATION
12	TRIM SIDE (STAINLESS RH)
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM SIDE (STAINLESS LH)
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (WHITE (RIGHT))
13	Glass, Outer (Black)
13	Glass, Outer (White)
14	MAY 3196160
15	Clip, Door Glass
15	MAY W10031780
16	TRIM, LOWER (WHITE)
16	TRIM, LOWER (BLACK)
17	Bracket, Window(2)
18	SCREW
19	Clip,Door Mntg(2)
