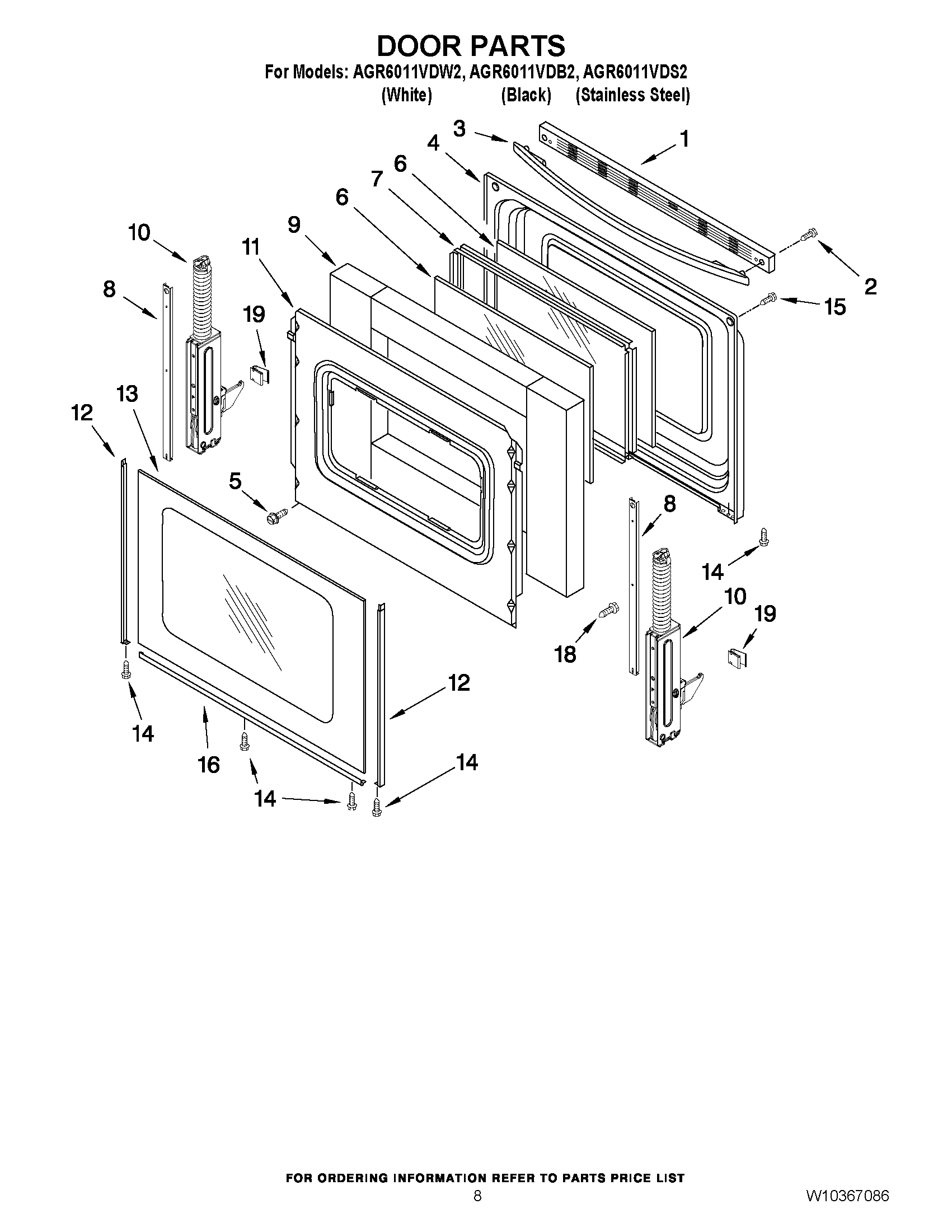

AGR6011VDB2 06 – DOOR PARTS

AGR6011VDB2 06 – DOOR PARTS

Written by

in

AGR6011VDB2 06 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2MAY W10178143
3MAY W10144890
3MAY W10144888
3MAY W10144889
4LINER, DOOR
5SCREW
6GLASS, INNER
7FRAME, GLASS
8STRAP, DOOR
9INSULATION, DOOR STRIP
10HINGE, DOOR (PASSIVE)
10HINGE, ACTIVE (WITH SPRING)
11RETAINER, INSULATION
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM SIDE (STAINLESS LH)
12TRIM, SIDE (WHITE (RIGHT))
13Glass, Outer (White)
13GLASS, OUTER (STAINLESS)
13Glass, Outer (Black)
14MAY 3196160
15SCREW
16TRIM, LOWER (BLACK)
16TRIM, LOWER (WHITE)
18SCREW
19MAY W10292395
