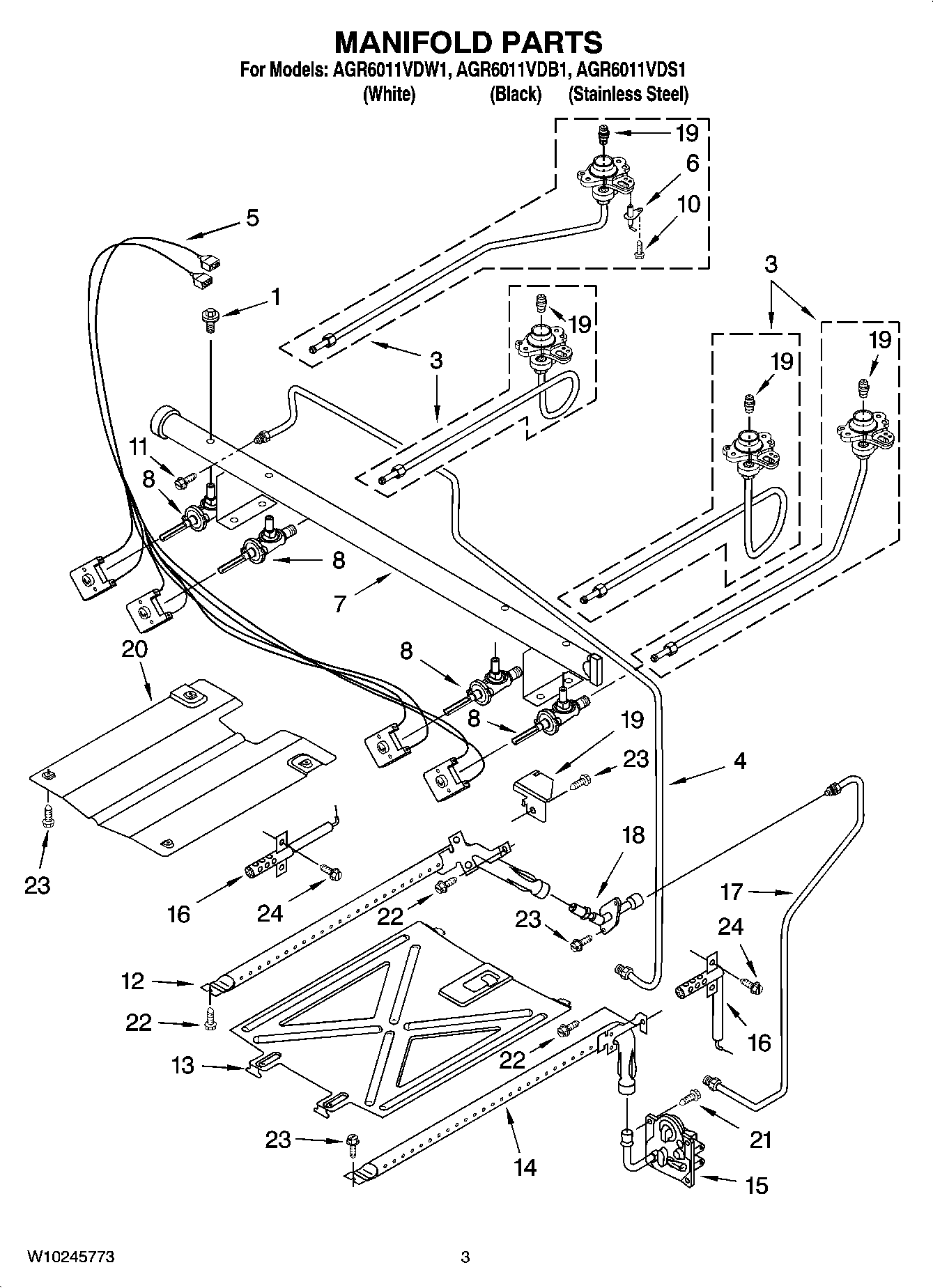

AGR6011VDS1 03 – MANIFOLD PARTS

Products

PositionProduct
NIMAY 8523420
1MAY 8273096
3Tubing, Burner W/Orifice (Right Front)
3TUBING, BURNER (W/ORIFICE (LEFT REAR))
3TUBING, BURNER (W/ORIFICE (RIGHT REAR))
3MAY W10175219
4Tubing (Manifold to Regulator)
5MAY 8523406
6Electrode (4)
7MAY W10169928
8VALVE(RIGHT REAR)
8Valve (LF – RF – LR)
10MAY 8273062
11BOLT
12BURNER, BROILER
13SPREADER, FLAME (OVEN)
14BURNER, BAKE
15Valve/Regulator
16Igniter (Broil)
16ELECTRODE, BAKE
17MAY 8272222
18MAY 3186489
19ORIFICE, NATURAL (9.5K) (LEFT REAR)
19ORIFICE, NATURAL (5K) (RIGHT REAR)
19ORIFICE, BURNER (12K) (RIGHT FRONT)
20SPREADER, FLAME (BROILER)
21SCREW
22SCREW
23Screw
24SCREW
