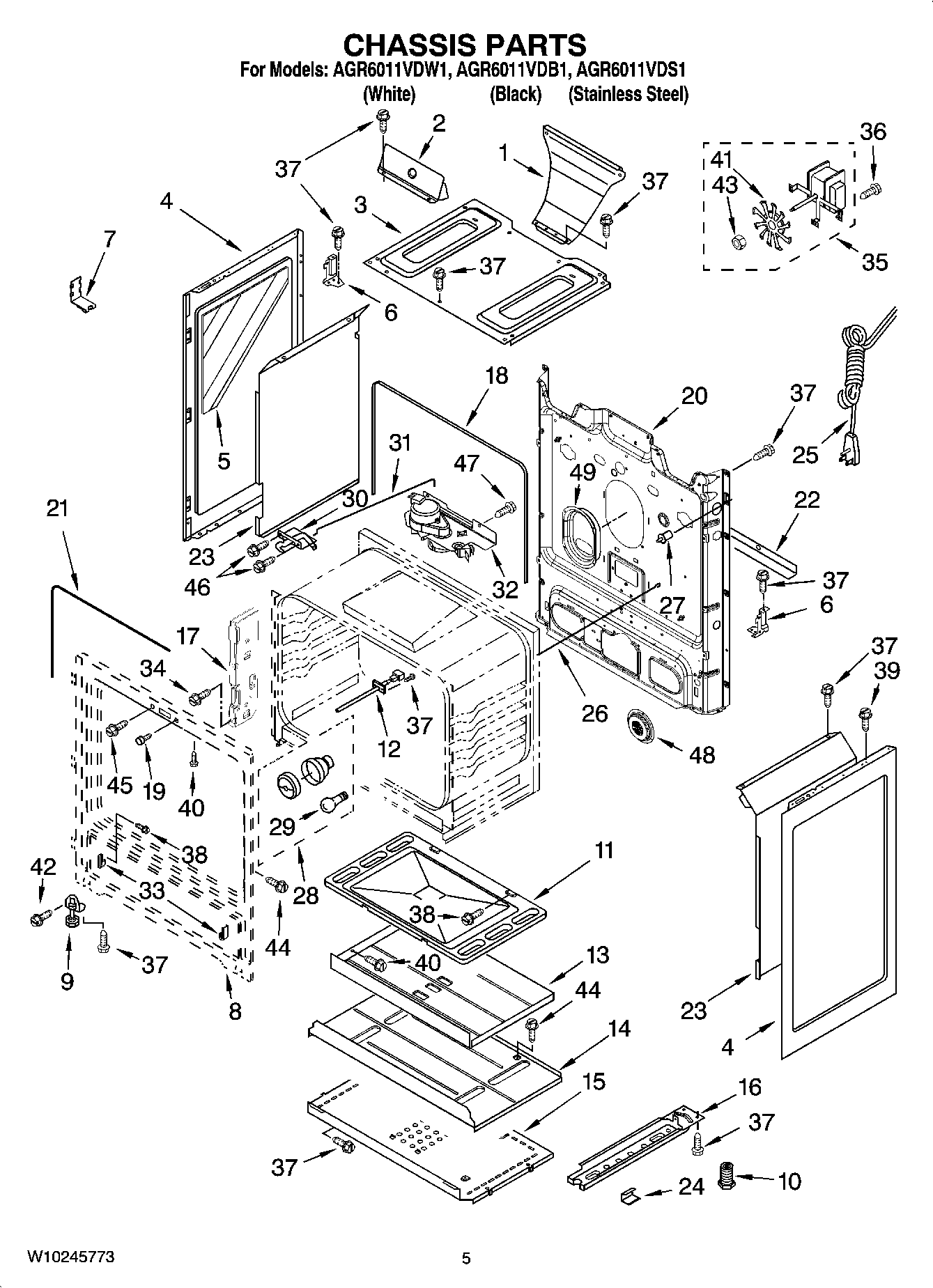

AGR6011VDS1 04 – CHASSIS PARTS

AGR6011VDS1 04 – CHASSIS PARTS

Written by

in

AGR6011VDS1 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	INSULATION, BACK
NI	MAY 8272613
1	BOX, FLUE
2	SHIELD, FLUE
3	BOX-BURNER, GAS SEALED
4	Panel, Side (2) (White)
4	MAY 8053832
5	MAY W10182346
6	BRACKET, MANIFOLD
9	MAY 3196037
10	FOOT, LEVELING
11	BOTTOM, OVEN
12	SENSOR, OVEN
13	BAFFLE, BURNER OVEN
14	SHIELD, HEAT
15	SHIELD, HEAT
16	RAIL, BASE
17	BRKT – MOUNTING
18	MAY W10008830
19	SPACER, DOOR
20	MAY W10134118
21	MAY 8522416
22	MAY 8053971
23	MAY 9761448
23	MAY 9761449
24	CLIP, PANEL
25	Cord, Power
26	ROD, DOOR SWITCH
27	Switch, Door
28	MAY 3196701
29	BULB, OVEN LIGHT
30	ASSEMBLY, DOOR LATCH (FRONT)
31	ROD, PUSH LATCH
32	Latch Asy, Rear
33	Glide, Drawer
34	MAY W10031780
35	MAY W10167915
36	MAY 4449809
37	SCREW
38	MAY 3196152
39	Screw (White)
40	Screw
41	MAY W10116351
42	Screw
43	MAY W10116349
44	Screw
45	Screw (Black)
46	SCREW
47	MAY 3196160
48	MAY W10134124
49	MAY W10134126
