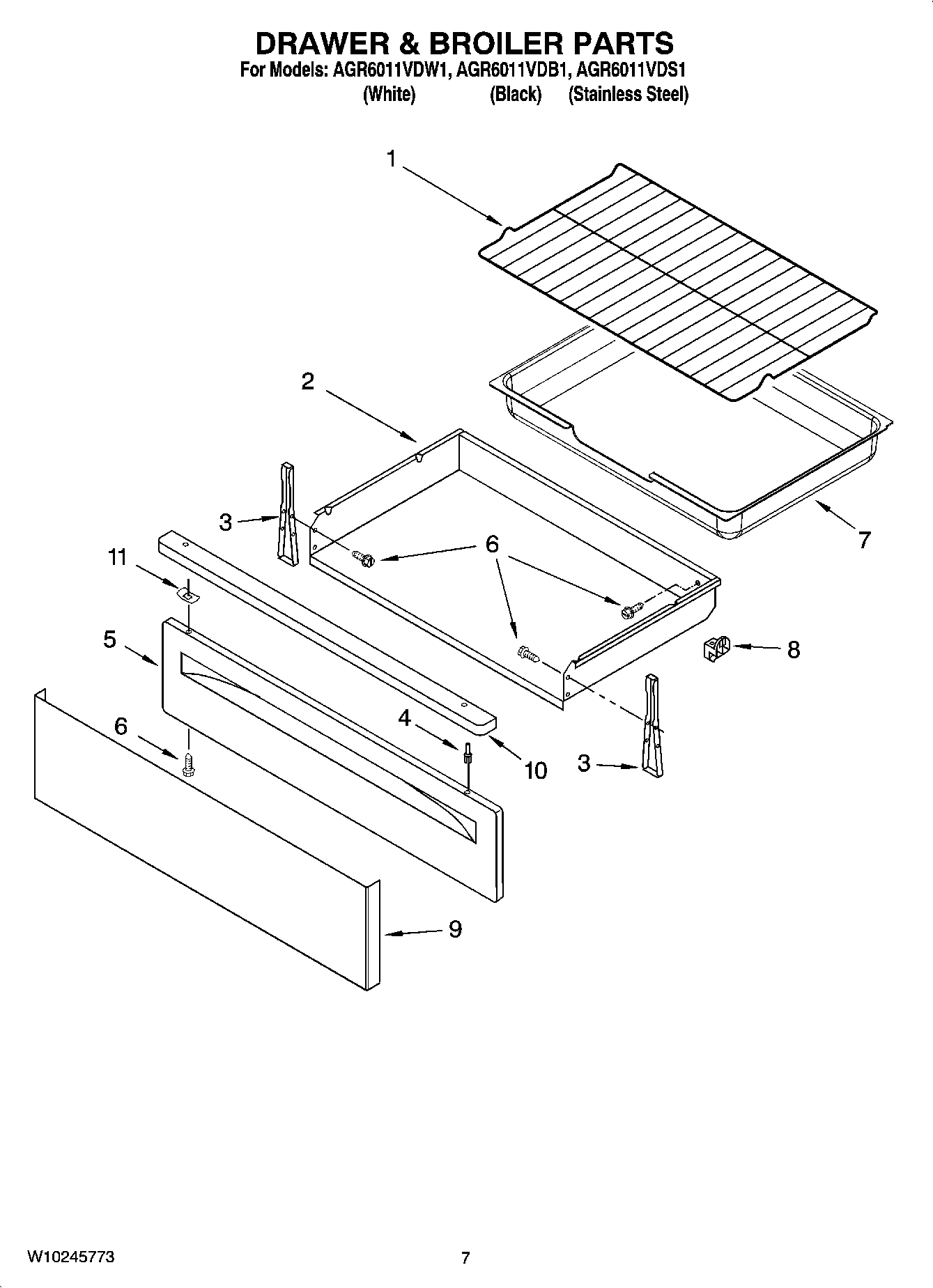

AGR6011VDS1 05 – DRAWER & BROILER PARTS

AGR6011VDS1 05 – DRAWER & BROILER PARTS

Written by

in

AGR6011VDS1 05 – DRAWER & BROILER PARTS

Products

Position	Product
1	MAY W10179196
2	MAY 9761031
3	Bracket, Drawer(2)
4	RIVET, PUSH (WHITE)
4	RIVET, PUSH (BLACK)
5	MAY W10022100
5	MAY W10022090
6	Screw (Black)
7	MAY 9761033
8	GLIDE, DRAWER
9	Panel(Stls. Model)
10	Handle(Stls.Model)
11	CLIP(STLS.MODEL)
