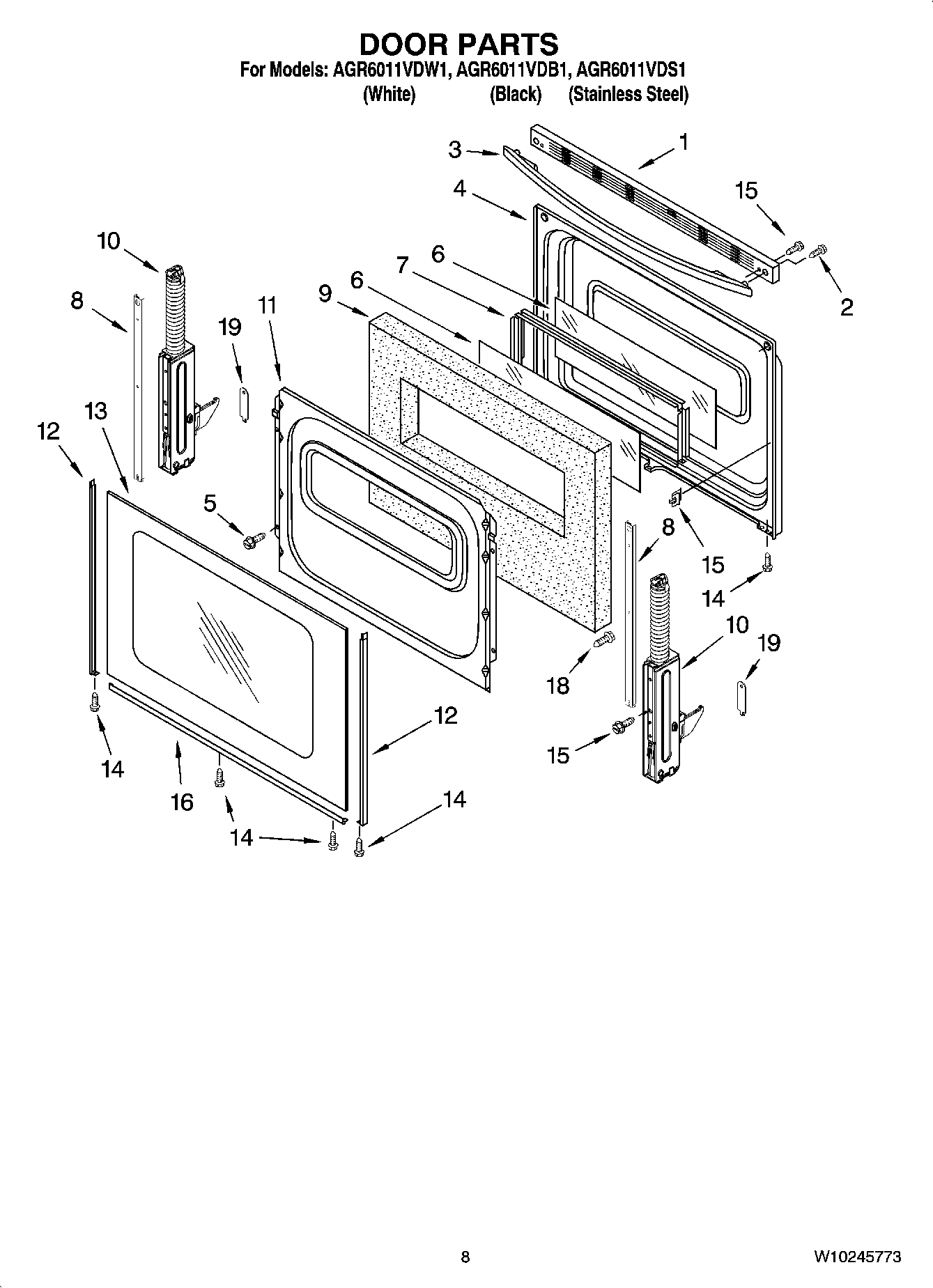

AGR6011VDS1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	Harness, Wire (Cooktop Spark)
NI	CLIP, HARNESS
NI	CLIP, WIRE
NI	MAY 3400964
NI	MAY W10017440
NI	REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
NI	REFINISHING MATERIAL (GREASE)
NI	CLIP, HARNESS
NI	Harness, Wire (Bake/Broil)
NI	MAY W10174458
NI	MAY W10174441
NI	Wire, Tie
NI	CLIP, WIRE
NI	SCREW
NI	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	ACCESSORY PARTS, GRID, BROILER PAN AND
NI	REFINISHING MATERIAL, OVEN LINER TOUCH UP PAINT
NI	INSULATION (1-1/2" X 24" X 120")
NI	ACCESSORY PARTS, ALUMINUM FOIL
NI	INSULATION (2-1/2" X 22" X 120")
NI	PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
1	MAY 9762394
1	MAY W10144869
1	Trim, Top (Black)
2	SCREW
3	MAY W10144888
3	MAY W10144890
3	MAY W10144889
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	MAY 3186289
8	STRAP, DOOR
9	MAY 8272618
10	Hinge, Door
10	Hinge, Door (2) (Stainless Model)
11	RETAINER, INSULATION
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM SIDE (STAINLESS RH)
12	TRIM SIDE (STAINLESS LH)
12	TRIM, SIDE (BLACK, RIGHT HAND)
13	Glass, Outer (Black)
13	Glass, Outer (White)
14	MAY 3196160
15	MAY W10031780
15	Clip, Door Glass
16	TRIM, LOWER (WHITE)
16	TRIM, LOWER (BLACK)
18	SCREW
19	Clip,Door Mntg(2)
