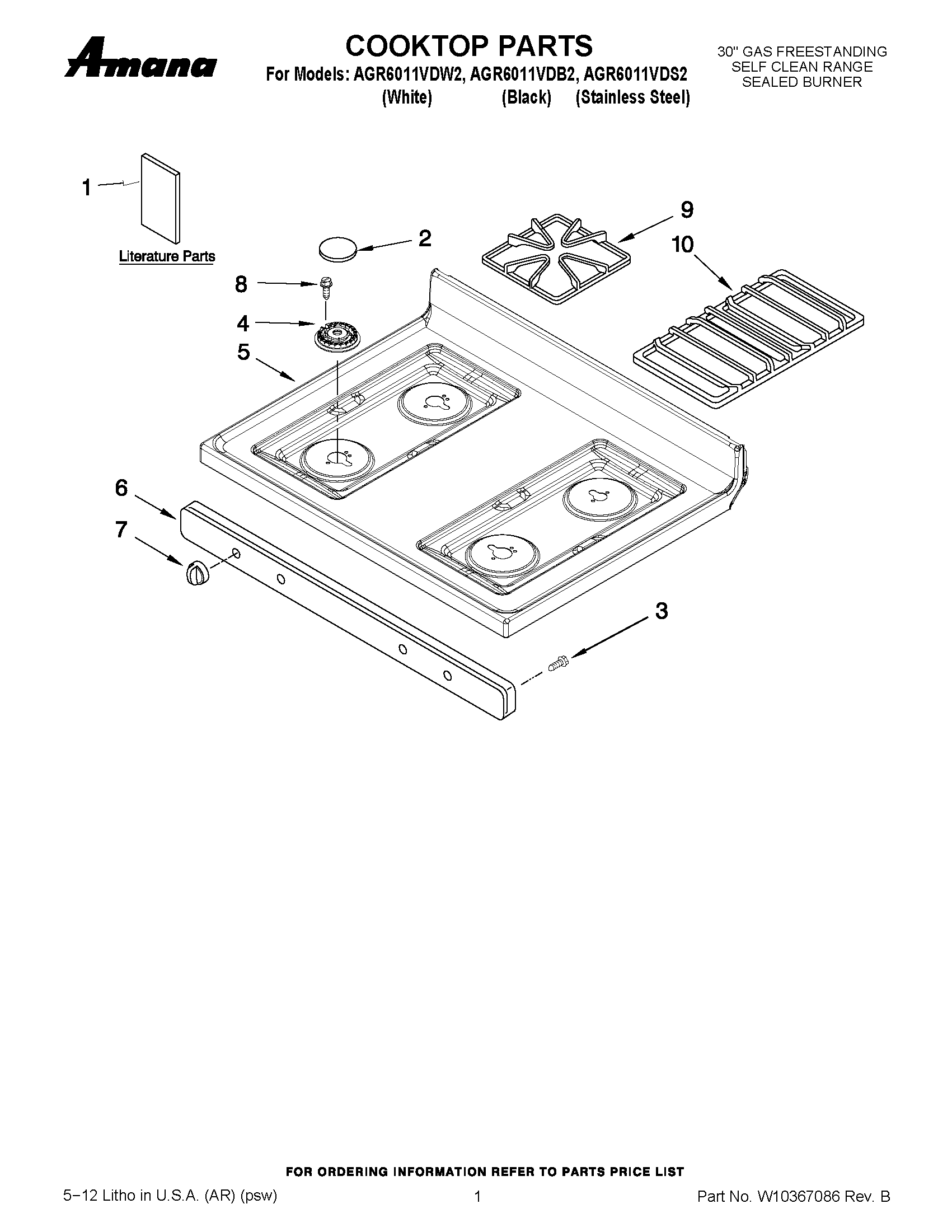

AGR6011VDS2 01 – COOKTOP PARTS

AGR6011VDS2 01 – COOKTOP PARTS

Written by

in

AGR6011VDS2 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10198636
1MAY W10196161
1MAY W10196154
1Template, Anti-Tip (English/French)
1TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
2CAP, BURNER (WETSTONE)
2CAP, BURNER (BLACK)
3MAY 3196557
4MAY W10406283
4HEAD, BURNER (6K) (LEFT REAR)
4HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
5MAY 8272253
5MAY 8272251
6MAY 8523855
6MAY 8523854
7Knob, Control (4) (White)
7Knob, Control (4) (Black)
8SCREW
9GRATE, BURNER (WETSTONE)
9GRATE, BURNER (STALLION BLACK)
10MAY W10165812
10MAY 8522854
