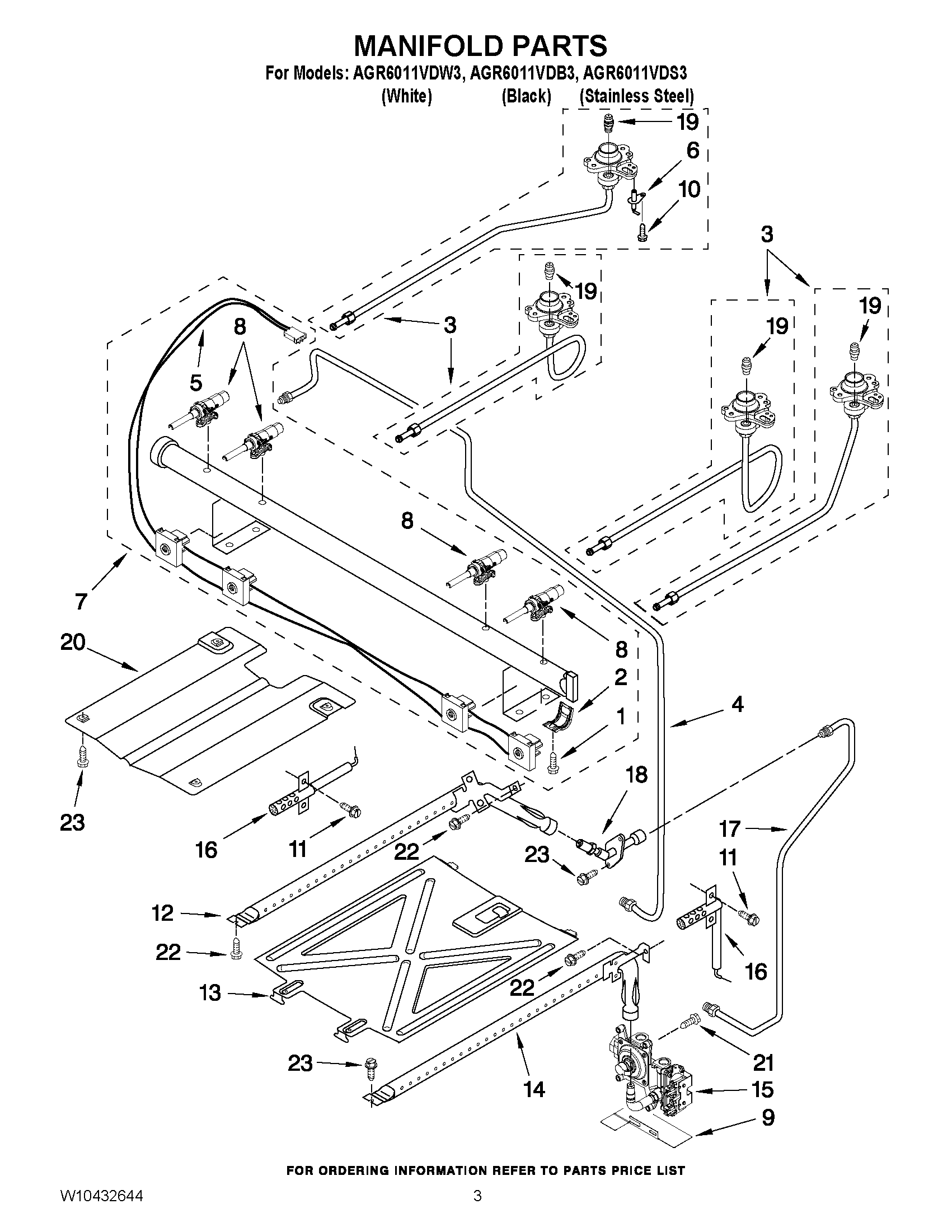

AGR6011VDW3 03 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10407540
1	SCREW, VALVE
2	BRACKET, SADDLE VALVE
3	TUBING, BURNER (W/ORIFICE (RIGHT REAR))
3	Tubing, Burner W/Orifice (Right Front)
3	TUBING, BURNER (W/ORIFICE (LEFT REAR))
3	MAY W10175219
4	TUBING (MANIFOLD TO REGULATOR)
5	MAY W10295998
6	Electrode (4)
7	MAY W10314242
8	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (RIGHT REAR)
9	BRACKET, AEGIS
10	MAY 8273062
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	MAY W10224914
16	Igniter (Broil)
16	ELECTRODE, BAKE
17	TUBE, BROILER SUPPLY
18	MAY W10340259
19	ORIFICE, BURNER (12K) (RIGHT FRONT)
19	ORIFICE, NATURAL (5K) (RIGHT REAR)
19	ORIFICE, NATURAL (9.5K) (LEFT REAR)
20	SPREADER, FLAME (BROILER)
21	SCREW
22	SCREW
23	Screw
