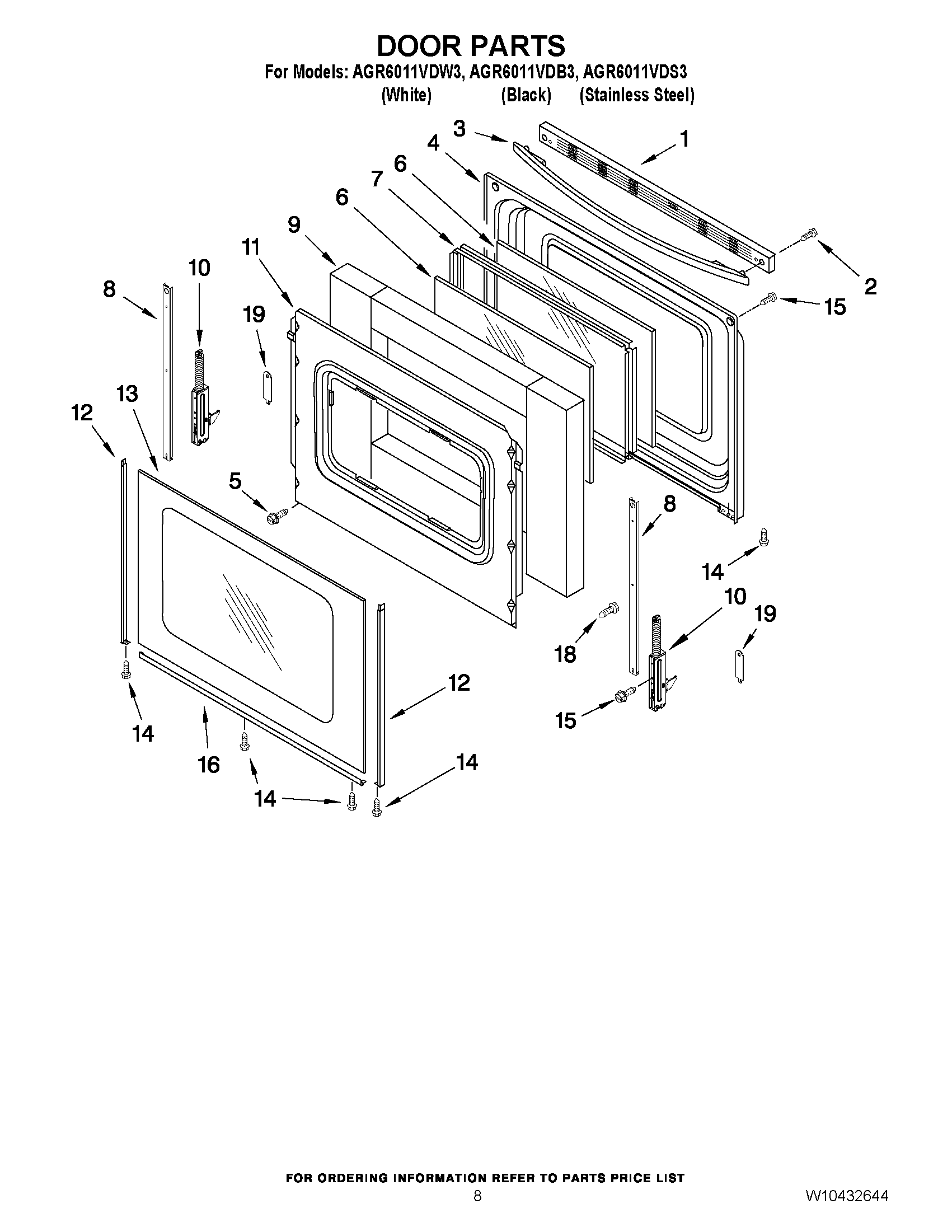

AGR6011VDW3 06 – DOOR PARTS

AGR6011VDW3 06 – DOOR PARTS

Written by

in

AGR6011VDW3 06 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	MAY W10178143
3	MAY W10144888
3	MAY W10144889
3	MAY W10144890
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	FRAME, GLASS
8	STRAP, DOOR
9	INSULATION, DOOR STRIP
10	HINGE, DOOR (PASSIVE)
10	HINGE, ACTIVE (WITH SPRING)
11	RETAINER, INSULATION
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (WHITE (LEFT))
13	GLASS, OUTER (STAINLESS)
13	Glass, Outer (White)
13	Glass, Outer (Black)
14	MAY 3196160
15	SCREW
15	MAY W10031780
16	TRIM, LOWER (BLACK)
16	TRIM, LOWER (WHITE)
18	SCREW
19	Clip,Door Mntg(2)
