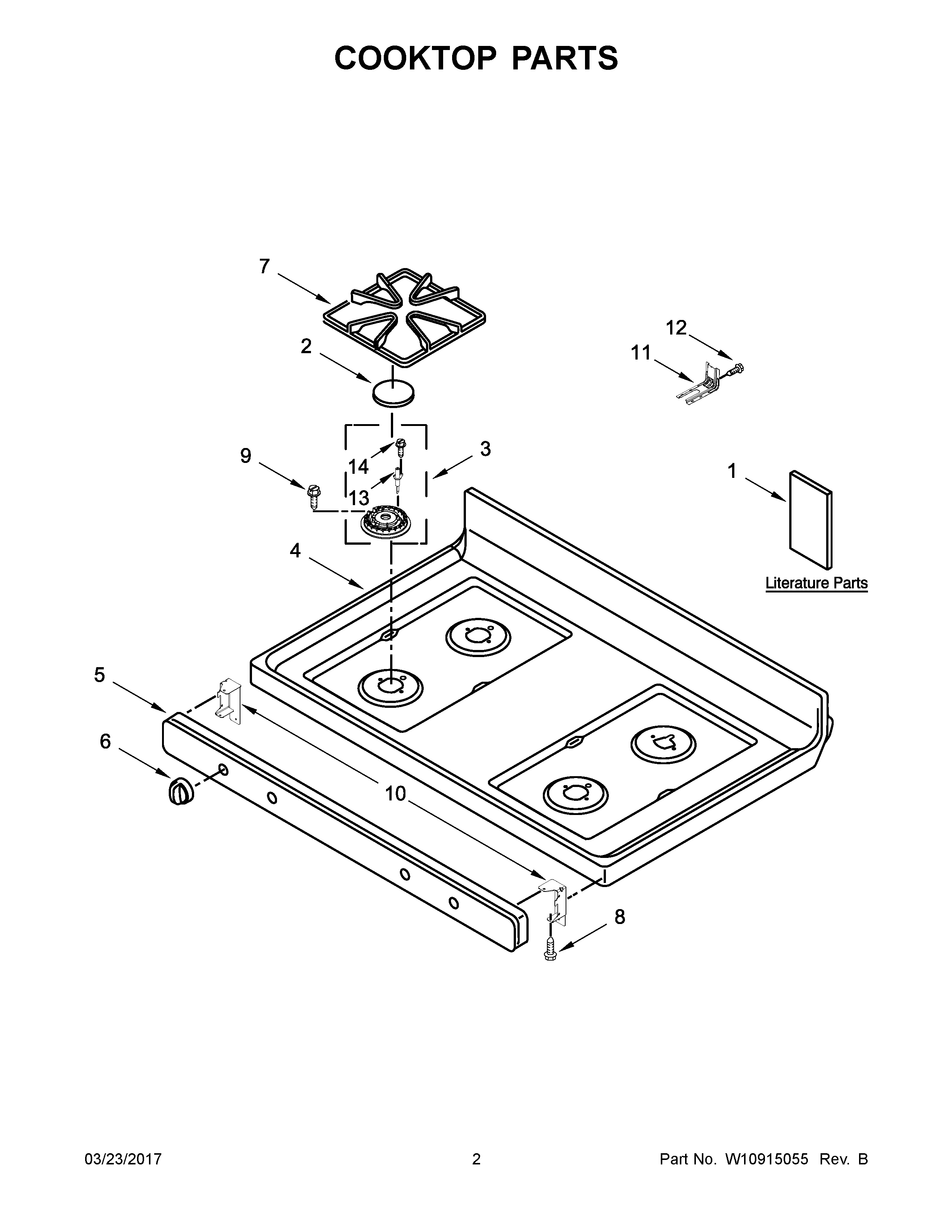

AGR6303MFB0 02 – COOKTOP PARTS

Products

Position	Product
NI	KIT, LP BAKE AND BROIL
NI	CLIP, GAS WIRING
NI	HARNESS, COOKTOP
NI	SPUDS, LP GAS (KIT OF 4)
NI	MAY W10519920
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, BAKE/BROIL
NI	CLIP, WIRE
NI	CLIP, HARNESS
NI	HARNESS, MAIN
NI	SCREW
NI	MAY 7111P017-60
NI	CLIP, WIRE
1	INSTRUCTIONS, INSTALLATION
1D	TIPS, SAFE COOKING (ENGLISH)
1A	GUIDE, USE & CARE
1C	DIAGRAM, WIRING
1B	TECH SHEET
1E	TIPS, SAFE COOKING (FRENCH)
2	SET, BURNER CAP (BLACK)
3	MAY W10515452
3A	ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
3B	ASSEMBLY, BURNER (6K) (RIGHT REAR)
4A	MAY 8272251
4	MAY 8272253
5	MAY 8523855
5A	MAY 8523854
6A	KNOB, CONTROL (WHITE)
6	KNOB, CONTROL (BLACK)
6B	MAY W10844796
7	GRATE KIT (BLACK)
8	SCREW
9	MAY 3196557
10	BRACKET, MANIFOLD
11	BRACKET, ANTI-TIP
12	SCREW, ANTI-TIP KIT
13	ELECTRODE (RIGHT REAR)
14	MAY 8273062
