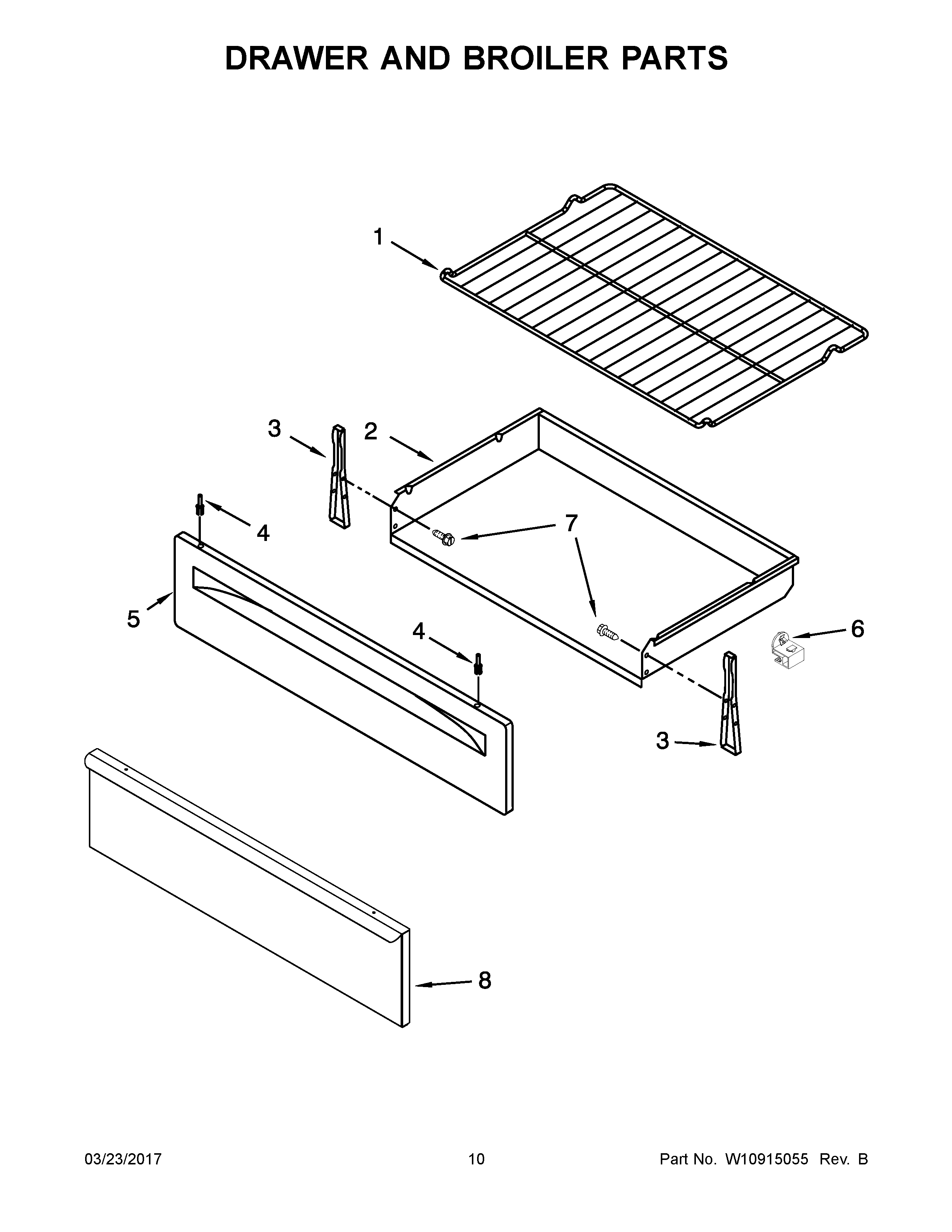

AGR6303MFB0 06 – DRAWER AND BROILER PARTS

Written by

Products

Position	Product
1	RACK, OVEN
2	DRAWER, STORAGE
3A	BRACKET, DRAWER MOUNTING (STAINLESS MODEL)
3	BRACKET, DRAWER MOUNTING (WHITE MODEL)
4A	RIVET, PUSH (WHITE)
4	RIVET, PUSH (BLACK)
5A	PANEL, DRAWER FRONT (WHITE)
5	PANEL, DRAWER (BLACK)
6	GLIDE, DRAWER REAR
7	SCREW
8	PANEL, FRONT (STAINLESS)
