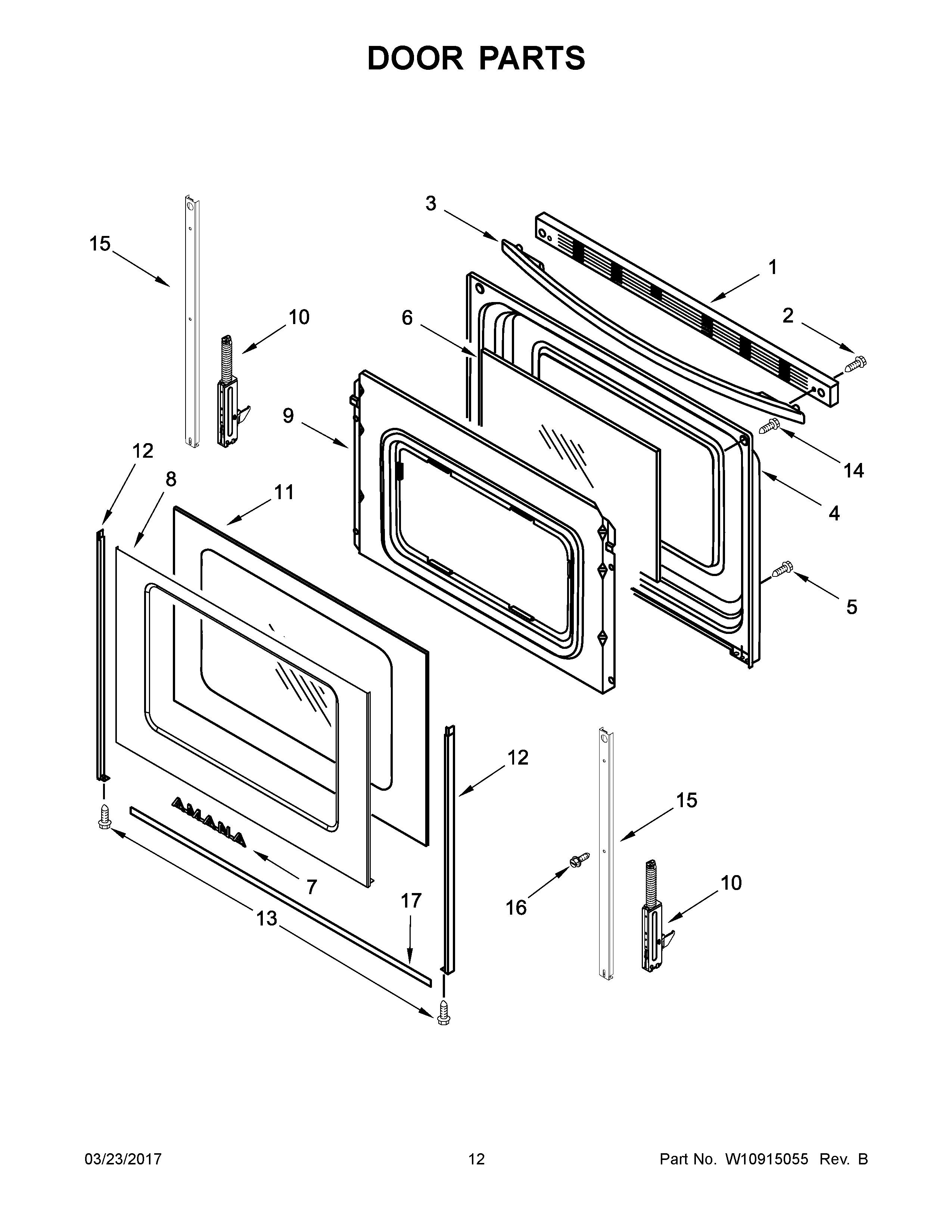

AGR6303MFB0 07 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (BLACK)
3B	HANDLE, DOOR (STAINLESS)
3A	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7B	BADGE (STAINLESS)
7A	BADGE (WHITE)
7	BADGE (BLACK)
8	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
9	RETAINER, INSULATION
10	HINGE, DOOR (PASSIVE)
10B	HINGE, ACTIVE
10A	HINGE, ACTIVE
11A	GLASS, OUTER (WHITE)
11	GLASS, OUTER (BLACK)
12A	TRIM, SIDE (BLACK (RIGHT))
12	TRIM, SIDE (BLACK (LEFT))
12C	TRIM, SIDE (WHITE (RIGHT))
12B	TRIM, SIDE (WHITE (LEFT))
13	SCREW
14	SCREW
15	STRAP, DOOR
16	MAY W10031780
17A	TRIM, LOWER (WHITE)
17	TRIM, LOWER (BLACK)
