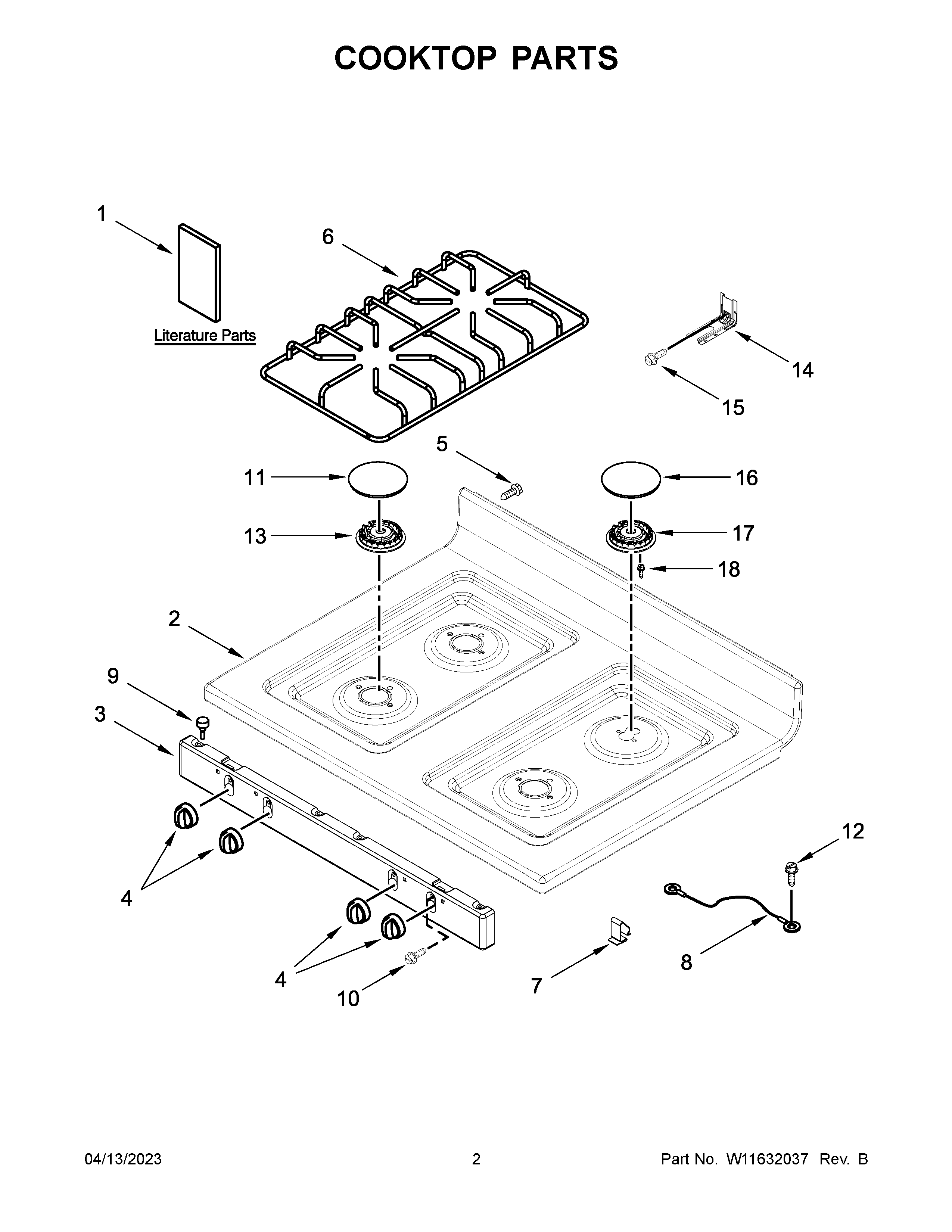

AGR6303MMB0 02 – COOKTOP PARTS

Products

Position	Product
NI	INSULATION, MANIFOLD
NI	CLIP, WIRE
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP3391018 Whirlpool Wire Tie
NI	W11465032 Whirlpool Wire Harness
NI	98015022 Whirlpool Bushing Assembly
1A	OWNERS, MANUAL WIRE, DIAGRAM
1	INSTRUCTIONS, INSTALLATION
2	W11032725 Whirlpool Cooktop
2A	W11032726 Whirlpool Cooktop Assembly
3	PANEL, MANIFOLD (BLACK)
3A	PANEL, MANIFOLD (WHITE)
4	W11620546 Whirlpool Knob
4A	W11620714 Whirlpool Knob
5	WP98007225 Whirlpool Screw Assembly
6	WPW10578251 Whirlpool Burner Grate
7	CLIP, COOKTOP
8	3184020 Whirlpool Oven Wire
9	W10831827 Whirlpool Bumper
10A	SCREW (STAINLESS)
10	WP3400832 Whirlpool Screw
11	WP98017461 Whirlpool Burner Cap
12	W10850756 Whirlpool Screw
13	WPW10636224 Whirlpool Burner Top
14	WPW10613666 Whirlpool Bracket
15	SCREW, ANTI-TIP KIT
16	WPW10169985 Whirlpool Burner Cap
17	WPW10515453 Whirlpool Burner Head
18	WP3368921 Whirlpool Screw
