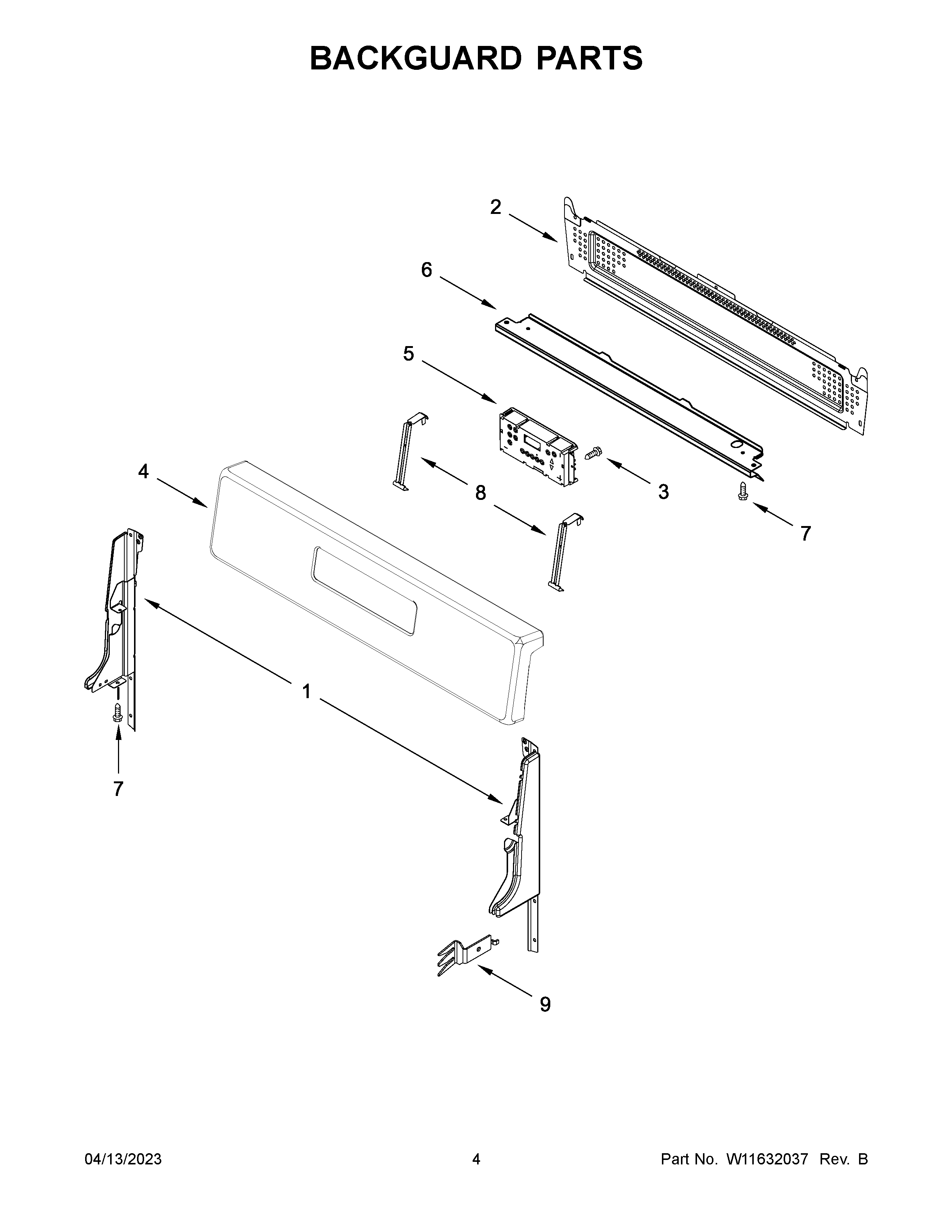

AGR6303MMB0 03 – BACKGUARD PARTS

AGR6303MMB0 03 – BACKGUARD PARTS

Written by

in

AGR6303MMB0 03 – BACKGUARD PARTS

Products

PositionProduct
1W10873109 Whirlpool Endcap Panel
1AW10873441 Whirlpool Panel Endcap
1BW10873107 Whirlpool Panel Endcap
1CW10873438 Whirlpool Endcap Panel
2W10588614 Whirlpool Rear Cover Assembly
3W10850756 Whirlpool Screw
4AW11633120 Whirlpool Control Panel
4PANL-CNTRL
5CNTRL-ELEC
5AW11633126 Whirlpool Console + Core
6W10535746 Whirlpool Deflector
7W10837731 Whirlpool Screw Assembly
8BRACKET, CONTROL
9W10535815 Whirlpool Mounting Bracket
