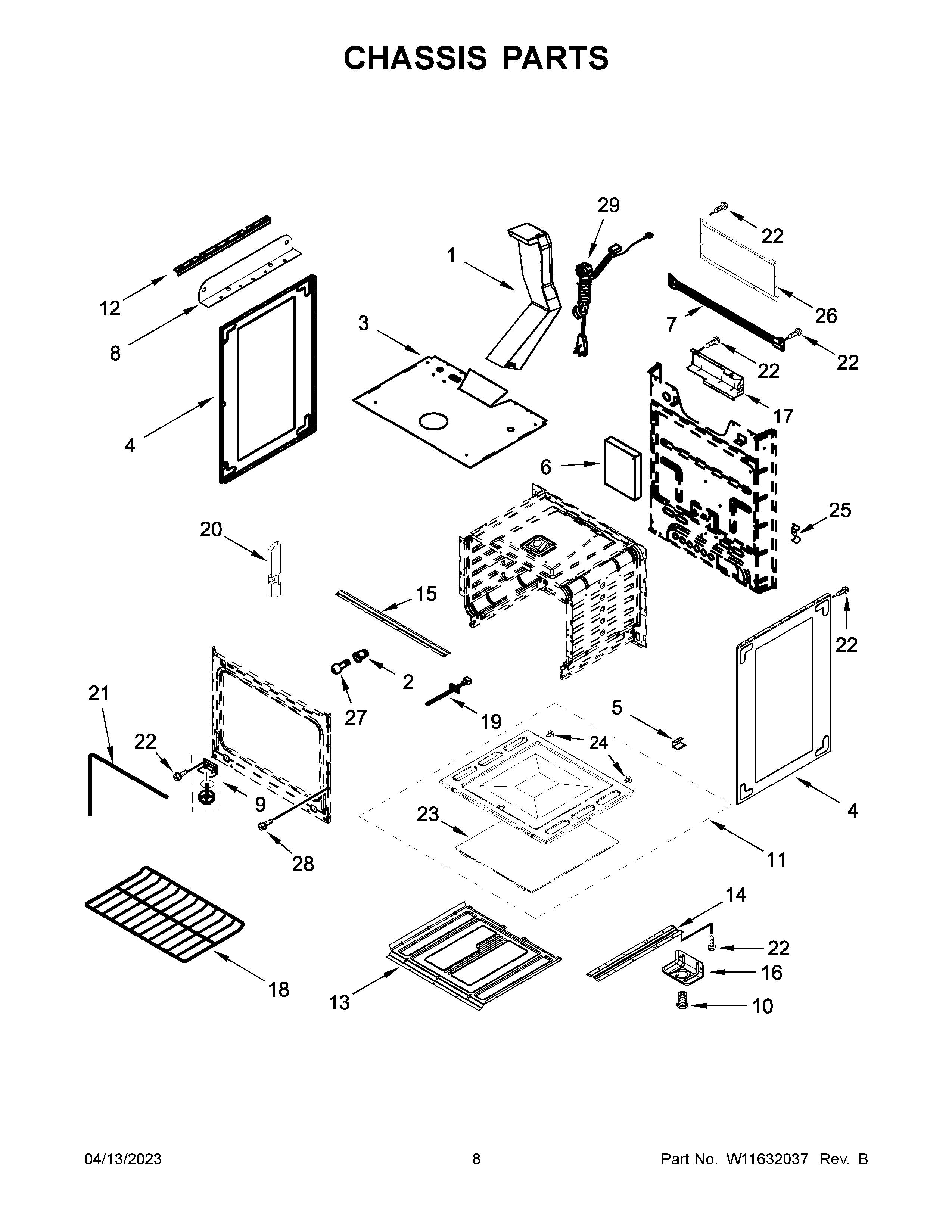

AGR6303MMB0 05 – CHASSIS PARTS

Products

Position	Product
NI	W11688850 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688783 Whirlpool Insulation Assembly
NI	W11506534 Whirlpool Insulation
NI	INSULATION
NI	W10537475 Whirlpool Insulation
NI	98004294 Whirlpool Insulation Wire
1	BOX, FLUE
2	W10856866 Whirlpool Light Socket
3	SHIELD, INSULATION
4C	W10816996 Whirlpool Side Panel
4A	W10816993 Whirlpool Side Panel
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT (BLACK AND WHITE MODELS)
7	98015363 Whirlpool Oven Support
8	SIDE PANEL, SUPPORT
9	W10819918 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	W11098799 Whirlpool Oven Bottom Assembly
12	W10577312 Whirlpool Brace Panel
13	W10670197 Whirlpool Microwave Bottom Baffle
14	W10520269 Whirlpool Base Rail
15	W10545322 Whirlpool Support
16	BRACKET, FOOT
17	W10549293 Whirlpool Access Cover
18	WPW10550642 Whirlpool Oven Rack
19	WPW10181986 Whirlpool Oven Sensor
20	W11161898 Whirlpool Hinge Receiver
21	GASKT-DOOR RANGE
22	W10837731 Whirlpool Screw Assembly
23	W11688713 Whirlpool Burner Baffle
24	WP3400832 Whirlpool Screw
25	CLIP, TUBING
26	COVER
27	W10888179 Whirlpool Light Bulb Assembly
28	WP98008545 Whirlpool Screw
29	W11173616 Whirlpool Power Cord
