AGR6303MMS0 02 – COOKTOP PARTS
Written by
in

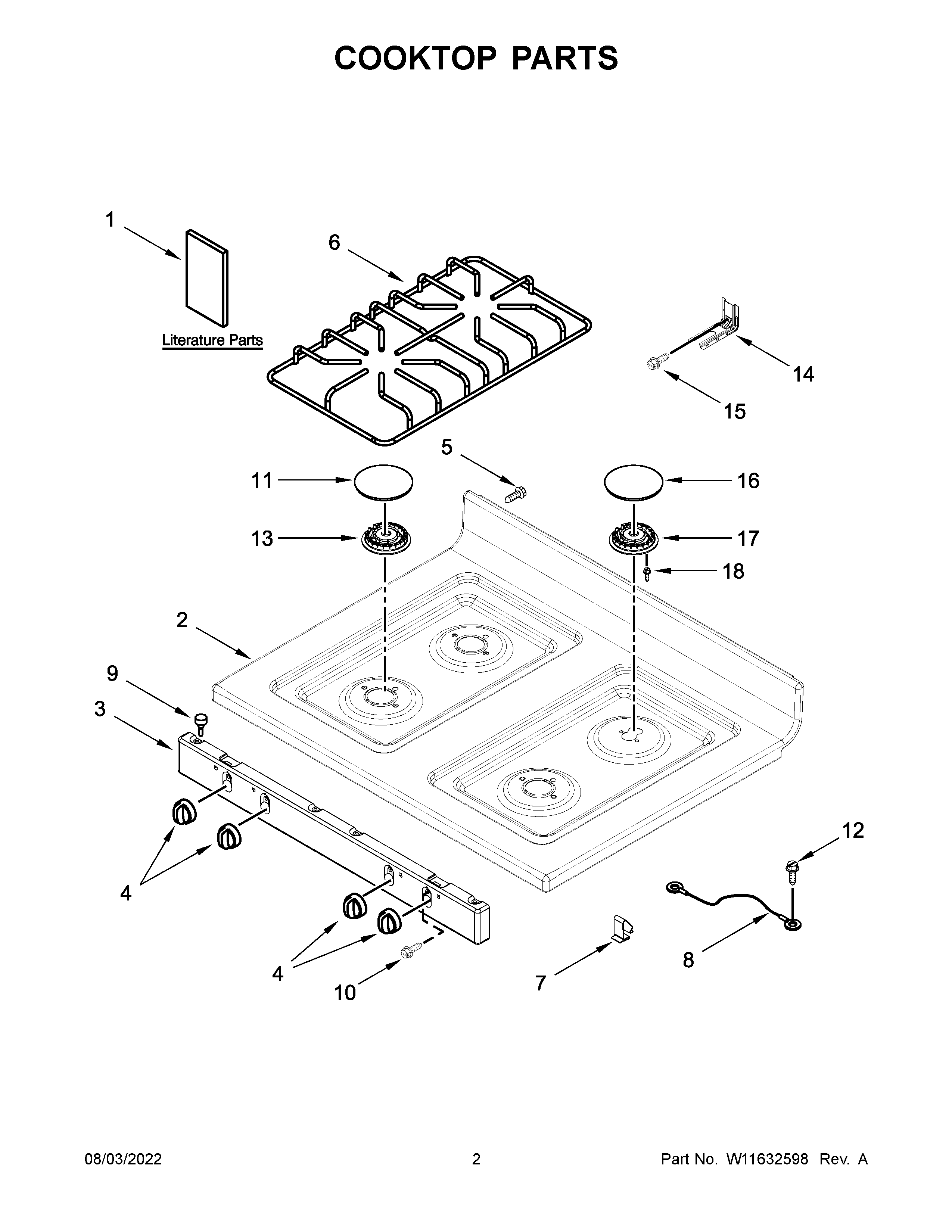

AGR6303MMS0 02 – COOKTOP PARTS
Products
Position
Product
NI
98015022 Whirlpool Bushing Assembly
NI
INSULATION, MANIFOLD
NI
CABINET (NOT A SERVICEABLE PART)
NI
CLIP, WIRE
NI
WP3391018 Whirlpool Wire Tie
NI
W11465032 Whirlpool Wire Harness
1A
OWNERS, MANUAL WIRE, DIAGRAM
1
INSTRUCTIONS, INSTALLATION
1B
SHEET, TECH
2
W11032725 Whirlpool Cooktop
3
PANEL, MANIFOLD (BLACK)
4
W11620546 Whirlpool Knob
5
WP98007225 Whirlpool Screw Assembly
6
WPW10578251 Whirlpool Burner Grate
7
CLIP, COOKTOP
8
3184020 Whirlpool Oven Wire
9
W10831827 Whirlpool Bumper
10
WP3400832 Whirlpool Screw
11
WP98017461 Whirlpool Burner Cap
12
W10850756 Whirlpool Screw
13
WPW10636224 Whirlpool Burner Top
14
WPW10613666 Whirlpool Bracket
15
SCREW, ANTI-TIP KIT
16
WPW10169985 Whirlpool Burner Cap
17
WPW10515453 Whirlpool Burner Head
18
WP3368921 Whirlpool Screw
←
