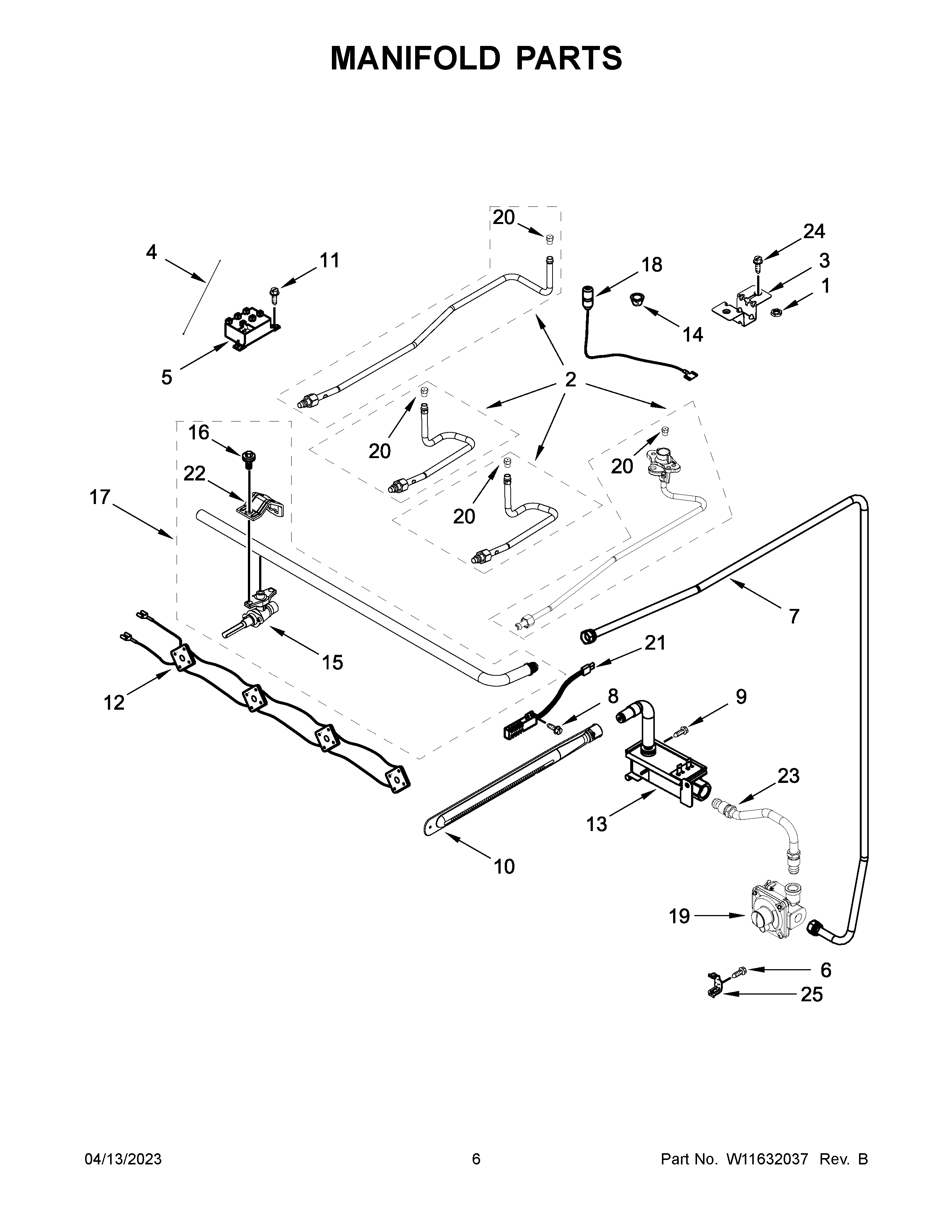

AGR6303MMW0 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11620541 Whirlpool Orifice Spud
1	W10610297 Whirlpool Nut
2	W11550283 Whirlpool Venturi
2A	W11213836 Whirlpool Venturi
2B	W10861724 Whirlpool Venturi
2C	W11167099 Whirlpool Orifice Holder
3	W11715913 Whirlpool Mounting Bracket
4	W10622750 Whirlpool Wire Harness
5	W11590249 Whirlpool Spark Module
6	WP98007225 Whirlpool Screw Assembly
7	W11628651 Whirlpool Gas Tubing
8	W11676351 Whirlpool Screw
9	98013634 Whirlpool Oven Screw
10	W11220387 Whirlpool Oven Burner
11	W10837731 Whirlpool Screw Assembly
12	W11620523 Whirlpool Wire Harness
13	WP98014893 Whirlpool Gas Safety Valve Assembly
14	WPW10278150 Whirlpool Clip Assembly
15	W11620515 Whirlpool Burner Valve
15A	W11620105 Whirlpool Gas Valve
15B	W11509769 Whirlpool Burner Valve
16	98017517 Whirlpool Oven Screw
17	PIPE-MNFLD
18	WPW10209656 Whirlpool Surface Ignitor
18A	WPW10209657 Whirlpool Oven Surface Igniter
19	W11346659 Whirlpool Regulator
20	WP98017349 Whirlpool Orifice
20A	WP98017348 Whirlpool Orifice
20B	WPW10170506 Whirlpool Orifice Spud
21	IGNTR-OVEN
22	W10574737 Whirlpool Mounting Bracket
23	W11684515 Whirlpool Range Gas Tubing
24	W10837674 Whirlpool Screw
25	98007410 Whirlpool Oven Mounting Bracket
