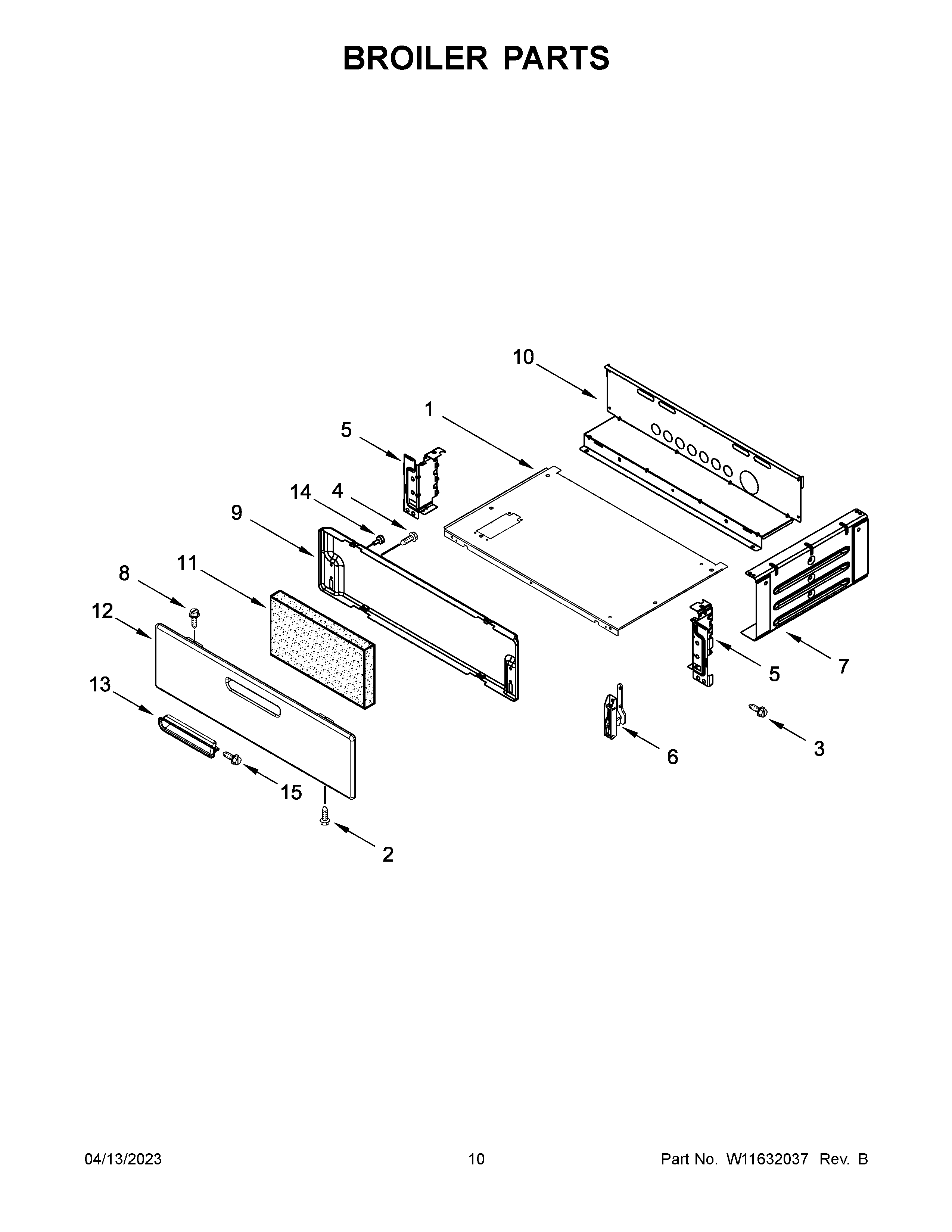

AGR6303MMW0 06 – BROILER PARTS

AGR6303MMW0 06 – BROILER PARTS

Written by

in

AGR6303MMW0 06 – BROILER PARTS

Products

PositionProduct
1BAFFLE, BASE
2SCREW
3WP98008545 Whirlpool Screw
4W10155121 Whirlpool Screw
5AW10624275 Whirlpool Support
5W10624273 Whirlpool Support
6W10647966 Whirlpool Door Hinge Assembly
7PANEL, SIDE
8WP3400832 Whirlpool Screw
9W10446851 Whirlpool Door Liner
10W10682676 Whirlpool Back Liner
11W11706803 Whirlpool Appliance Insulation
12W10874825 Whirlpool Drawer Panel
12AW11099211 Whirlpool Drawer Panel
13AW10498563 Whirlpool Door Handle
13W10535809 Whirlpool Door Handle
14BUMPER, DOOR
15WP59002061 Whirlpool Microwave Screw
