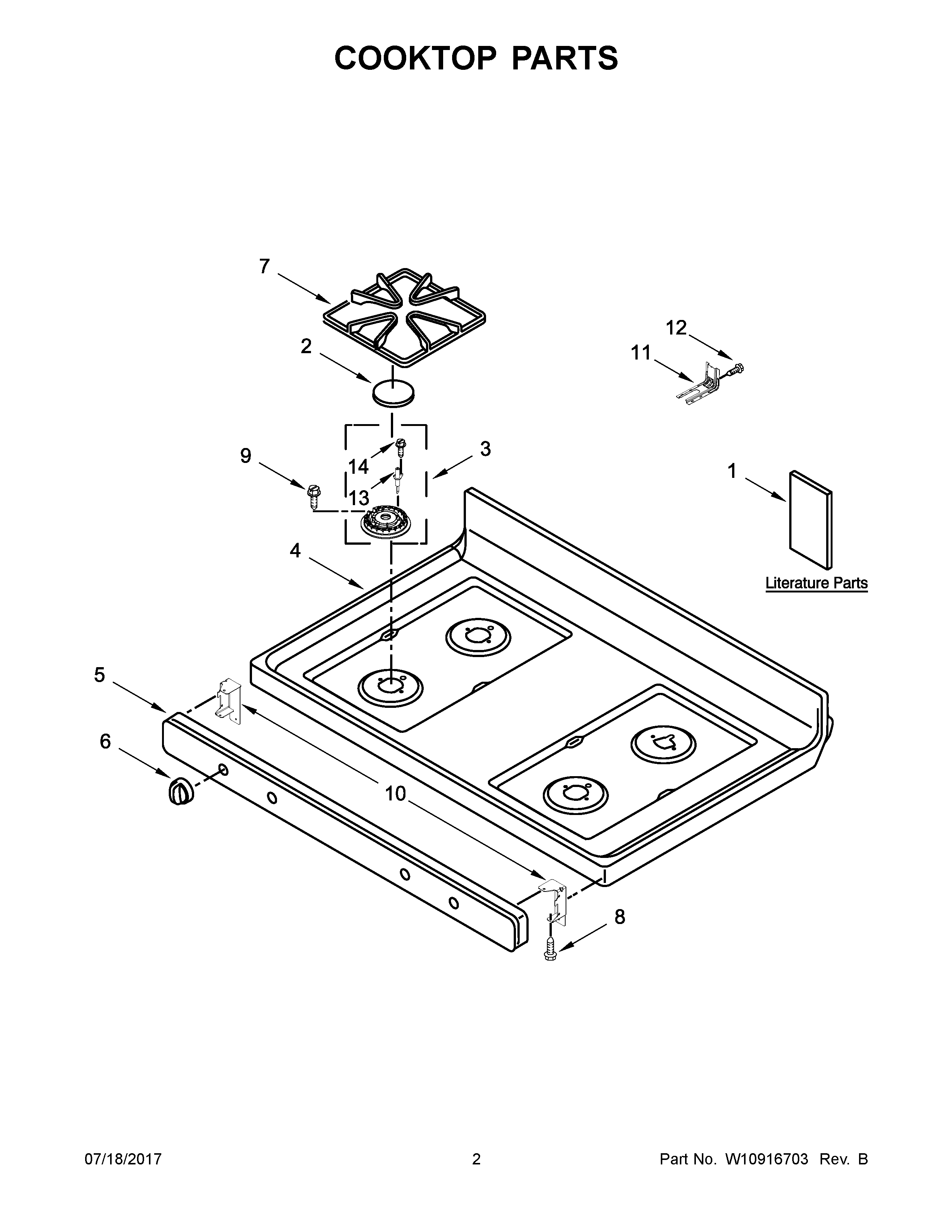

AGR6603SFB0 02 – COOKTOP PARTS

AGR6603SFB0 02 – COOKTOP PARTS

Written by

in

AGR6603SFB0 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, COOKTOP
NIHARNESS, BAKE/BROIL
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NICLIP, WIRE
NICLIP, HARNESS
NICLIP, WIRE
NIMAY 7111P017-60
NICLIP, GAS WIRING
1INSTRUCTIONS, INSTALLATION
1BTECH SHEET
1DTIPS, SAFE COOKING (ENGLISH)
1CWIRING DIAGRAM
1AGUIDE, USE & CARE
1ETIPS, SAFE COOKING (FRENCH)
2SET, BURNER CAP (BLACK)
3BASSEMBLY, BURNER (6K) (RIGHT REAR)
3AASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
3MAY W10515452
4MAY 8272253
4AMAY 8272251
5MAY 8523855
5AMAY 8523854
6BMAY W10844796
6AKNOB, CONTROL (WHITE)
6KNOB, CONTROL (BLACK)
7GRATE KIT (BLACK)
8SCREW
9MAY 3196557
10BRACKET, MANIFOLD
11BRACKET, ANTI-TIP
12SCREW, ANTI-TIP KIT
13ELECTRODE (RIGHT REAR)
14MAY 8273062
