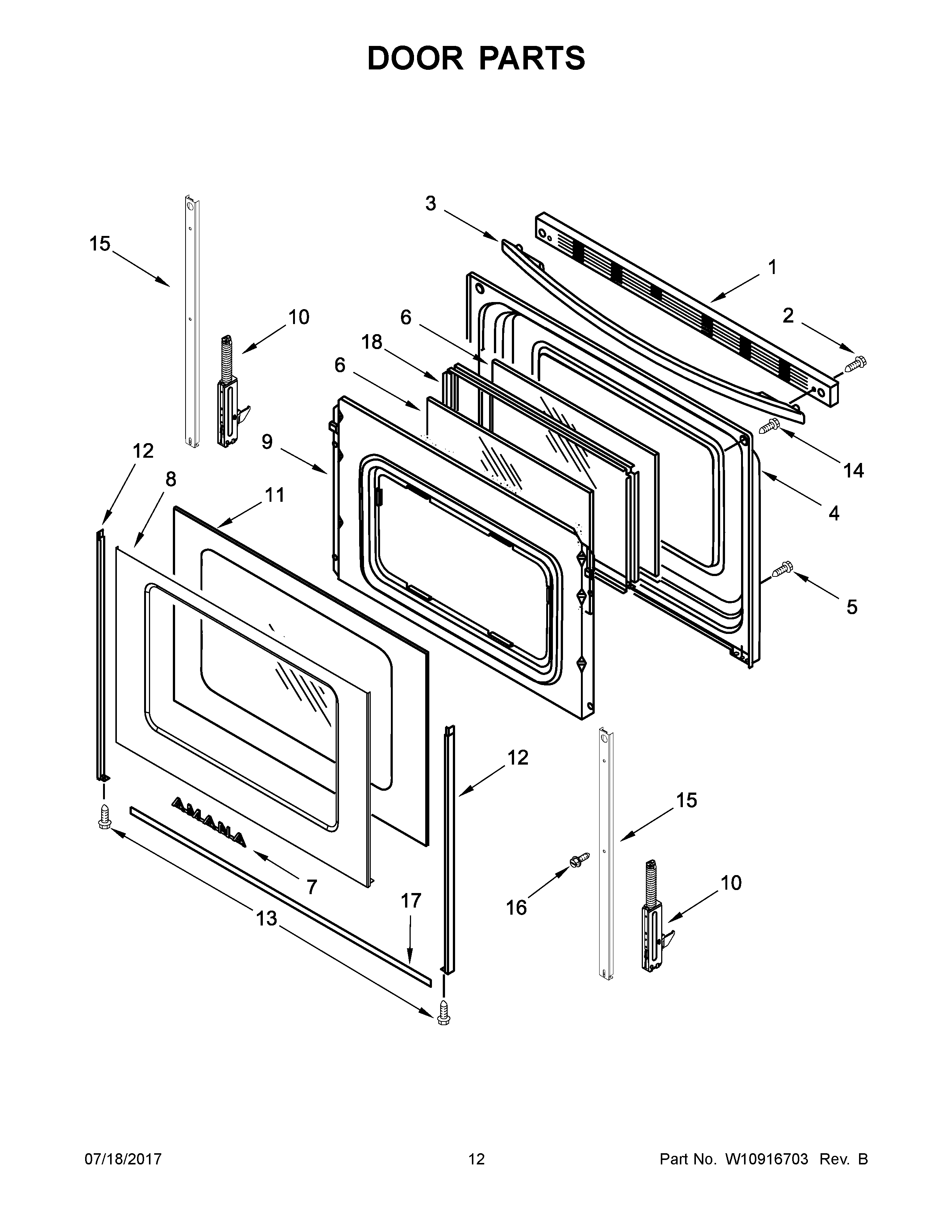

AGR6603SFB0 07 – DOOR PARTS

Products

Position	Product
1A	TRIM, TOP (WHITE)
1	TRIM, TOP (BLACK)
2	SCREW
3A	HANDLE, DOOR (WHITE)
3	HANDLE, DOOR (BLACK)
3B	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	BADGE (BLACK)
7B	BADGE (WHITE)
7A	BADGE (STAINLESS)
8	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
9	RETAINER, INSULATION
10A	HINGE, ACTIVE (WITH SPRING)
10	HINGE, DOOR (PASSIVE)
11A	GLASS, OUTER (WHITE)
11	GLASS, OUTER (BLACK)
12A	TRIM, SIDE (BLACK (RIGHT))
12	TRIM, SIDE (BLACK (LEFT))
12B	TRIM, SIDE (WHITE (LEFT))
12C	TRIM, SIDE (WHITE (RIGHT))
13	SCREW
14	SCREW
15	STRAP, DOOR
16	MAY W10031780
17A	TRIM, LOWER (WHITE)
17	TRIM, LOWER (BLACK)
18	FRAME, GLASS
