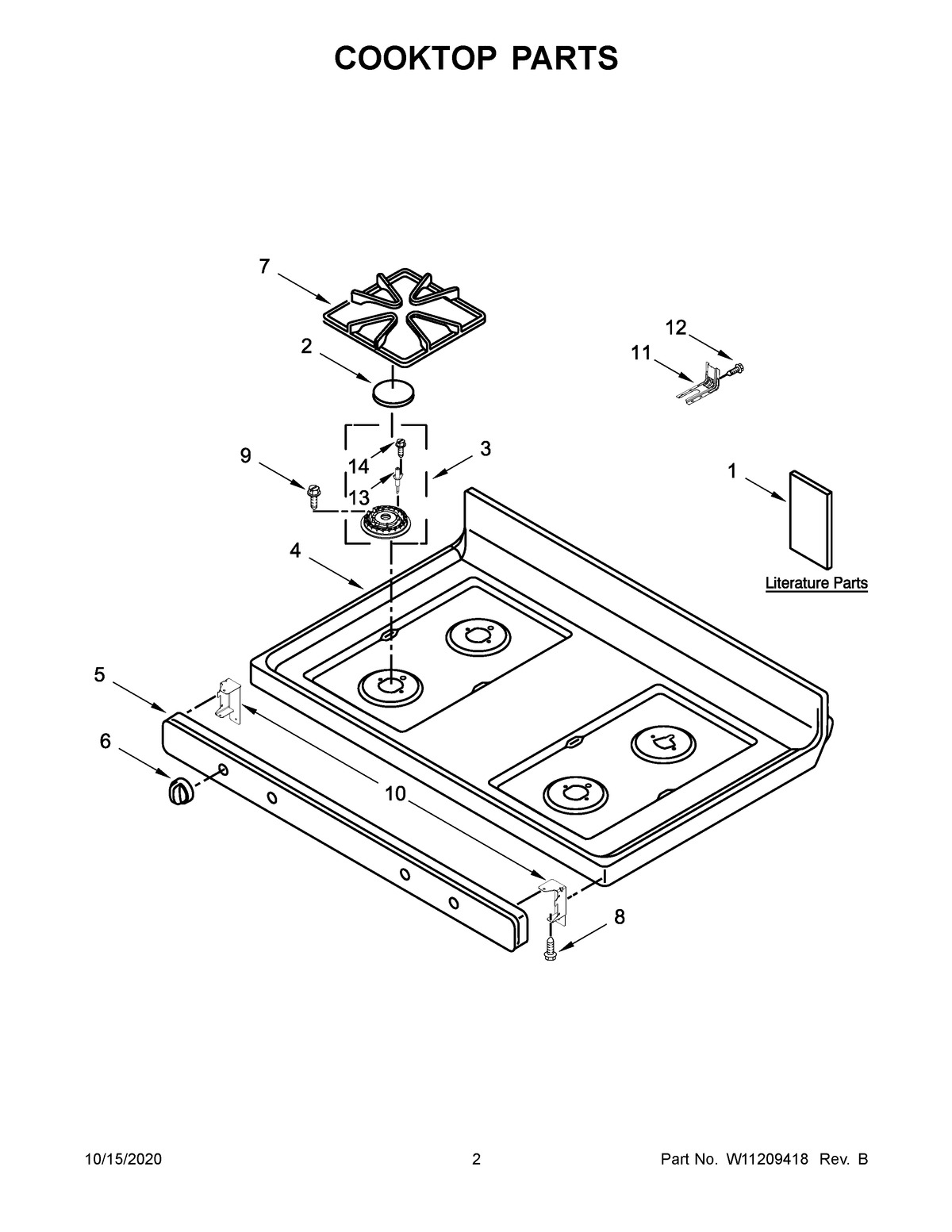

AGR6603SFB1 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, BAKE/BROIL
NI	CLIP, GAS WIRING
NI	HARNESS, COOKTOP
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	CLIP, WIRE
NI	CLIP, HARNESS
NI	CLIP, WIRE
NI	MAY 7111P017-60
1	INSTALLATION INSTRUCTIONS
1A	GUIDE, USE & CARE
1B	TECH SHEET
1C	WIRING DIAGRAM
2	CAP, BURNER LEFT FRONT (BLACK)
3B	ASSEMBLY, BURNER (6K) (RIGHT REAR)
3A	ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
3	ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
4	COOKTOP (BLACK)
4A	COOKTOP (WHITE)
5A	MAY 8523854
5	MAY 8523855
6A	KNOB, CONTROL (WHITE)
6	KNOB, CONTROL (BLACK)
7	GRATE KIT (BLACK)
8	SCREW
9	MAY 3196557
10	BRACKET, MANIFOLD
11	ANTI-TIP BRACKET
12	SCREW, ANTI-TIP KIT
13A	ELECTRODE (RIGHT REAR)
13	ELECTRODE (LEFT FRONT, LEFT REAR, RIGHT FRONT) (CENTER)
14	MAY 8273062
