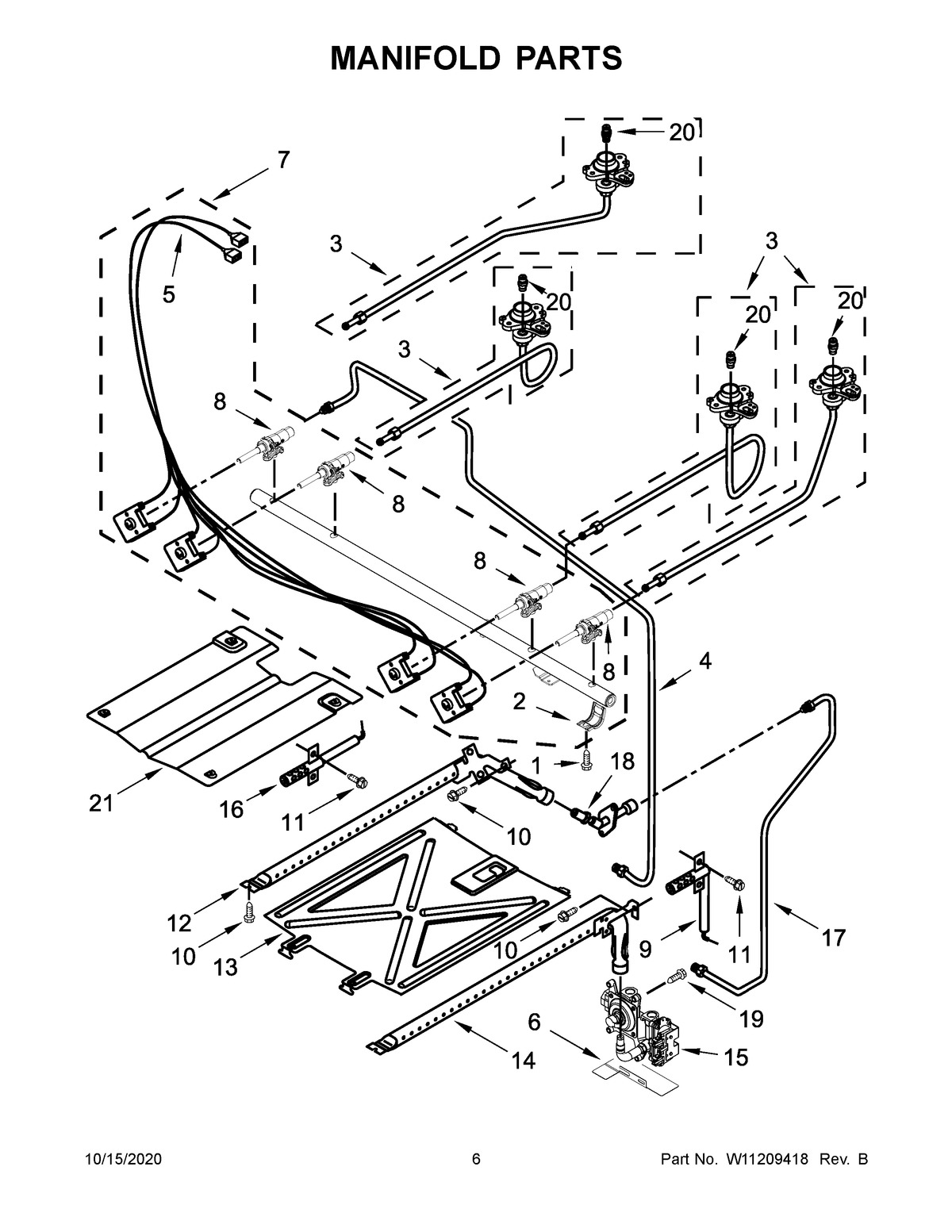

AGR6603SFB1 04 – MANIFOLD PARTS

Products

Position	Product
NI	ORIFICE, LP BAKE
NI	SPUDS, LP GAS (KIT OF 4)
NI	ORIFICE, LP BROIL
NI	KIT, LP BAKE AND BROIL
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	BRACKET, SADDLE VALVE
3	ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
3C	MAY W10474163
3A	MAY W10473929
3B	ASSEMBLY, ORIFICE HOLDER (RIGHT FRONT)
4	TUBING (MANIFOLD TO REGULATOR)
5	MAY W10812380
6	BRACKET, AEGIS
7	MAY W10812382
8A	VALVE, GAS (RIGHT REAR)
8	VALVE, GAS (LEFT REAR)
8B	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
9	ELECTRODE, BAKE
10	SCREW
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	REGULATOR
16	ELECTRODE, BROIL
17	TUBE, BROILER SUPPLY
18	FITTING, BROILER
19	SCREW
20	ORIFICE, BURNER (LEFT FRONT)
20B	ORIFICE, NATURAL (5K) (RIGHT REAR)
20A	ORIFICE, NATURAL (9.5K) (LEFT REAR)
21	SPREADER, FLAME (BROILER)
