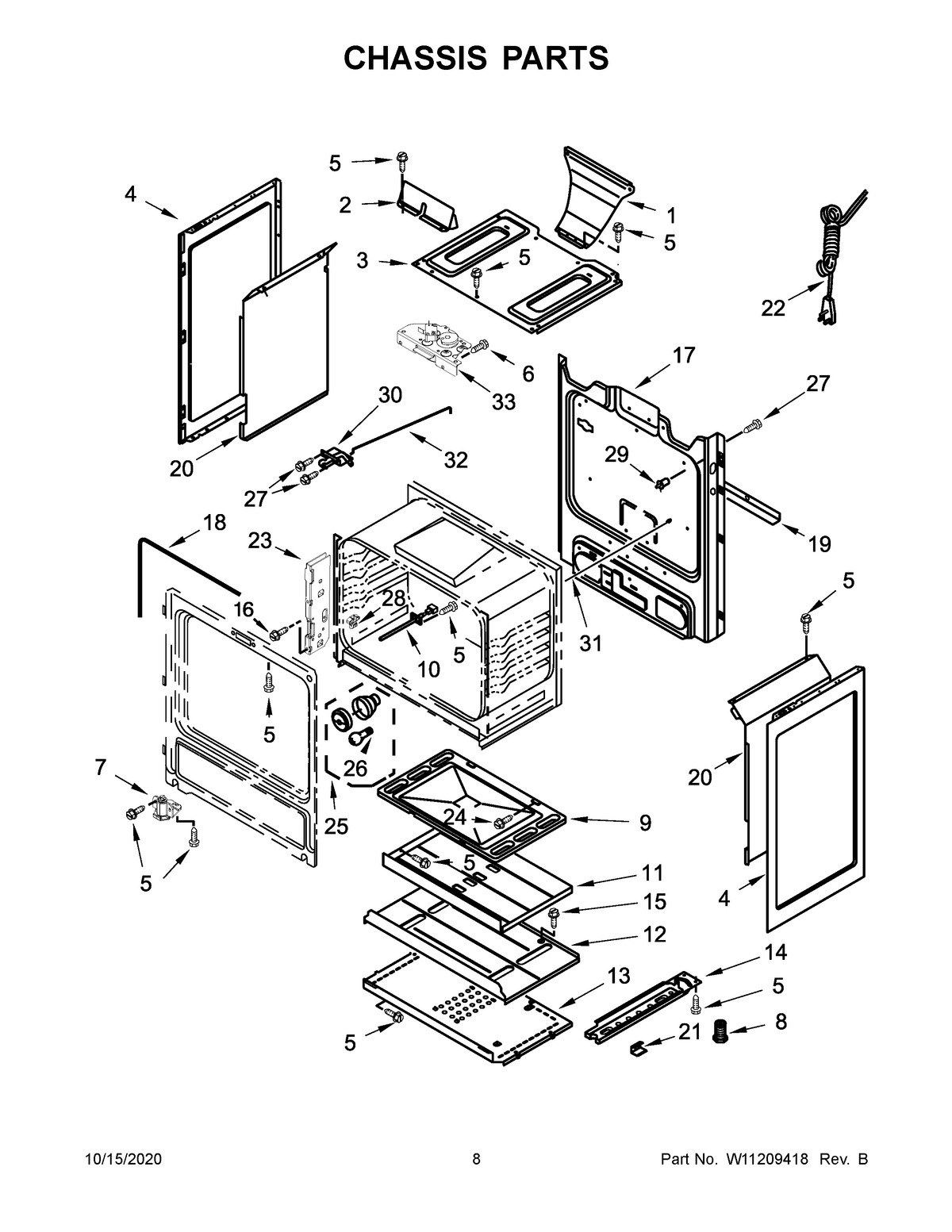

AGR6603SFB1 05 – CHASSIS PARTS

AGR6603SFB1 05 – CHASSIS PARTS

Written by

in

AGR6603SFB1 05 – CHASSIS PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIINSULATION, BACK
NIINSULATION, WRAP
1BOX, FLUE
2SHIELD, FLUE
3BOX-BURNER, GAS SEALED
4APANEL, SIDE (WHITE)
4PANEL, SIDE (BLACK)
5SCREW
6SCREW
7ASSEMBLY, FRONT FOOT
8FOOT, LEVELING
9BOTTOM, OVEN
10MAY W10586204
11BAFFLE, BURNER OVEN
12SHIELD, HEAT
13SHIELD, LOWER
14ASSEMBLY, BASE RAIL (LEFT)
14AASSEMBLY, BASE RAIL (RIGHT)
15MAY W10362924
16MAY W10031780
17BACK, MAIN
18SEAL, DOOR
19BRACE, MAIN BACK
20MAY 9761449
20AMAY 9761448
21CLIP, PANEL
22CORD, POWER
23RECEIVER, HINGE
24SCREW
25MAY W11175594
26BULB, HALOGEN 40 WATTS
27SCREW
28GLIDE, DRAWER FRONT
29SWITCH, DOOR
30ASSEMBLY, DOOR LATCH (FRONT)
31ROD, DOOR SWITCH
32ROD, PUSH LATCH
33ASSEMBLY, DOOR LATCH (REAR)
