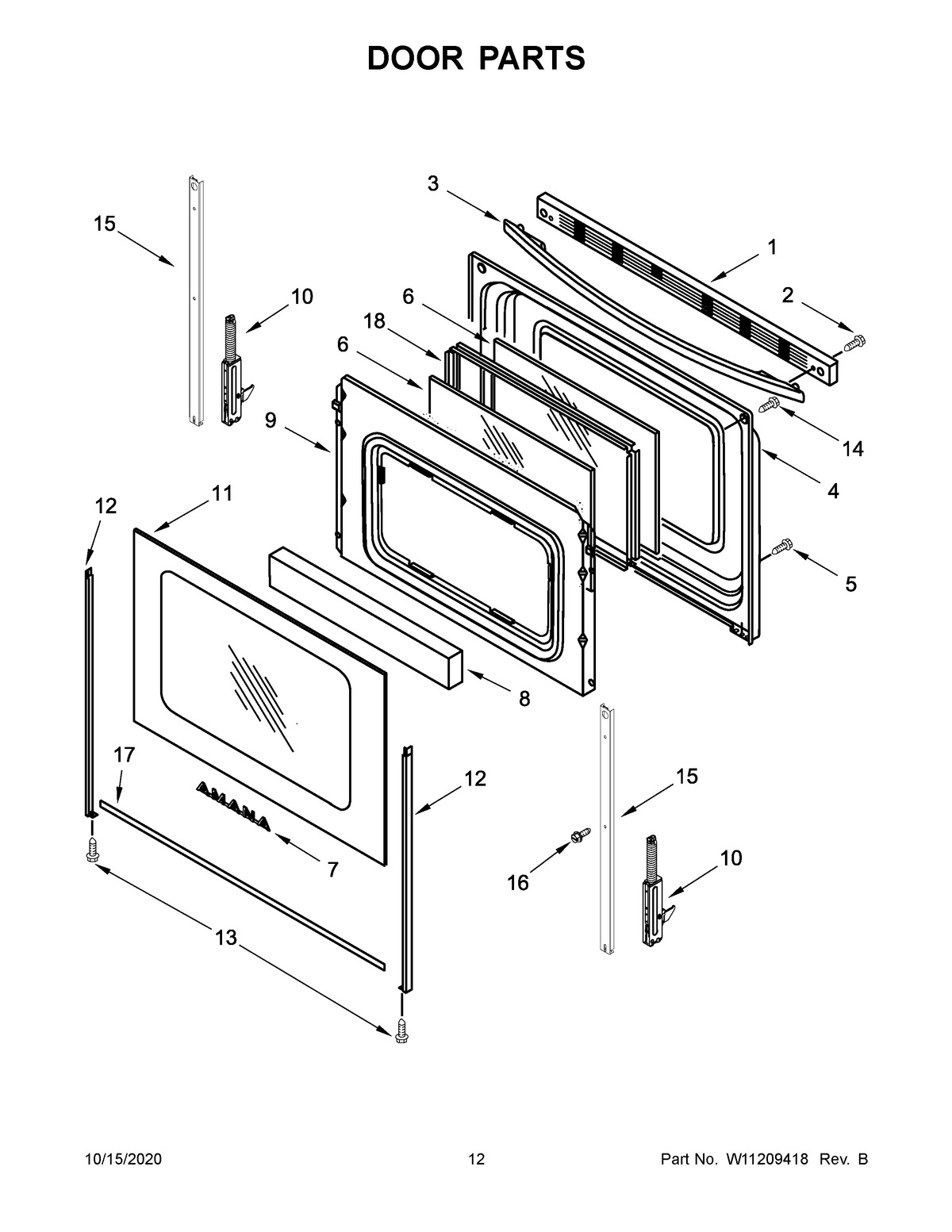

AGR6603SFB1 07 – DOOR PARTS

AGR6603SFB1 07 – DOOR PARTS

Written by

in

AGR6603SFB1 07 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1ATRIM, TOP (WHITE)
2SCREW
3AHANDLE, DOOR (WHITE)
3HANDLE, DOOR (BLACK)
4LINER, DOOR
5SCREW
6GLASS, INNER
7BADGE (BLACK)
7ABADGE (WHITE)
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10AHINGE, ACTIVE
10HINGE, DOOR (PASSIVE)
11GLASS, OUTER (BLACK)
11AGLASS, OUTER (WHITE)
12BTRIM, SIDE (WHITE (LEFT))
12ATRIM, SIDE (BLACK (RIGHT))
12TRIM, SIDE (BLACK (LEFT))
12CTRIM, SIDE (WHITE (RIGHT))
13SCREW
14SCREW
15DOOR STRAP
16MAY W10031780
17ATRIM, LOWER (WHITE)
17TRIM, LOWER (BLACK)
18FRAME, GLASS
