AGR6603SFB2 07 – DOOR PARTS

AGR6603SFB2 07 – DOOR PARTS

Written by

in

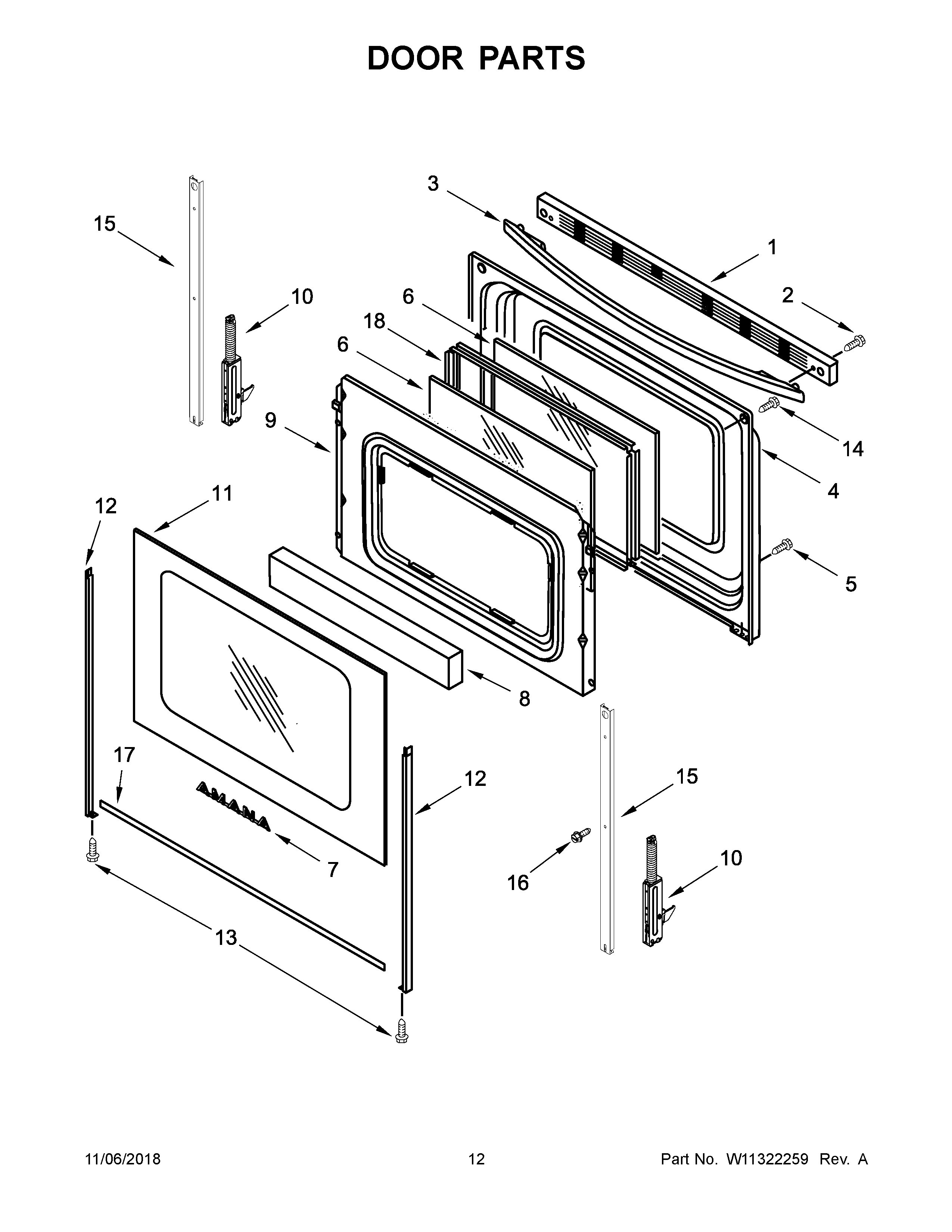

AGR6603SFB2 07 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3A	HANDLE, DOOR (WHITE)
3	HANDLE, DOOR (BLACK)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	BADGE (BLACK)
7A	BADGE (WHITE)
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10A	HINGE, ACTIVE
10	HINGE, DOOR (PASSIVE)
11	GLASS, OUTER (BLACK)
11A	GLASS, OUTER (WHITE)
12B	TRIM, SIDE (WHITE (LEFT))
12C	TRIM, SIDE (WHITE (RIGHT))
12A	TRIM, SIDE (BLACK (RIGHT))
12	TRIM, SIDE (BLACK (LEFT))
13	SCREW
14	SCREW
15	STRAP, DOOR
16	MAY W10031780
17A	TRIM, LOWER (WHITE)
17	TRIM, LOWER (BLACK)
18	FRAME, GLASS
